WAGO I/O-SYSTEM 750 User Manual

WAGO-I/O-SYSTEM 750 Device Description 43
750-8208 PFC200 CS 2ETH RS CAN DPM
Manual
Version 1.1.0, valid from FW Version 02.06.20(09)
3.4.2 Fieldbus/System Indicating Elements

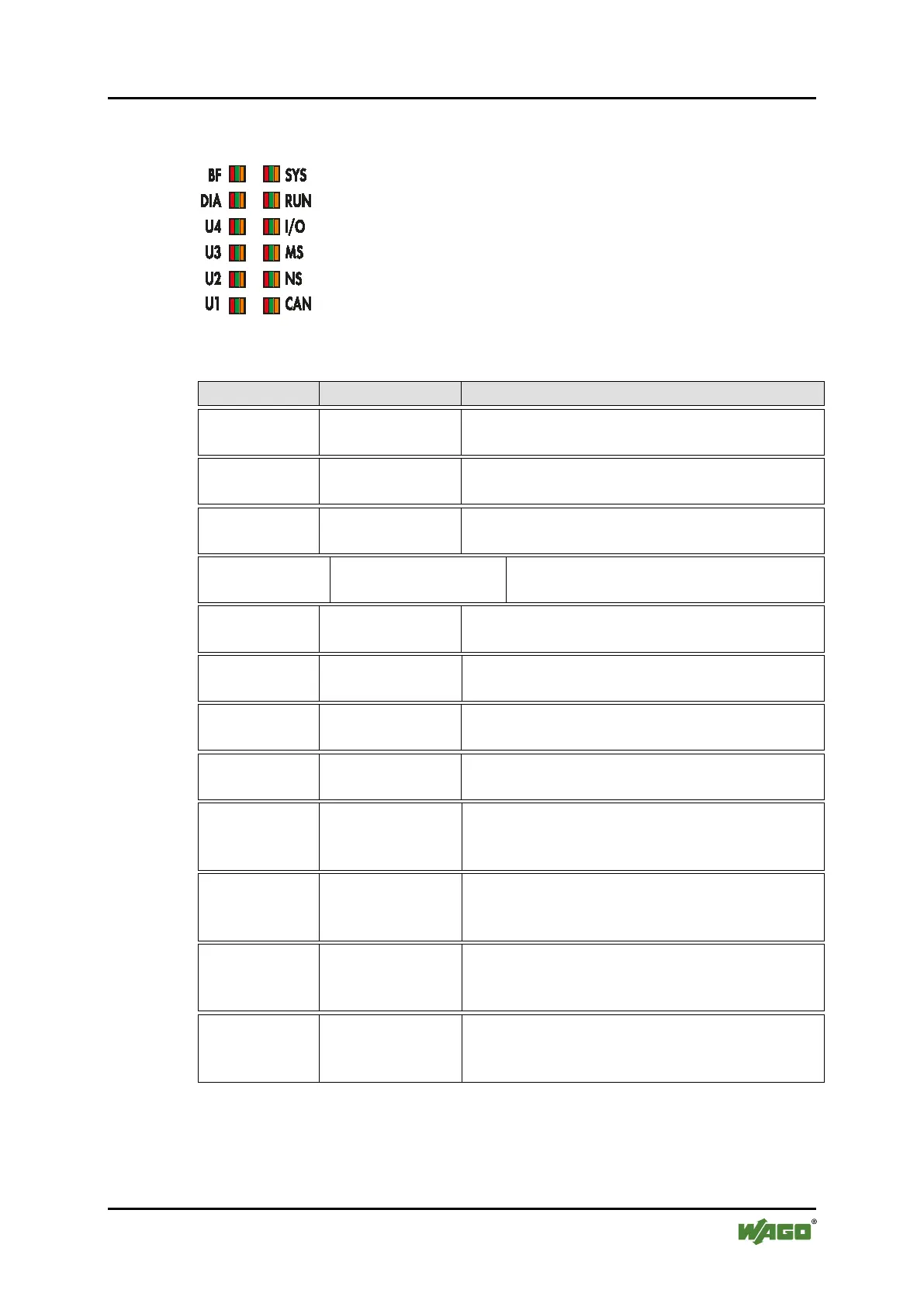

Figure 17: Fieldbus/System Indicating Elements
Table 14: Legend for Figure “Fieldbus/System Indicating Elements”
Description
Color
Description
SYS
Red/Green/
Orange/Off
System status
RUN
Red/Green/
Orange/Off
PLC program status
I/O
Red/Green/
Orange/Off
Internal data bus status
MS
Red/Green/Orange/
Off
Module status
NS
Red/Green/
Orange/Off
Without function
CAN
Red/Green/
Orange/Off
CANopen status
BF
Red/Green/
Orange/Off
PROFIBUS status
DIA
Red/Green/
Orange/Off
PROFIBUS Diagnostics
U4
Red/Green/
Orange/Off
User LED 4, programmable using function
blocks from the WAGO libraries to control the
LEDs
U3
Red/Green/
Orange/Off
User LED 3, programmable using function
blocks from the WAGO libraries to control the
LEDs
U2
Red/Green/
Orange/Off
User LED 2, programmable using function
blocks from the WAGO libraries to control the
LEDs
U1
Red/Green/
Orange/Off
User LED 1, programmable using function
blocks from the WAGO libraries to control the
LEDs
