Watlow F4T Controller • 52 • Chapter 3 Using the F4T Front Panel
Starting a Profile Using the Calendar
A single Profile can be configured to start automatically based on a specific day and time.
To start a profile automatically follow the steps below:
1. Push the Profile Actions button.
2. Push the Go to Profiles button.
3. Push the Actions button for the desired profile.
4. Push the Calendar Start button.
5. Select and change the Day of Week and Time to the application requirements pushing
the Save button for each when done.
6. Push the Start button (bottom right of screen) when complete and return to the home
screen.

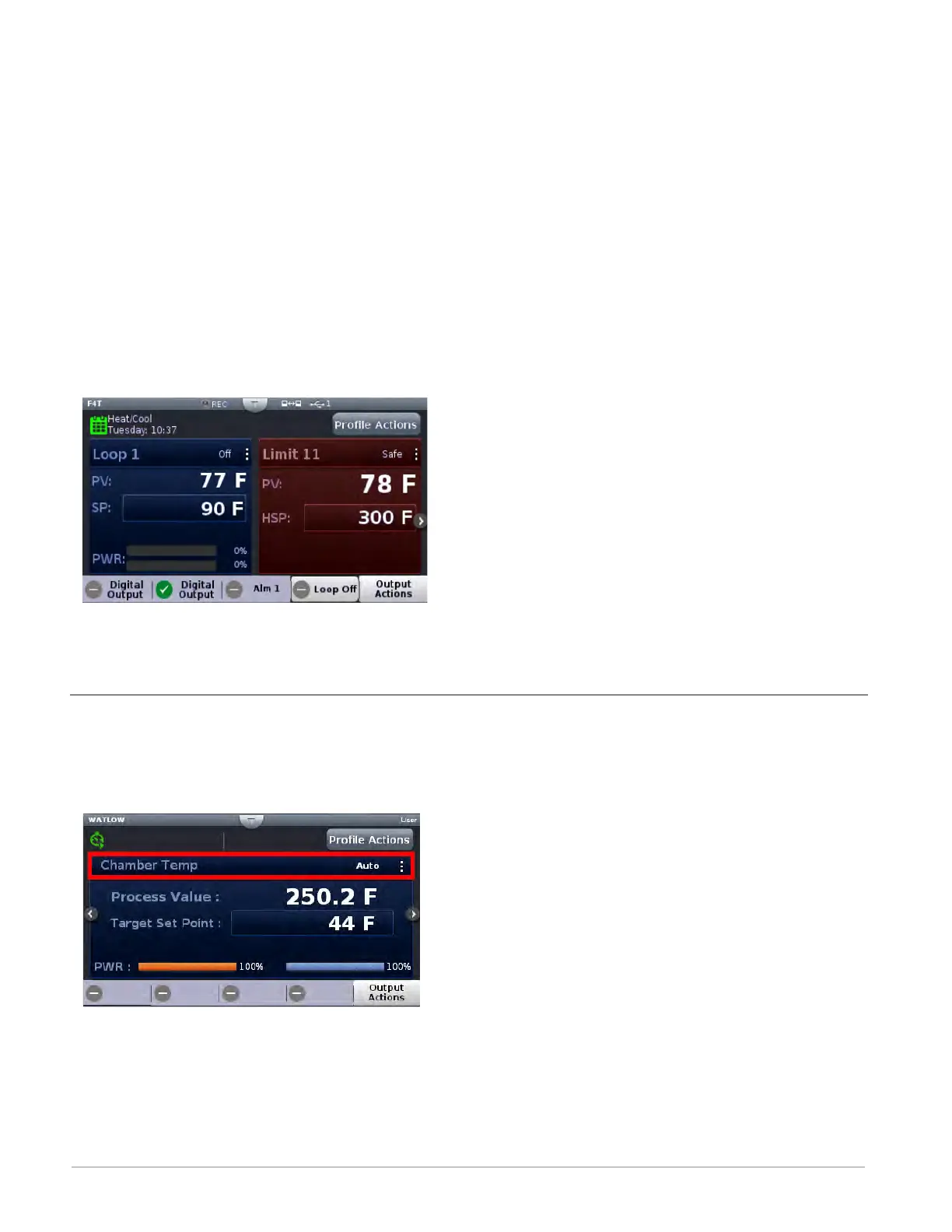

The graphic below now shoes a calendar icon on the Profile Status bar with the day and time
that the profile will start.
Note:
For further explanation regarding profiles, their operation and configuration see the sec-
tion entitled "Profile" in Chapter 5 of this User's Guide.
Changing Loop Operational Parameters
Pushing the vertical ellipsis or anywhere within the red box shown below will provide access
to the loop name, control mode, PID settings and many other parameters.
Some of the available options accessible through this access point are shown below. Be aware

Watlow F4T Specifications

General

Inputs	Thermocouple, RTD, mA, V
Outputs	Relay, SSR, mA, V
Communication	Ethernet, Modbus RTU
Data Logging	Yes
Certifications	CE, UL, cUL, RoHS
Control Modes	PID, On/Off
Power Supply	100 to 240 VAC
Operating Temperature	0 to 50°C
Enclosure Rating	IP65
Display	4.3 in. (109 mm) color touch panel LCD
Control Loops	Up to 4
