Watlow F4T Controller • 60 • Chapter 3 Using the F4T Front Panel
Export Data Log Report - via USB stick
Use existing "File Transfer" method to export data log file now formatted as a Batch Report
(configuration, profiles, data log)

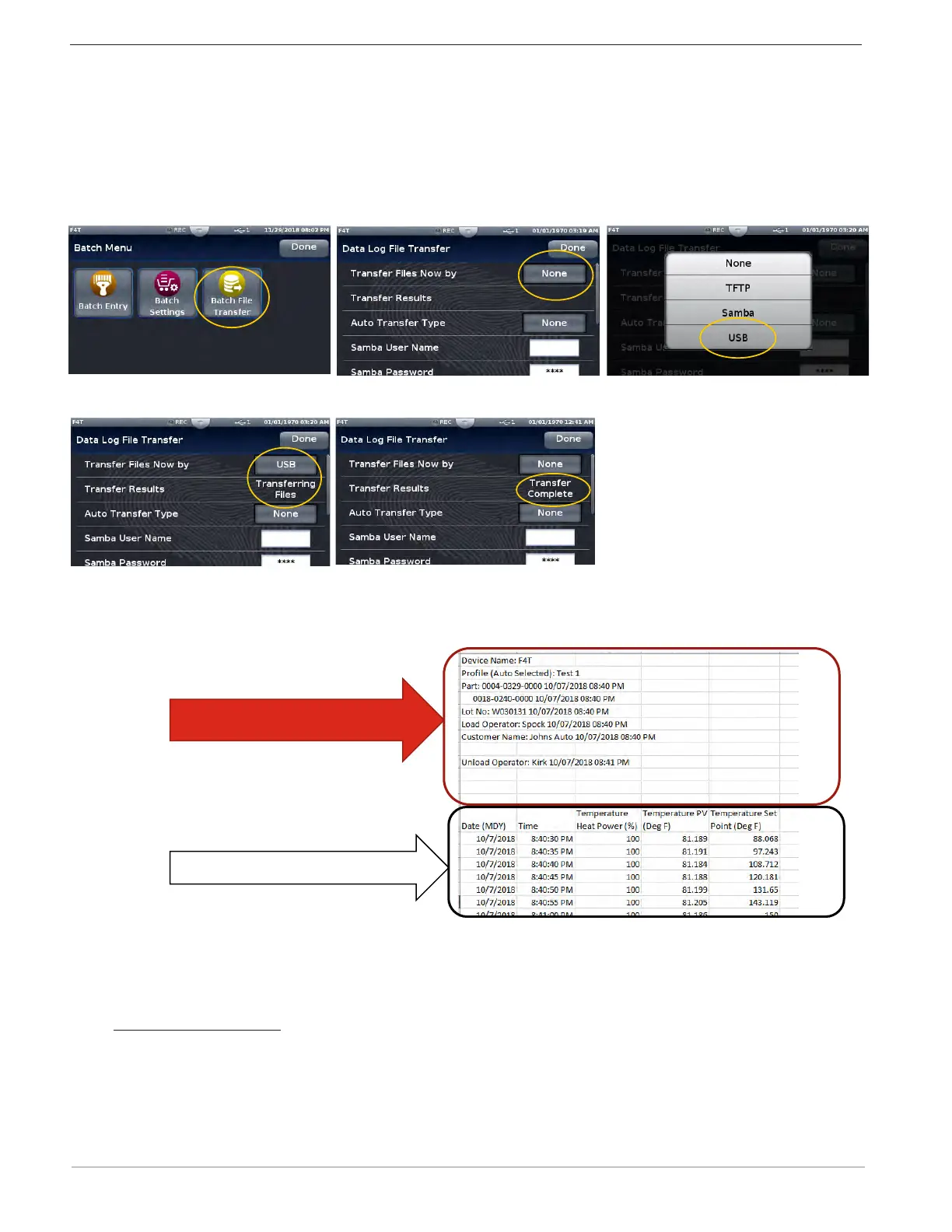

Scenario described below: Export via USB stick plugged into F4T/D4T controller.
1
2
3
4
5
“Batch” Bar code data
Thermal Data
Transfer file on USB stick into a
PC to view file
Microsoft Excel view of Batch Report (.CSV file format)
Creating and viewing encrypted data files are also available.
Details covered in Watow F4T videos available on line.
Want to learn more:
• Data logging video:
https://w w w.youtube.com/watch? v=Q C-dnzoK EXQ&t=0s&index=2&list=PLa
QlQSMB2FG3K7m-mnhLubeh9W6bJcBZJ
• Data log/batch report file transfer video:
http s://ww w.youtu be.com/w atch?v=S g_ eo NXQc u s&i
ndex=3&list=PLaQlQSMB2FG3K7m-mnhLubeh9W6bJcBZJ

Watlow F4T Specifications

General

Inputs	Thermocouple, RTD, mA, V
Outputs	Relay, SSR, mA, V
Communication	Ethernet, Modbus RTU
Data Logging	Yes
Certifications	CE, UL, cUL, RoHS
Control Modes	PID, On/Off
Power Supply	100 to 240 VAC
Operating Temperature	0 to 50°C
Enclosure Rating	IP65
Display	4.3 in. (109 mm) color touch panel LCD
Control Loops	Up to 4
