Watlow F4T • 66 • Chapter 4 Application Examples
Chapter 4: Application Examples
4
Applications
This chapter contains the basic instructions for configuring sample applications. Refer to
Chapter 5 for detailed descriptions of the function blocks and parameters.
Single Loop Control
In this example, Universal Input 1 on module 1 measures the temperature of a chamber or
oven with a thermocouple. Control Loop 1 takes its feedback directly from the universal in-
put and signals output 2 on module 2 to switch the heater that heats the chamber or oven
accordingly.

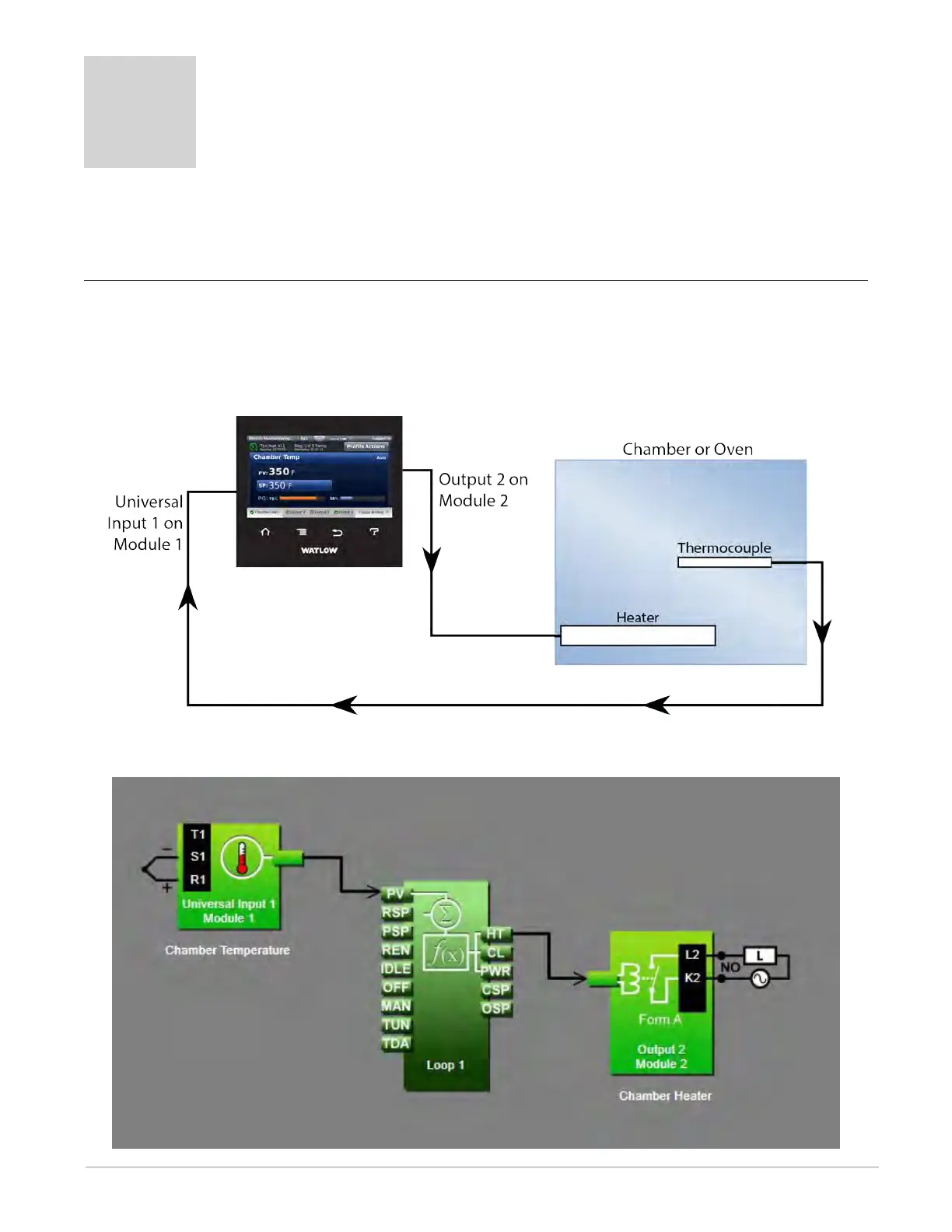

Function Block Diagram
