Watlow F4T • 47 • Chapter 3 Using the F4T Front Panel
• Actual IP Gateway: [0.0.0.0]
- Gateway: is a device used on the network to route messages with IP addresses that do not
exist on the local network.
• MAC Address: xx:xx:xx:xx:xx:xx (Will be different and unique for each controller)
- MAC address: is a manufacturer supplied address for the network interface card.
• Display Units: [°F] (Fahrenheit), °C (Celsius)
• Modbus
®
TCP Enable: [Yes], No
- Modbus is an industrially hardened field bus protocol used for communications from the
controller to other devices on the network; only one connection via Modbus is allowed.
• Modbus Word Order: [High], Low
- Modbus allows a user to select the word order of two 16-bit words in floating point values.
• Data Map: [1], 2
- Data Map, the user can switch Modbus registers from the comprehensive listing of F4T reg-
isters to a limited set of the legacy F4 controller registers (1 = F4T, 2 = F4 compatibility).
Personalizing the Home Screen Using the UI
Placement of objects on the home screen can be modified by the user.
Note:
Prior to personalizing the Home screen first configure pluggable modules and at least one
control loop.
To personalize the Home screen, do the following:
1. From any screen push the Menu button.
2. Push Personalize.
3. Push Basic Personalization.
4. Select the desired Home Layout by pushing Main Top, Main Center or Main Bottom.

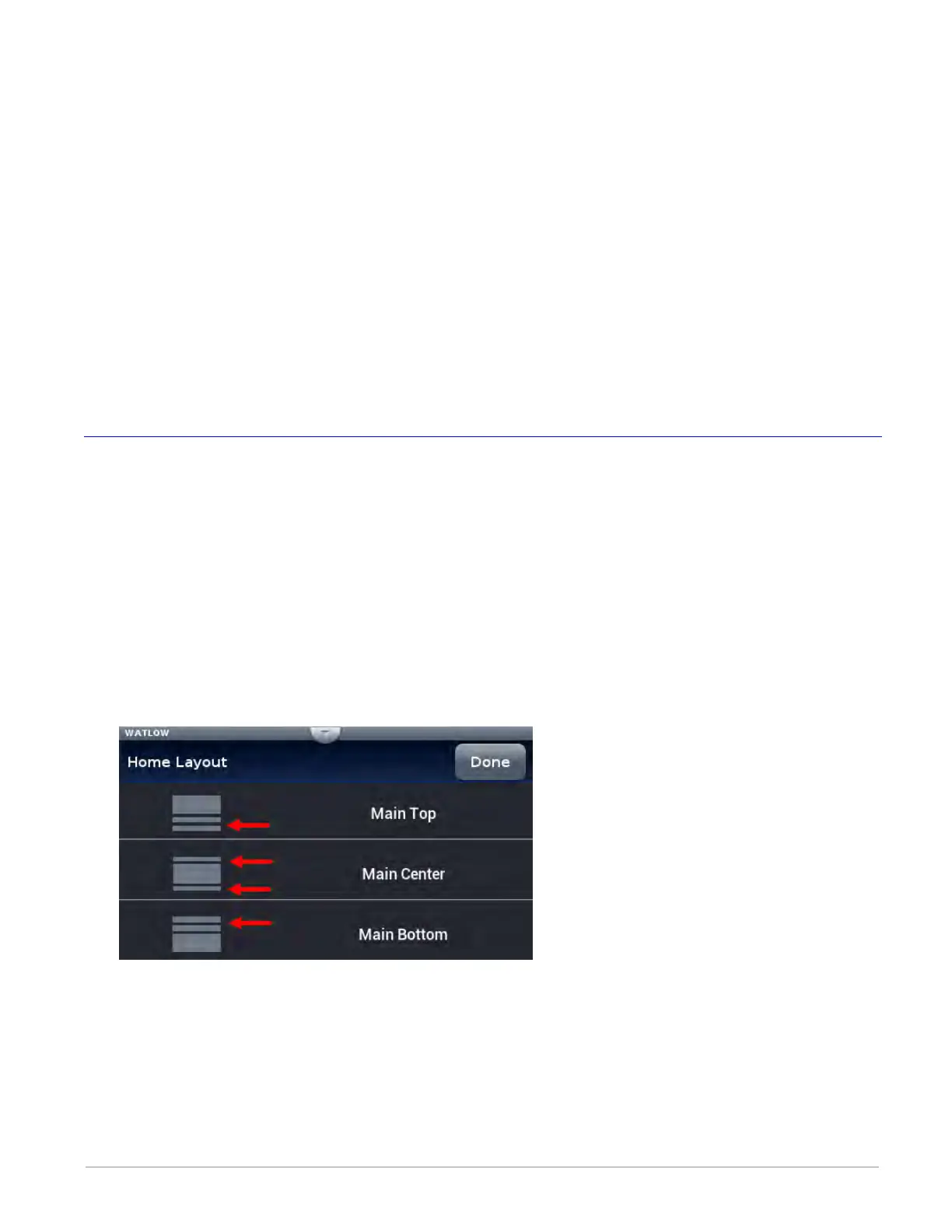

The red arrows were placed on this graphic for emphasis only and represent what the focus of
this operation is; that being, defining the location of the profile status and the output widget
bars. As shown above, the options include placing them on the bottom, split screen top and
bottom or on the top.
To Next Page
