Edge [ii] Controller Operation Manual
SECTION 2: EZ SETUP
OMM-139_E • 8/25/2020 Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST Page 29 of 196

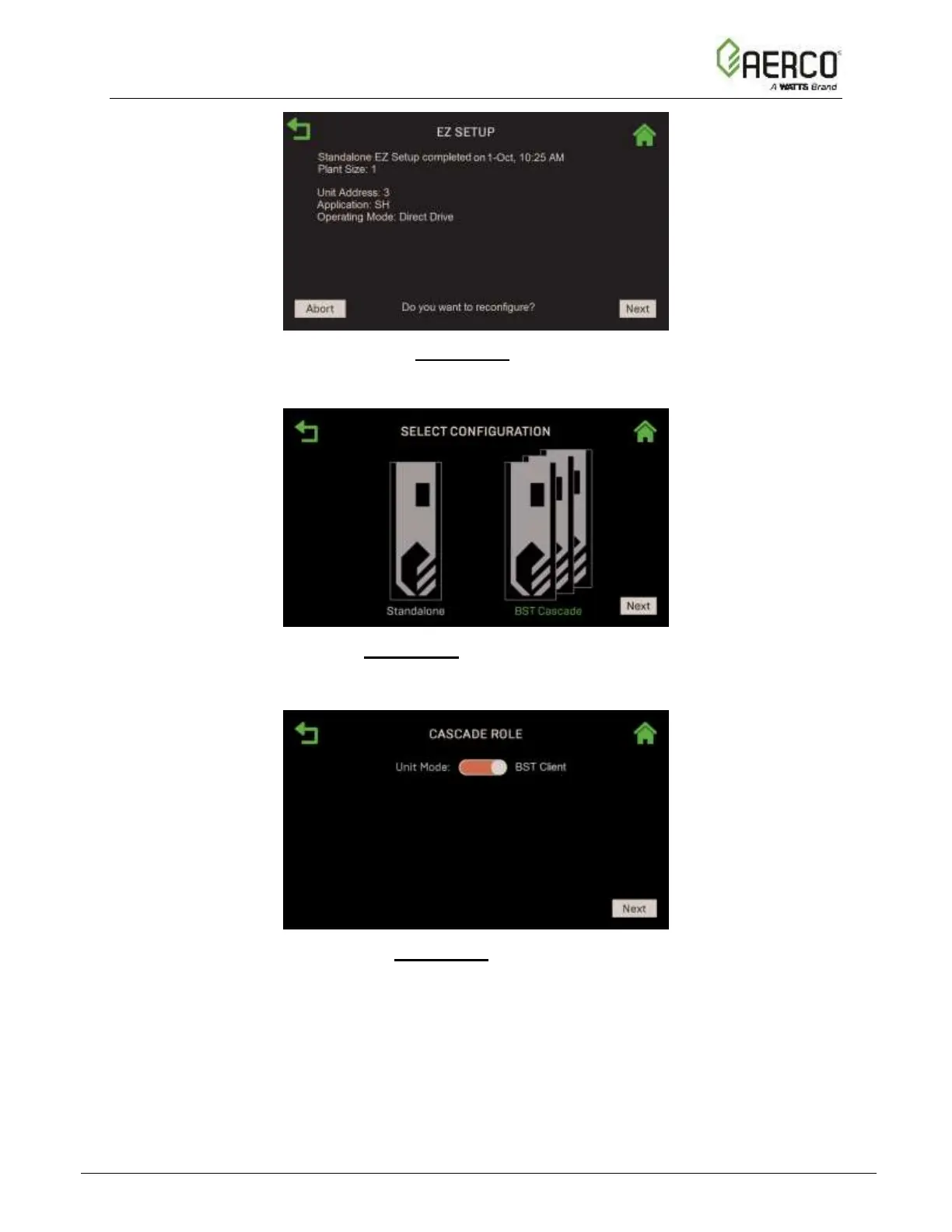

Figure 2.3.1-1: BST Client: EZ Setup Screen
3. On the Select Configuration screen press BST Cascade, then press Next.
Figure 2.3.1-2: BST Client: Select Configuration Screen
4. The Cascade Role screen appears. Set Unit Mode to BST Client, then press Next.
Figure 2.3.1-3: BST Client: Cascade Role Screen
5. The Client Communication screen appears. Configure the following parameters, then press
Next.
• Unit Address: Enter a unique address for this unit in the BST Cascade, from 1 to 16
(1 is sometimes reserved for the BST Manager).
• Cascade Baud Rate: Choose the baud rate for communication with the BST
Manager: 9600, 19200, 38400 or 57600.
