5552−1/A1
Winterthur Gas & Diesel Ltd.
5/ 5
5. Servo Oil Pump −
Installation
CAUTION
Injury Hazard: The weight
of the servo oil pump is
approximately 150 kg. Use
the correct equipment to
lift and move the servo oil
pump. This will prevent
injury to personnel.
Note: During installation, do a check of
the clearances, refer to 0330−1
Clearance Table, Supply Unit.
1) Put a new O-ring in the pump support.
2) Apply a small quantity of oil to the
O-ring.

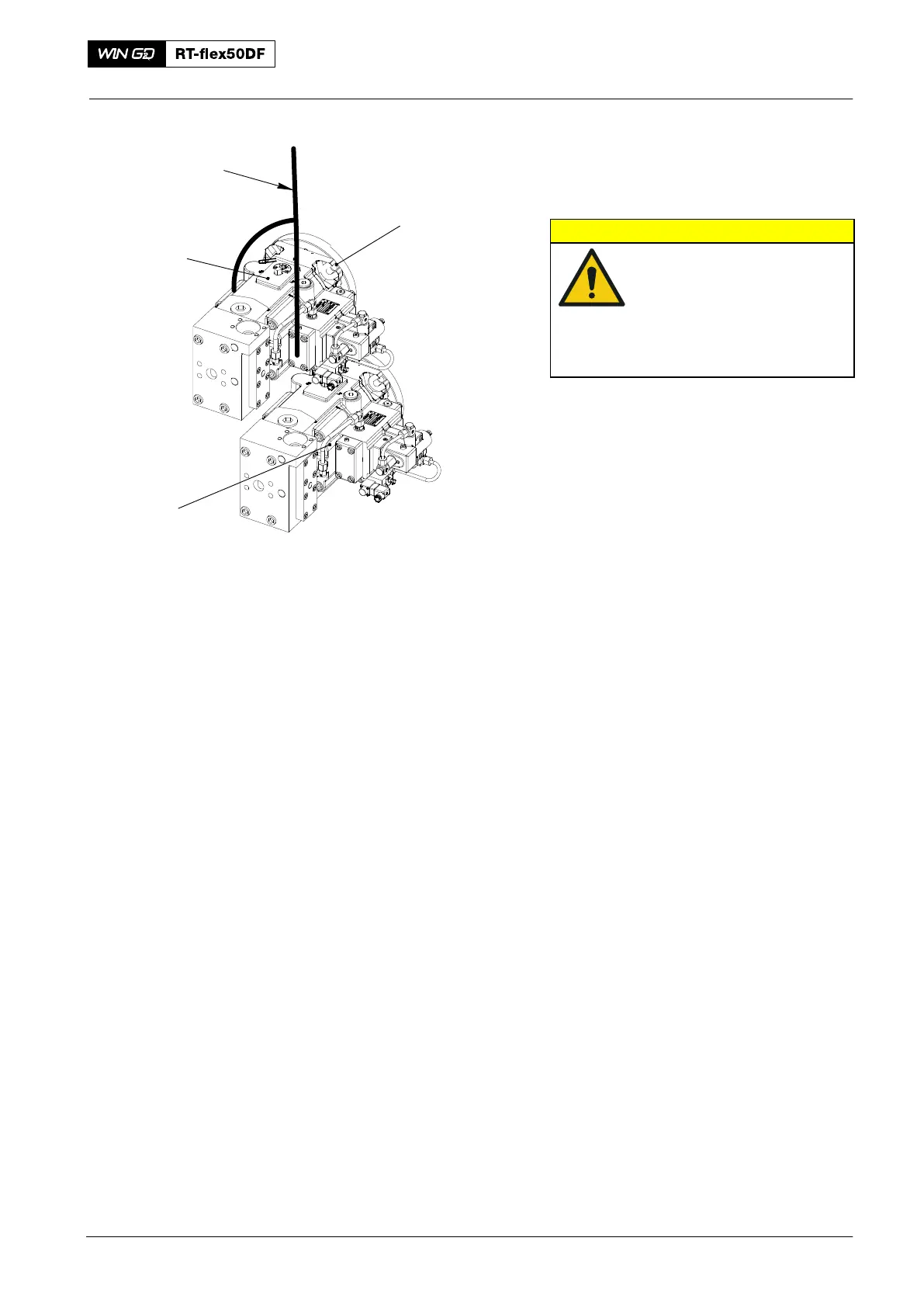

3) Put the sling (94657) around the servo
oil pump (4, Fig. 6) two times.
4) Attach the sling (94657) to the engine
room crane.
5) Operate the engine room crane to put
the servo oil pump (4) in position.
6) Attach the servo oil pump (4) to the casing with the four washers (2) and nuts (3).
7) Do step 1) to step 6) to install the servo oil pump (1).
6. Completion
1) Attach the oil inlet pipes to the servo oil pumps (1, 4).
2) Attach the drain pipes to the servo oil pumps (1, 4).
3) Install the HP servo oil pipes, refer to 8447−1 paragraph 4 and paragraph 5.
4) Install the HP fuel pipes, refer to 8752−1 paragraph 4.
5) Connect the electrical connections that you removed before.
6) Set to on the main bearing oil pump.
7) Set to on the servo oil service pump.
8) Do a check for leaks.
9) Set to off the servo oil service pump.
2016
Maintenance
Supply Unit: Servo Oil Pump and Servo Oil Pump Drive Removal and Installation
2, 3
1
4
Note: Some parts can look different.
Fig. 6
94657
