Maintenance5562−3/A1
Winterthur Gas & Diesel Ltd.
2/ 4
3. Removal
CAUTION
Injury Hazard: The weight
of the FLV is approximately
35 kg. Use the correct
equipment to lift and move
the FLV. This will prevent
injury to personnel.
1) Remove the four bolts (1, Fig. 2) and
the four bolts (4).
2) Install the two M10 eye bolts
(94045-M10) to the FLV.
3) Lift the FLV.
4) Carefully remove the lip seal (3). Make
sure that you do not cause damage to
the lip seal.
5) Put the lip seal (3) in a safe area.
6) Make sure that the dowel pins stay in
the fuel rail.
7) Lower the FLV on to an applicable
clean surface.
8) Clean all seating surfaces of the blind
flange (94585B, Fig. 3).
9) Make sure that the lip seal is installed
in the blind flange (94585B).
10) Attach the blind flange (98585B) to the
fuel rail with the four M12x60 screws.
11) Torque the four M12x60 screws to
60 Nm.
2016

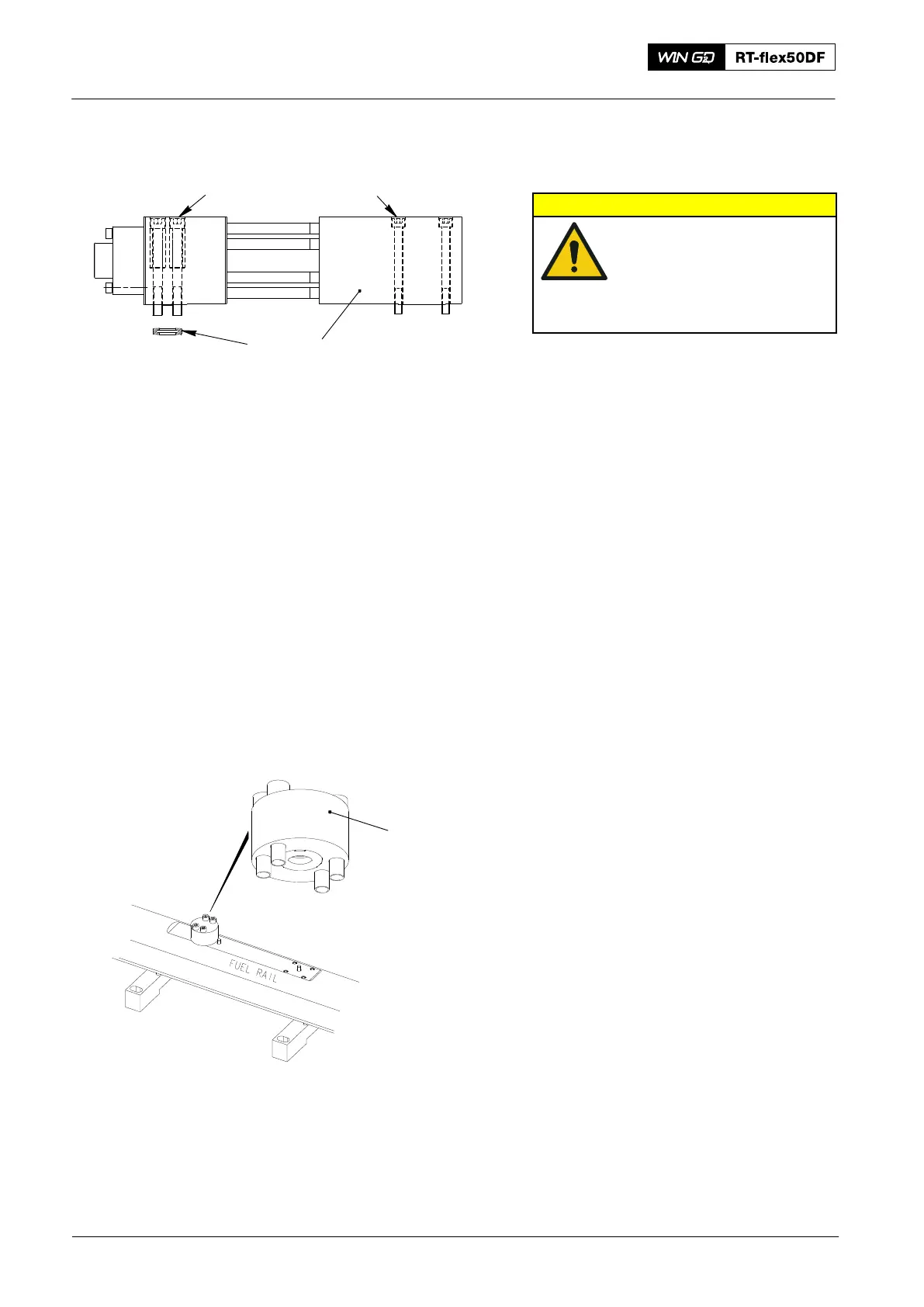

Flow Limiting Valve: Replacement
4
WCH03116
Fig. 2
1
32
94585B
WCH03114
WCH03115
Fig. 3
