Maintenance
9258−1/A1
Winterthur Gas & Diesel Ltd.
1/ 1
Removal and Installation
Tools:
1 Disassemble and assemble tool 94022H
1. General
For data about the balance control of the cylinder pressure, refer to the Operation
Manual, 4002−1, paragraph 3.10.
For the signal failure test, refer to the Operation Manual 4002−2, paragraph 3.5
Cylinder Balancing (Diesel Mode) and 3.6 Cylinder Balancing (Gas Mode).
2. Removal
1) Make sure that there is no pressure in cylinder cover (2, Fig. 1).
2) Disconnect the electrical connection from the pressure sensor (1) (PT3601).
3) Attach the tool (94022H) to the casing of the sensor (1).
4) Carefully remove the sensor (1).
5) Put the sensor (1) in a clean, dry area.
3. Installation
1) Apply oil to the thread of the sensor (1).
2) Attach the tool (94022H) to the sensor (1).
3) Fully install the sensor (1).
4) Torque the sensor (1) to 25$5 Nm.
5) Connect the electrical cable to the sensor (1).
6) On the Local Control Panel, look for the the signal failure list. Make sure that a
pressure sensor (PT3601−07C) shows.
WCH03408
2
94022H
1
I - I

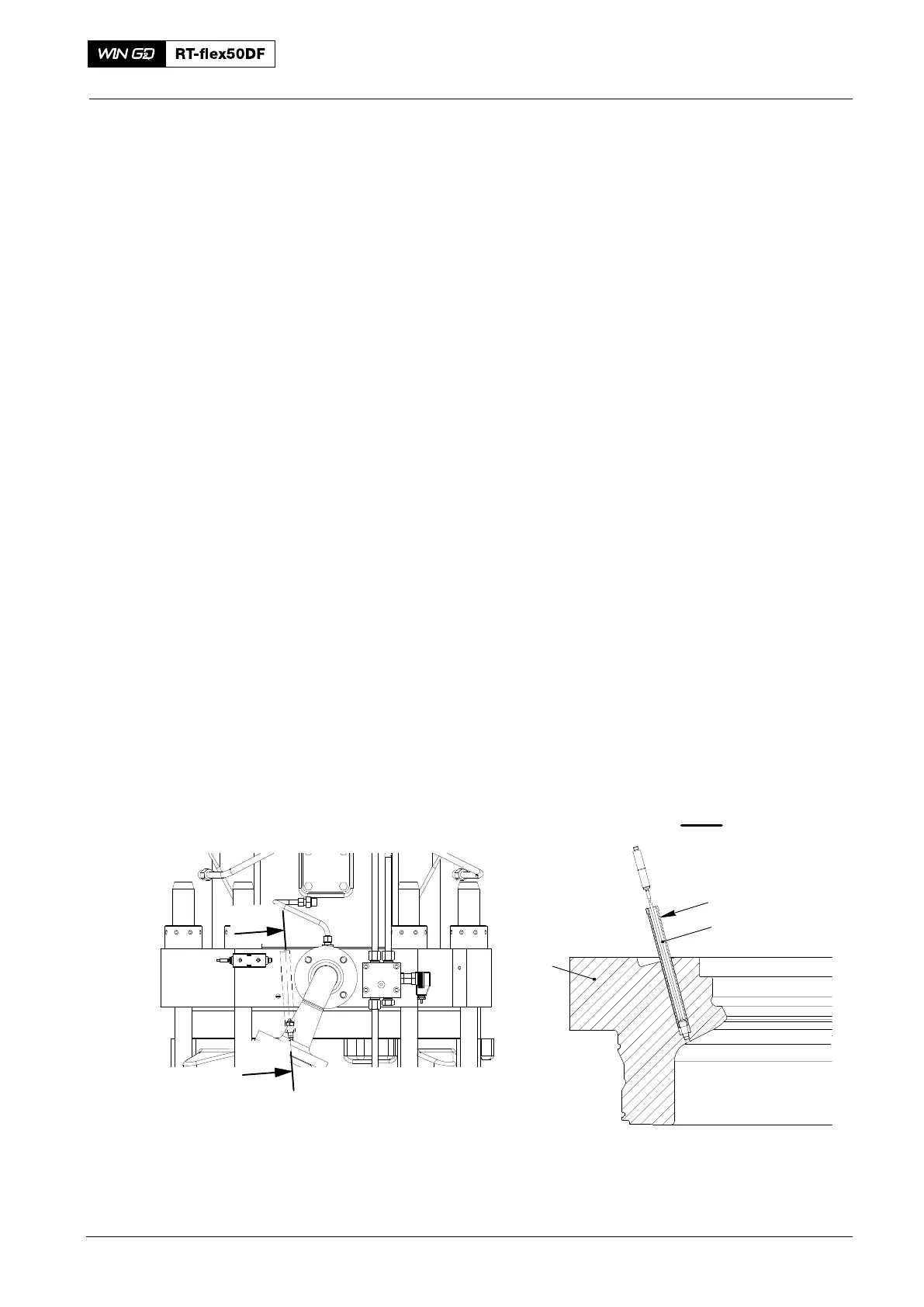

Fig. 1
I
I
WCH03568
Cylinder Pressure Sensor
