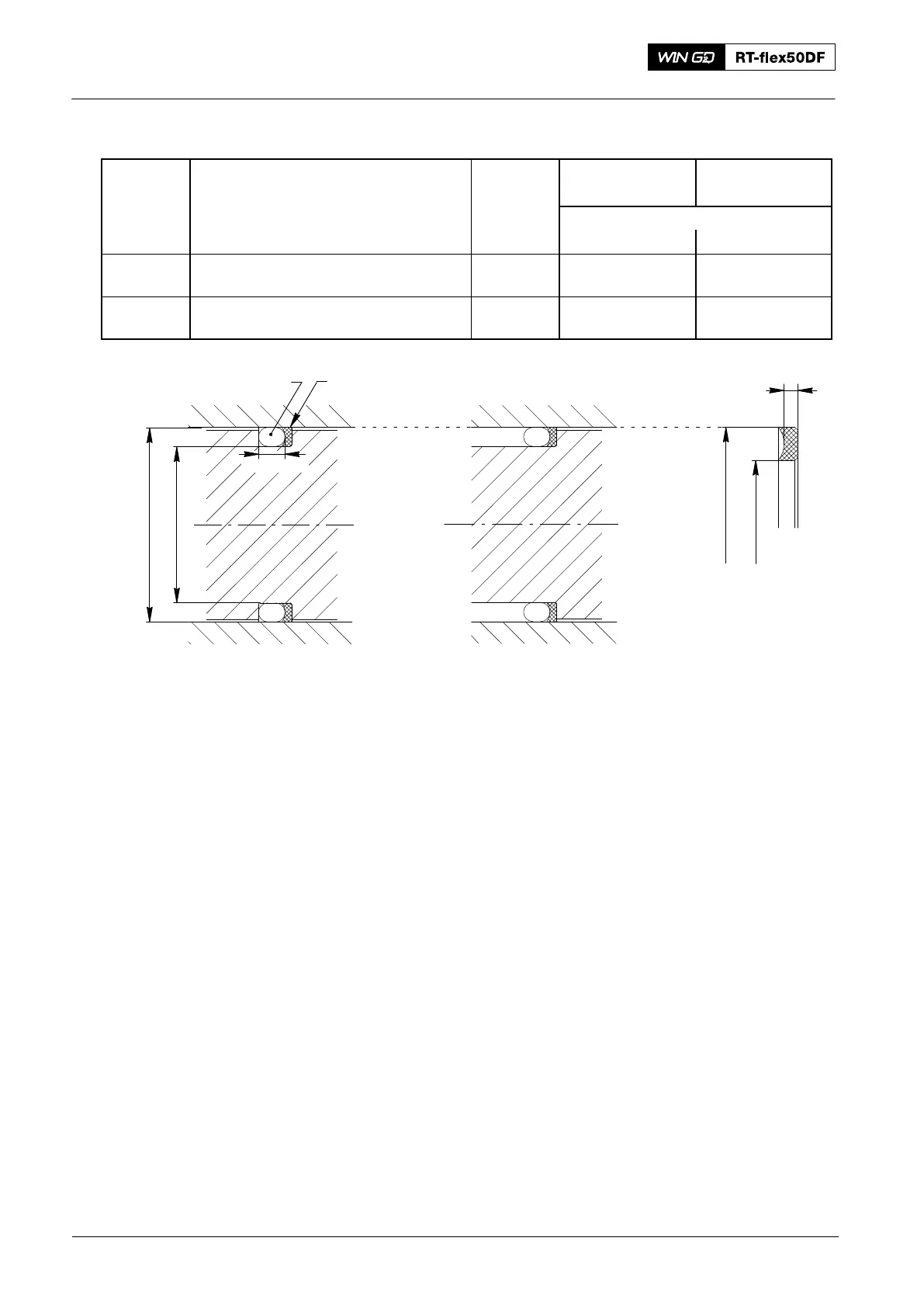

Table 1 (continued)
Tool
Number
Position of Pre-tensioning Jack Part Back-up Ring
(not cut)
O-ring
Dimension (mm)
o∅ x i∅ x t i∅ x s
94340 Elastic studs for the piston rod −
screw connection
piston
cylinder
58 x 51.8 x 1.4
47.2 x 41 x 1.4
50.39 x 3.53
40.87 x 3.53
94346 Elastic studs for the piston head piston
cylinder
50.5 x 44.3 x 1.4
46.2 x 40 x 1.4
44.04 x 3.53
40.87 x 3.53
O-ring
t
i∅o∅
i∅o∅
002.696/98
Back-up ring
s
011.032/03
Fig. 1
