Maintenance
9403−3/A1
Winterthur Gas & Diesel Ltd.
11/ 11

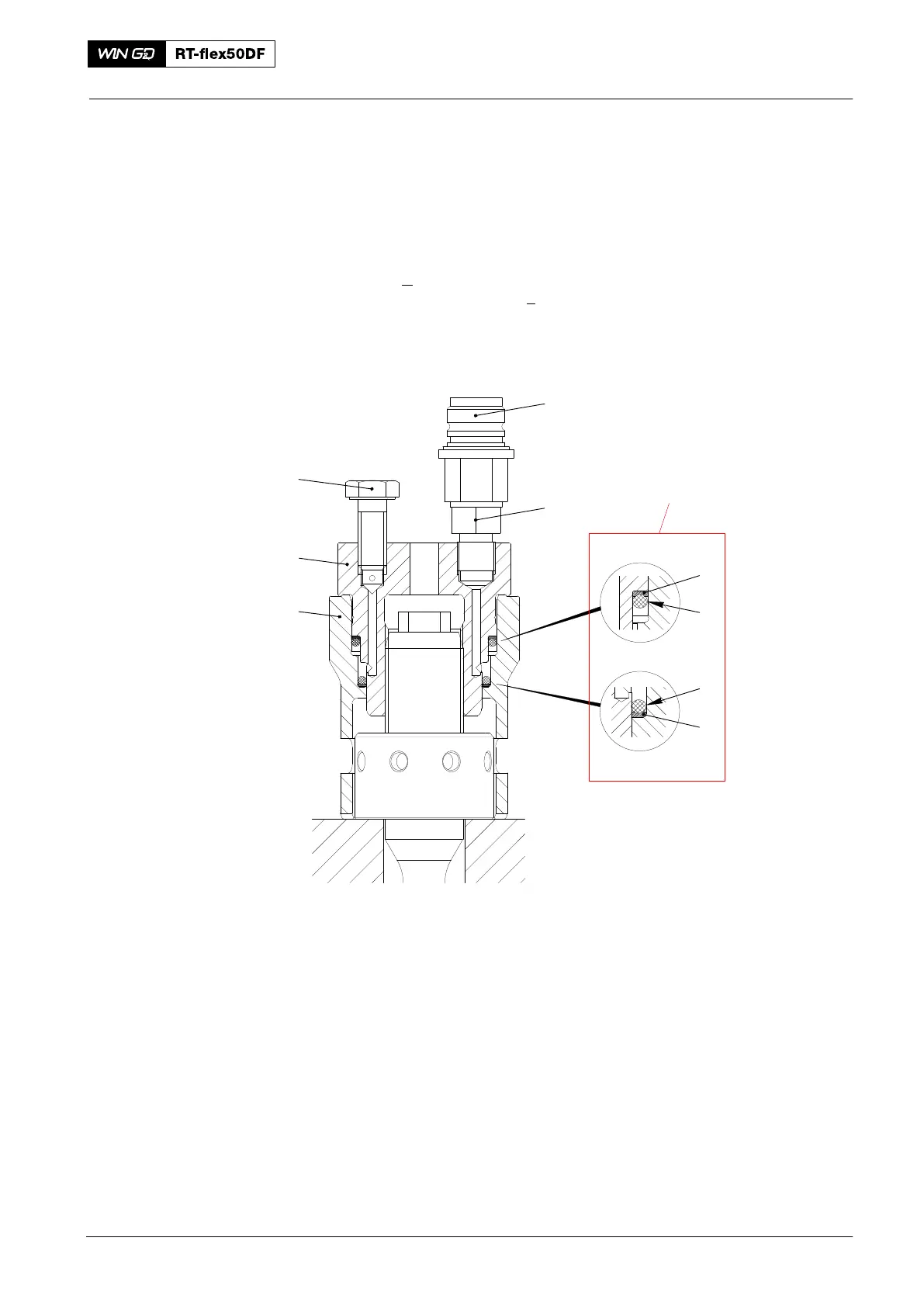

Table 10: Tool 94346 − Pre-tensioning Jack (Elastic Stud − Piston Crown)
1 Piston 6 Back-up ring
3 Cylinder 7 O-ring
4 Vent screw 8 Back-up ring
5 Adapter 9 O-ring
6 Connection piece
94346−KJ K
it with back-up and O-rings
for pre-tensioning J
ack
016.651/08
6
7
9
8
3
5
1
2
4
Fig. 10
94346−KJ
Hydraulic Pre-tensioning Jacks: Storage, Servicing and Maintenance
