WinGD RT-flex50DF - Page 550

Maintenance9403−5/A1
Winterthur Gas & Diesel Ltd.
10/45

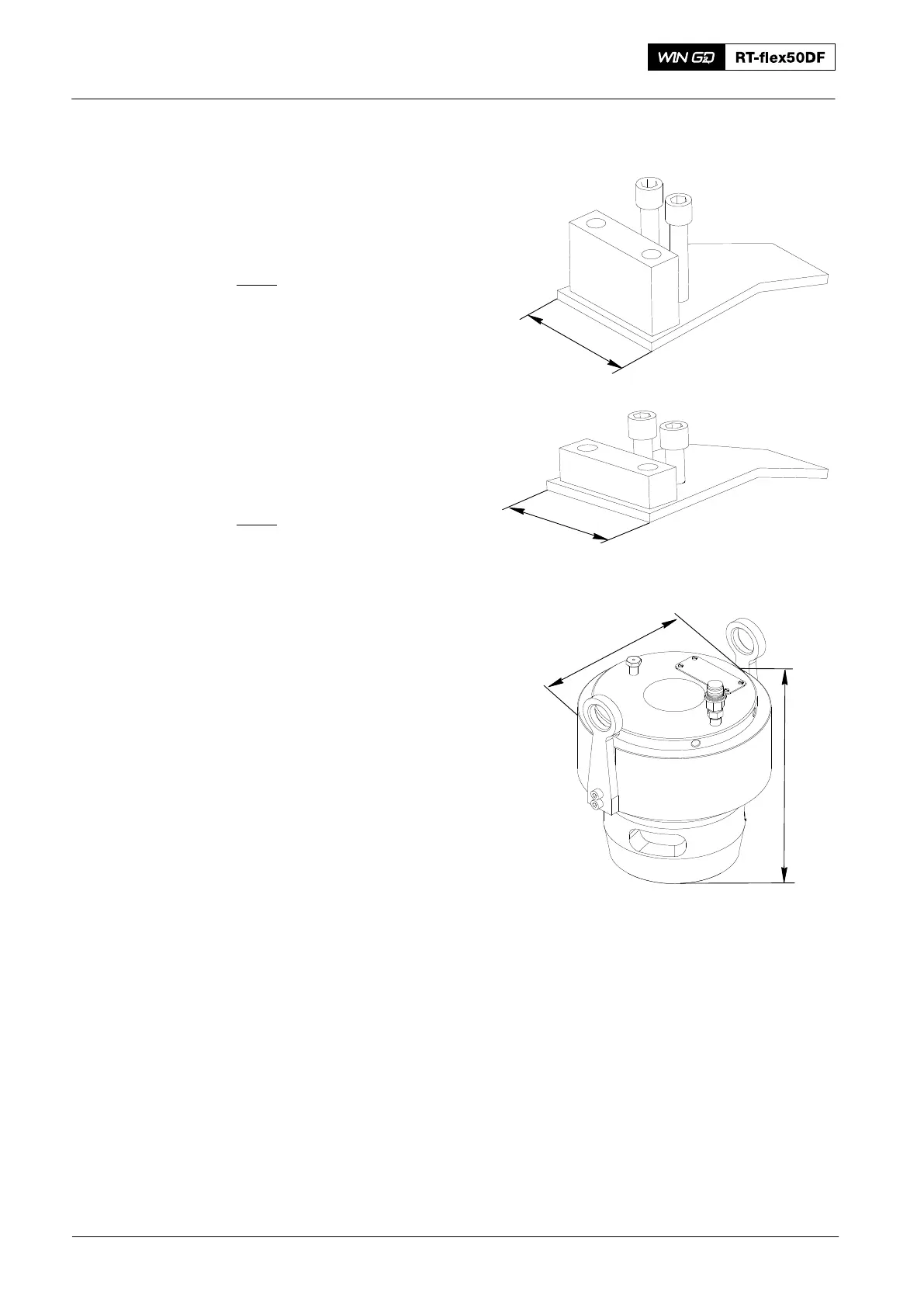

94155 1 Turning-out device
with screws M20x90
for turning out thrust bearing pads
(with 1-part
gear wheel)
X = 161.4 mm
X
013.568/05
94155A 1 Turning-out device
with screws M20x45
for turning out thrust bearing pads
(with 2-part
gear wheel)
X = 161.4 mm
X
013.569/05
94180 2 Pre-tensioning jacks
for tie rods (M80x6)
X = 232 mm
Y = 243.5 mm
WCH00668
X
Y
2020
Standard Tools
