WinGD RT-flex50DF - Page 551

Maintenance
9403−5/A1
Winterthur Gas & Diesel Ltd.
11/45

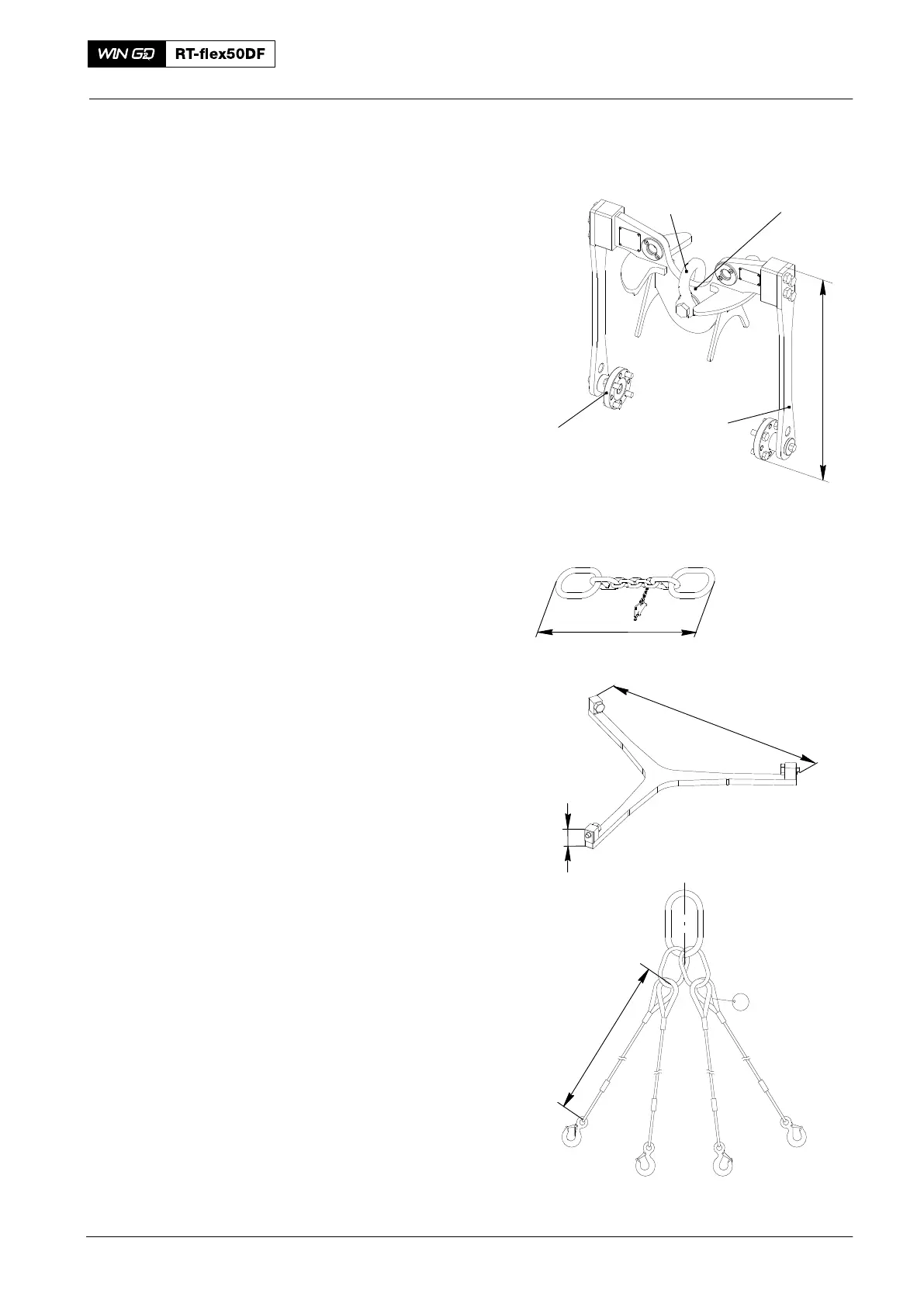

94201 1 Lifting device
for installation and transporting a
cylinder
Liner
X = 927 mm
Weight approx. 120 kg
(WLL 4200 kg)
consisting of:
94201A, B, C, D
94201A 1 Lifting tool
X = 963 mm
Mass approx. 100 kg
94201B 2 Holders
X = 940 mm
Mass approx.19,7 kg
94201C 2 Flange couplings
X = Ø176 mm
94201D 1 Shackle
94201A
94201B
94201C
94201D
WCH03066
X
94202L 1 Chain
X = 707 mm
WLL 5000 kg
WCH02588
X
94208 1 Dismantling tool
for removal of antipolishing ring
X = 442 mm
Y = 37 mm
WCH02873
X
Y
94209 1 Lifting hook
for removal and installation of
antipolishing ring
X = 1000 mm
WLL 750 kg
012.242/04
X
2020
Standard Tools
