WinGD RT-flex50DF - Page 552

Maintenance9403−5/A1
Winterthur Gas & Diesel Ltd.
12/45

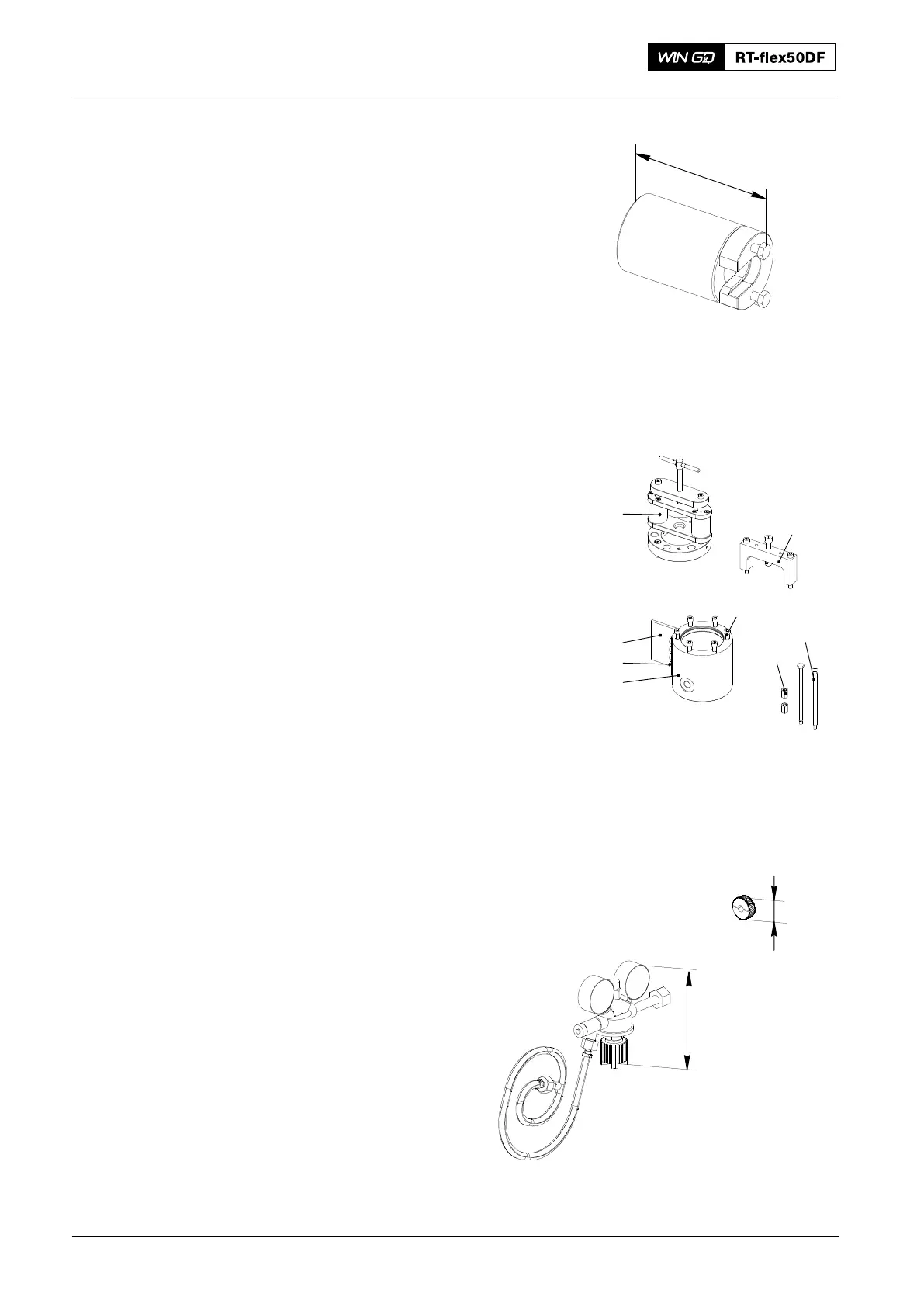

94213 1 Dismantling tool
X = 83 mm
X
WCH02256
94214 1 Dismantling and assembling tool
for gas admission valve
consisting of:
94214C 1 Dismantling and
assembling tool
for gas admission valve
94214D 1 Pusher
94214E 1 Bush
94214F 1 Angle steel
94214G 4 Hexagon head screw
M6x12
94214H 6 Hexagon socket head
cap screw M6x50
94214I 1 Gasket
Sealing between bush
and for gas admission
valve
94214K 1 O−Ring
for gas admission valve
94214L 2 Screws
for gas admission valve
94214M 2 Nuts
for gas admission valve
94214F
WCH03395
94214G
94214E
94214C
94214D
94214L
94214H
94214M
94214A 1 Handle
X = 37.5 mm
X
WCH03331
94214B 1 Pressure reducing valve
X = 172 mm
X
WCH03331
2020
Standard Tools
