Maintenance9403−5/A1
Winterthur Gas & Diesel Ltd.
18/45

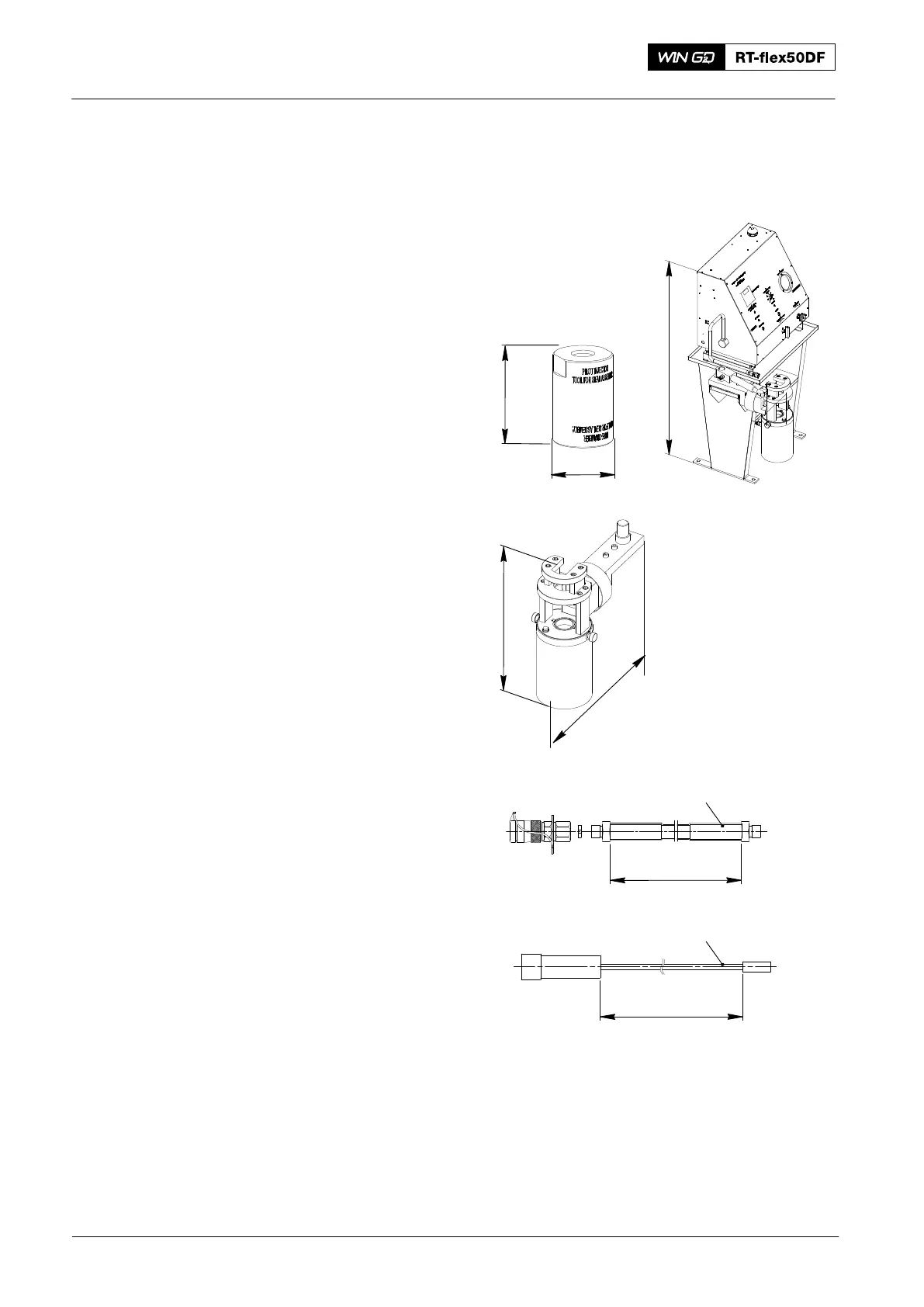

94272 Continued
94289E 1 Assembly tool
X = 150 mm
Y = 100 mm
94273 1 Valve holder
to OBEL test bench
for fastening injection
valve
X = 568 mm
Y = 546 mm
94275 1 HP hose
to OBEL test bench
for testing, loosening and
tightening of coupling nut
to injection valve
X = 1000 mm
Max. working pressure
1500 bar
94275A 1 Cable
to OBEL test bench
Electric connection
between OBEL test
bench and injection valve
X = 1200 mm
X
WCH03070
X
Y
WCH03069
WCH01208
X
94275
WCH01208
X
94275A
Y
X
2020
Standard Tools
