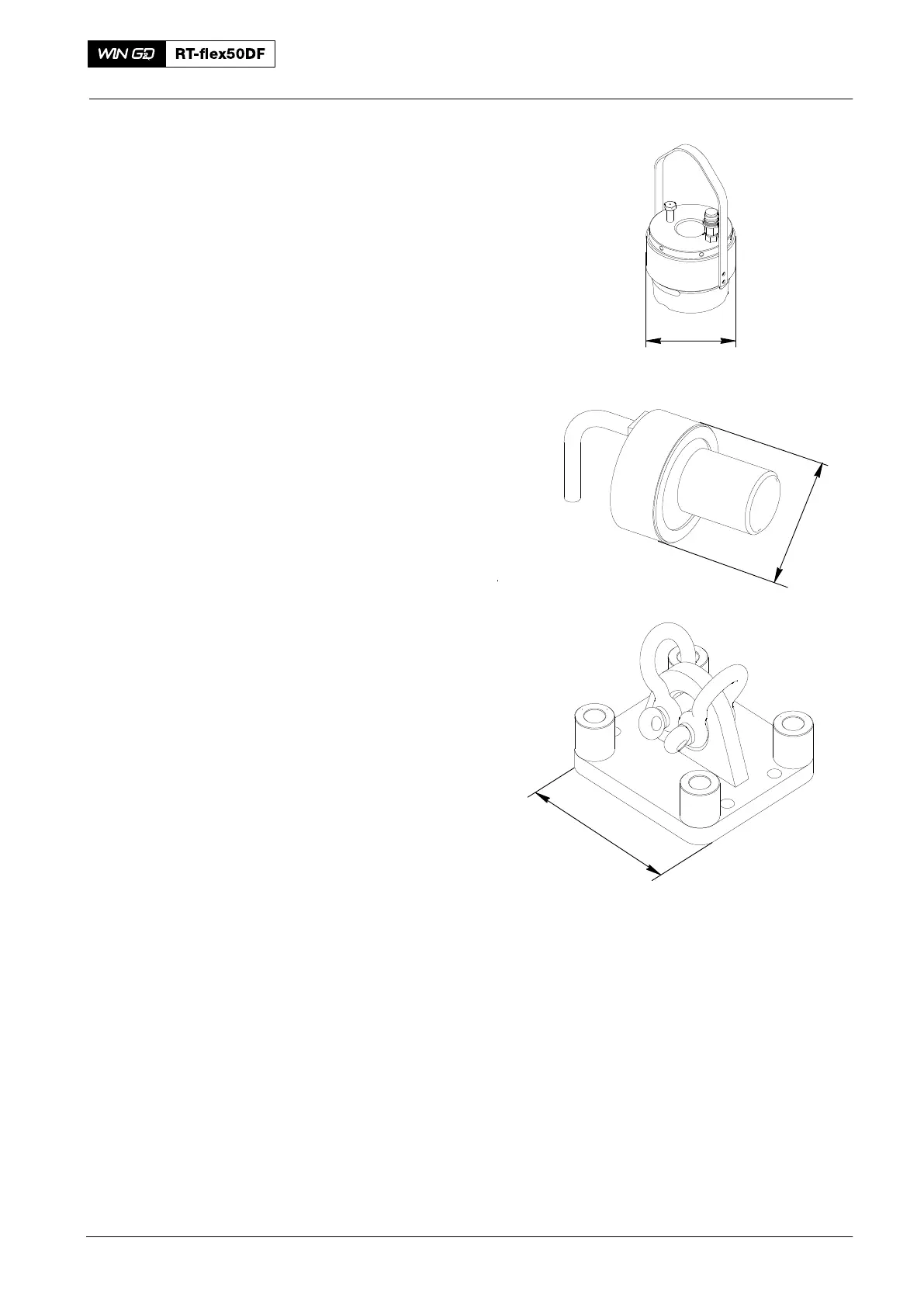

94315 2 Pre-tensioning jacks
for connecting rod studs to
top end bearing,
X = 132 mm
X
94323 4 Retaining pins
to prop up crosshead guide shoes
when removing or fitting a connecting
rod or a crosshead
X = 75 mm
1
.013.584
X
013.584/05
94324 1 Cover and lifting plate
to crosshead
including:
2 shackles 6.5 t
X = 257 mm
(WLL 3400 kg)
701.013.58
5
013.585/05
X
