Maintenance9403−5/A1
Winterthur Gas & Diesel Ltd.
22/45

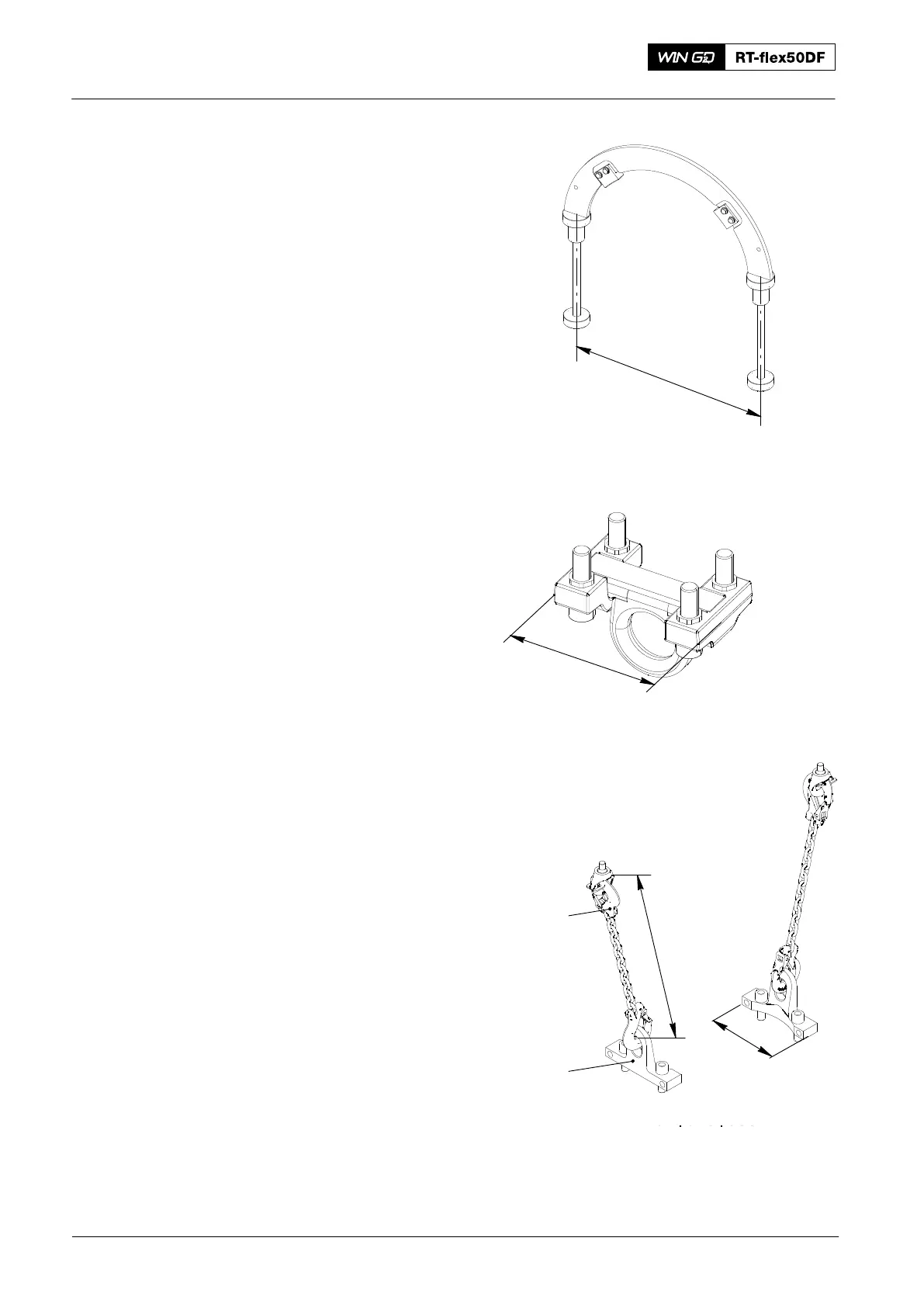

94331 1 Holder
for removal and fitting of a connecting
rod,
including:
2 Screws M24x380 with washers
2 Discs ∅ 90 mm
X = 726 mm
013.586/0
X
94332 2 Lifting rings
for removal and fitting of:
− main bearing
− bearing cover of top end bearing
− guide shoe
− connecting rod
X = 194 mm
(WLL 8000 kg)
X
013.587/05
94333 1 Lifting device
to piston for removal and fitting of:
− top end bearing cover
− crosshead pin and
− changing compression shim
consisting of:
94333A 2 Lifting bosses
with 4 Allen screws
M16x45
X = 166 mm
(WLL 1100 kg)
94333B 2 Suspension chains
X
1
= 440 mm
94333A
94333B
X
1
X
013.588/05
2020
Standard Tools
