Maintenance9403−5/A1
Winterthur Gas & Diesel Ltd.
28/45

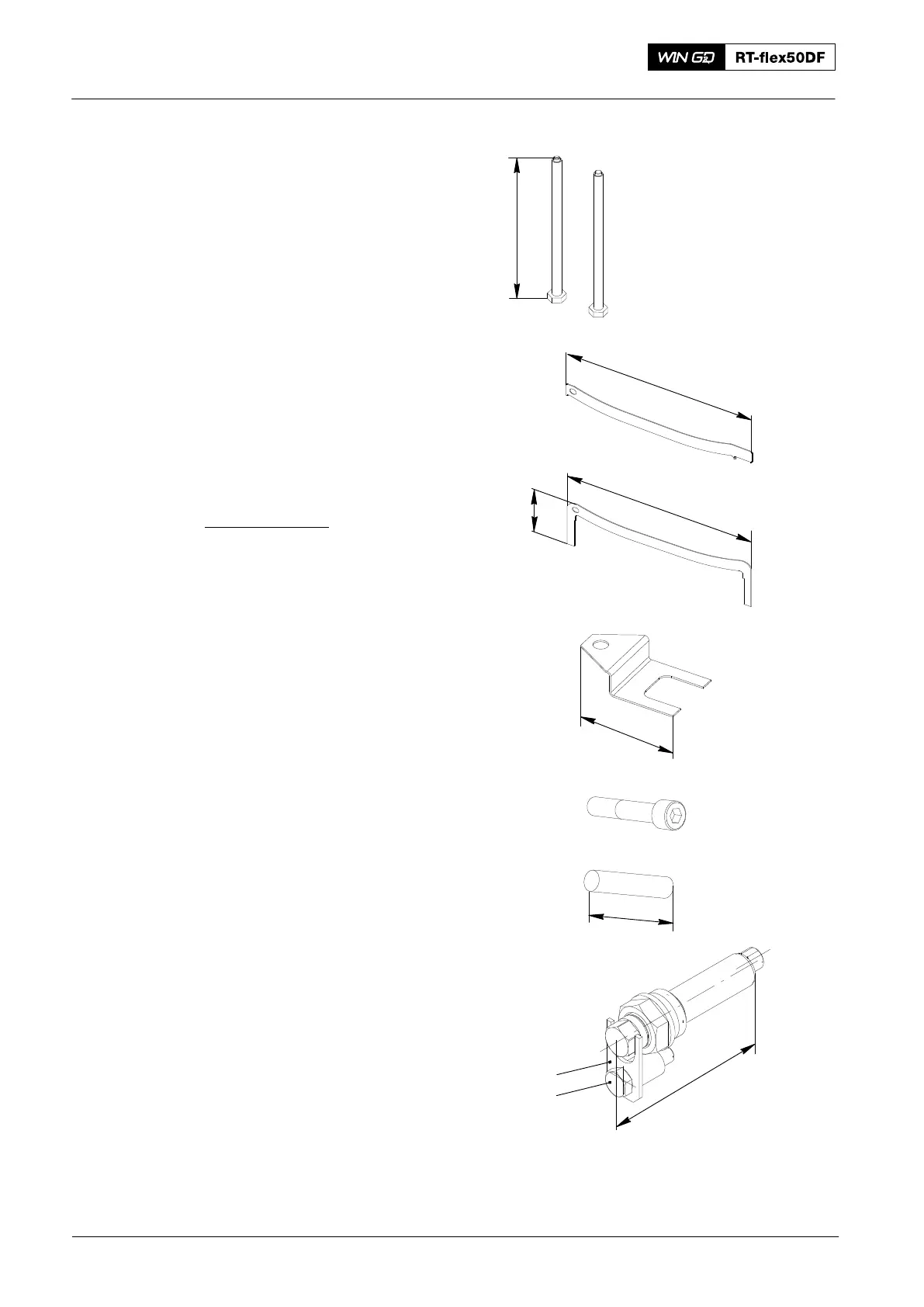

94364 2 Jacking screws M10
for separating piston skirt from piston
rod
X = 170 mm
WCH02950
X
94366A 1 Template
for shape of top of piston crown
(for use with piston in situ)
X = 549 mm
X
009.973/02
94366B 1 Template
for shape of top of piston crown
(with 3 piston rings
)
X = 557 mm
Y = 197 mm
009.972/02
X
Y
94370H 1 Stop plate
for locking top end bearing cover
X = 133 mm
X
013.601/05
94410E 2 Head bolts M30x150
for intermediate wheel assembly
013.699/05
94410F 2 Pins
for intermediate wheel assembly
X = 150 mm
X
013.698/05
94430 Device
for cutting out and cutting in of fuel
pump
2 pieces for 5 & 6 cylinder engines
3 pieces for 7 & 8 cylinder engines
including:
94430A 1 Claw
94430B 1 Screw M12x45
X =136 mm (for 5 & & cyl. engines)
X =142.5 mm (for 7 & 8 cyl. engines)
X
701.013.
013.602/05
B
A
