Maintenance9403−5/A1
Winterthur Gas & Diesel Ltd.
34/45
In case of a turbocharger breakdown
94653A−A165
94653A−A175
94653B−A165
94653B−A175
94653C−A165
94653C−A175
94653D−A165
94653D−A175

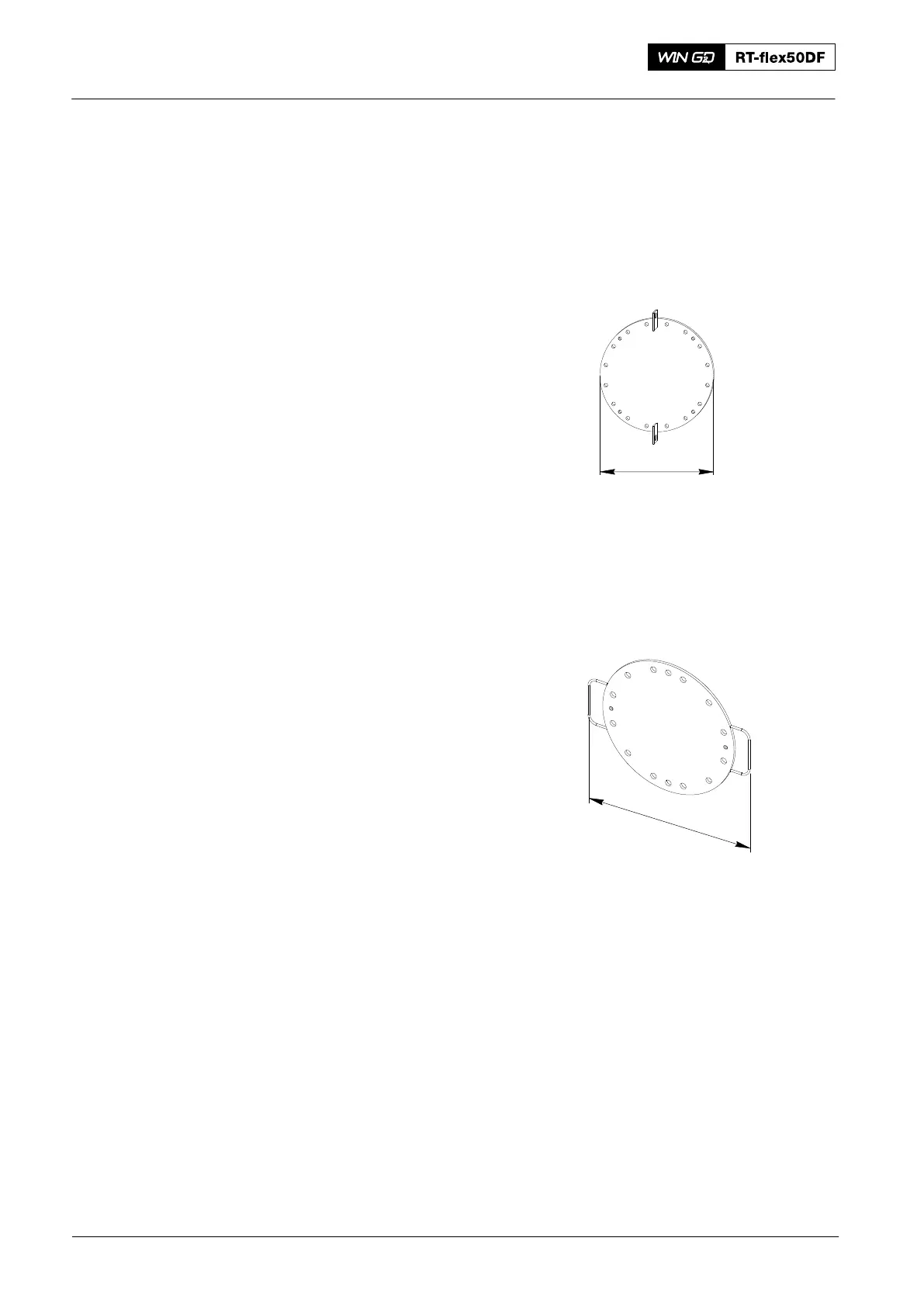

Cover to exhaust manifold outlet:
for ABB A165, X = 600 mm, 12 holes
for ABB A175, X = 820 mm, 16 holes
Cover to turbocharger inlet:
for ABB A165, X = 600 mm, 12 holes
for ABB A175, X = 630 mm, 16 holes
Cover to scavenge air receiver:
for ABB A165, X = 460 mm, 16 holes
for ABB A175, X = 820 mm, 16 holes
Cover to turbocharger outlet:
for ABB A165, X = 430 mm, 16 holes
for ABB A175, X = 600 mm, 16 holes
X
000.487/93
In case of auxiliary blower
breakdown
94656A
94656B
2
2
Covers
to connecting pipe auxiliary blower
X = 430 mm, 14 holes
Covers
to connecting pipe auxiliary blower
X = 465 mm, 14 holes
X
WCH03302
2020
Standard Tools
