TRANSMISSION
M8540Narrow, M9540Narrow, WSM
N3-S7

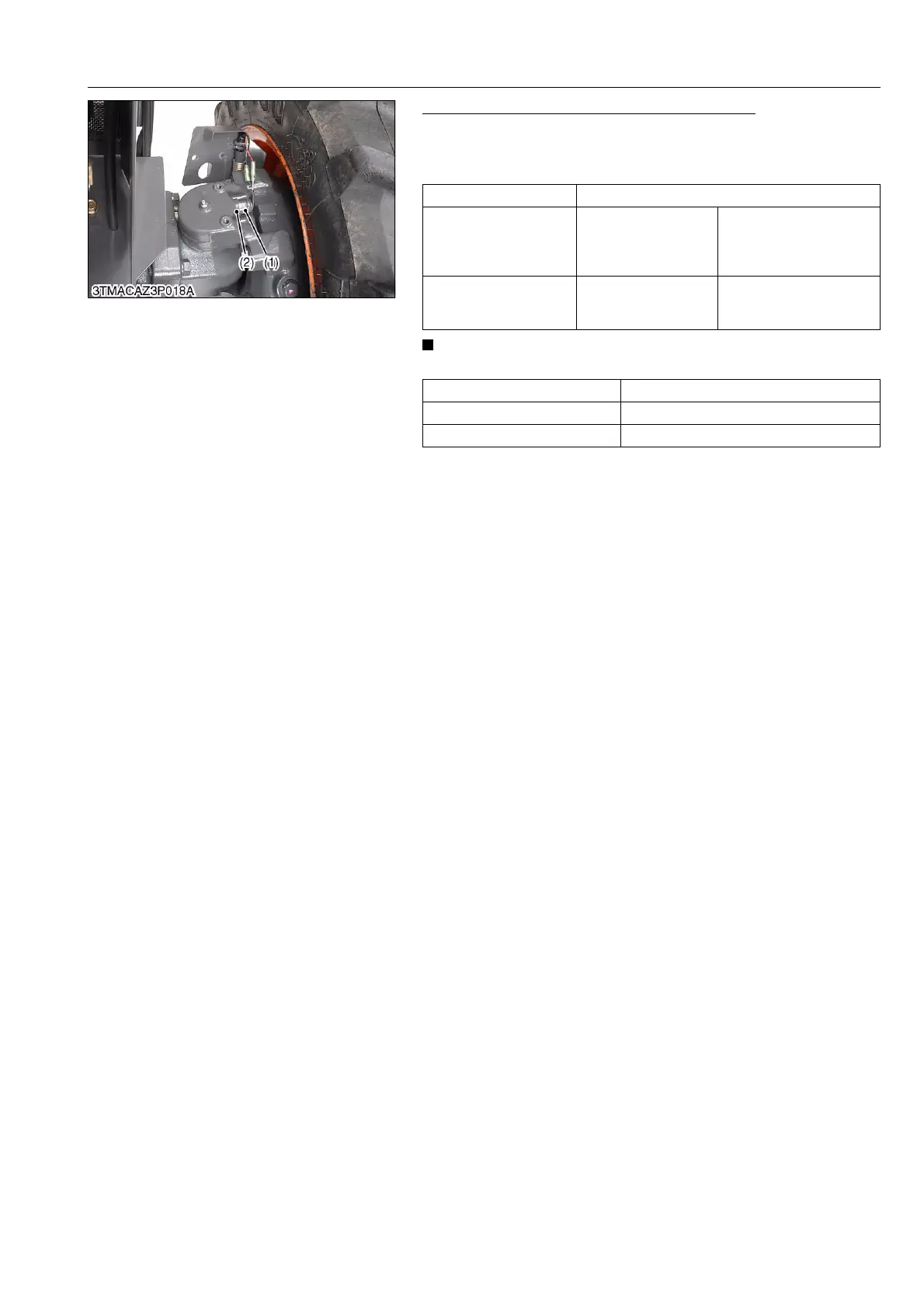

Checking Bi-speed Turn Operating Condition
1. Bi-speed turn operating conditions are below.
2. If the operating condition is not within the factory specifications,
check or adjust the related parts.
• Shim available as below.
9Y1210236TRS0007US0
Factory specification
Traveling speed
0.1 to 7.2 km/h
(0.063 to 4.4 mph)
with 480/65 R-24
rear tire
Check the instrument
panel, engine rotation
sensor and/or traveling
speed sensor.
Front wheel steered
angle
0.56 rad (32 °) and
more
Check front wheel turning
switch or adjust with
adjusting shim.
Part No. Thickness
3A481-40461 1.0 mm (0.039 in.)
3A481-40471 0.5 mm (0.02 in.)
(1) Bi-speed Turn Switch (2) Adjusting Shim
