wsm M8540NARROW - 2 Nd Shaft; 3 Rd Shaft; 4 WD Propeller Shaft

TRANSMISSION
M8540Narrow, M9540Narrow, WSM
N3-S20

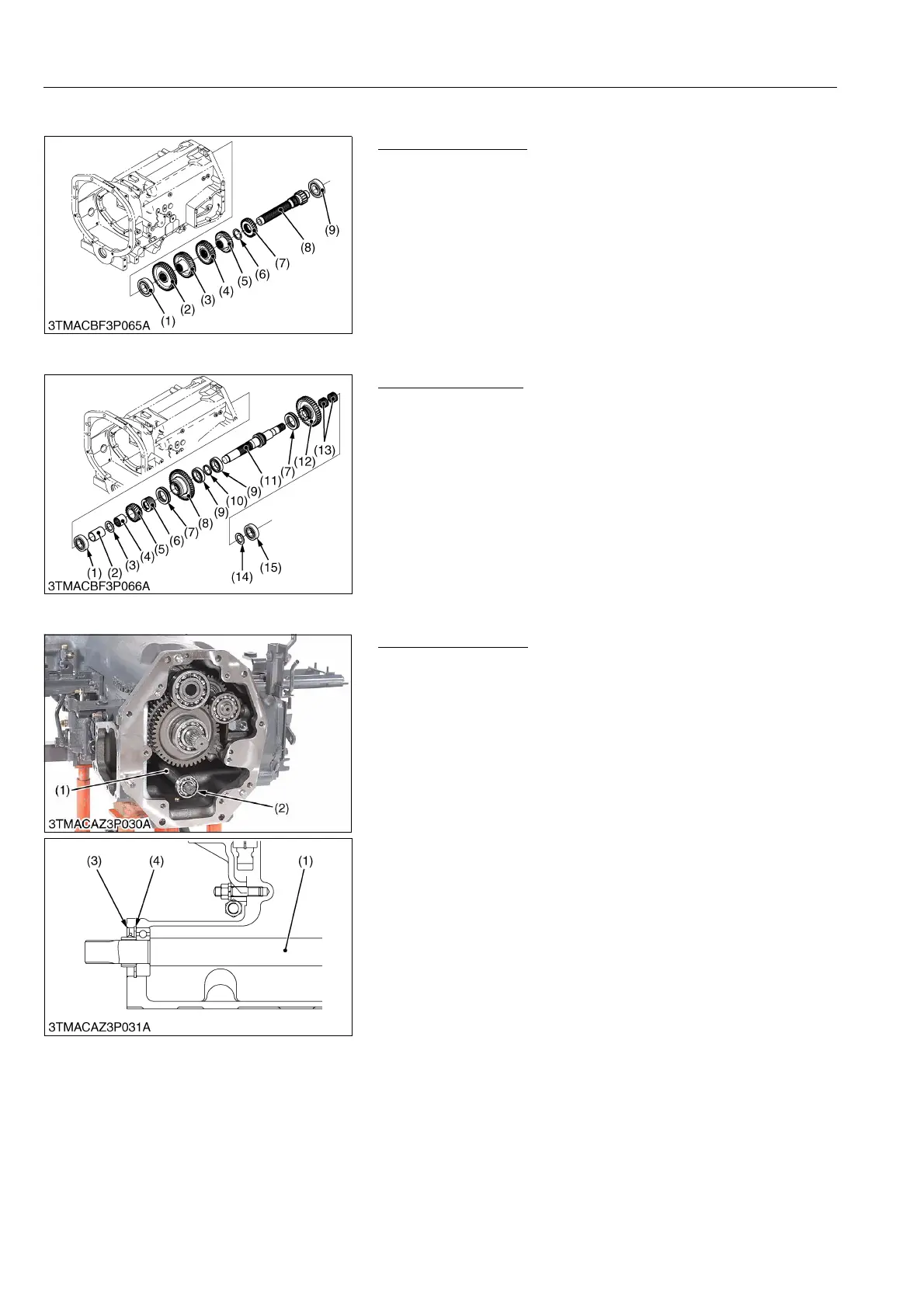

(4) 2nd Shaft
2nd Shaft Assembly
1. Remove the bearing (1) and (9).
2. Remove the gears.
9Y1210236TRS0028US0
(5) 3rd Shaft
3rd Shaft Assembly
1. Remove the bearing (1) and (15).
2. Remove the gears.
9Y1210236TRS0029US0
(6) 4WD Propeller Shaft
4WD Propeller Shaft
1. Remove the bearing (2).
2. Remove the oil seal (3) and internal circlip (4).
3. Tap out the DT propeller shaft (1) to the forward.
(When reassembling)
• Replace the oil seal (3) with new one.
9Y1210236TRS0030US0
(1) Bearing
(2) 46T Gear
(3) 41T Gear
(4) 41T Gear
(5) 46T Gear
(6) External Circlip
(7) 29T Gear
(8) 2nd Shaft
(9) Bearing
(1) Bearing
(2) Collar
(3) Thrust Collar
(4) Inner Race
(5) 27T Gear
(6) Spline Boss
(7) Shifter
(8) 44T Gear (Creep)
(9) Bearing
(10) Collar
(11) 16T Gear Shaft (2nd Shaft)
(12) 42T Gear
(13) Needle Bearing
(14) Thrust Collar
(15) Bearing
(1) DT Propeller Shaft
(2) Bearing
(3) Oil Seal
(4) Internal Circlip
KiSC issued 07, 2013 A
