wsm M8540NARROW - 8 Special Tools

GENERAL
M8540Narrow, M9540Narrow, WSM
NG-42
8. SPECIAL TOOLS
[1] SPECIAL TOOLS
Adaptor for Sliding Hammer
Application
• Use to removing the hydraulic pump drive gear pin with sliding
hammer.
9Y1210236GEG0066US0
Hydraulic pump drive gear pin
A M8 × P1.25
B 25 mm (0.98 in.)
C 50 mm (1.97 in.)
D 23 mm (0.91 in.)
E 27 mm (1.06 in.)
F M14 × P1.5

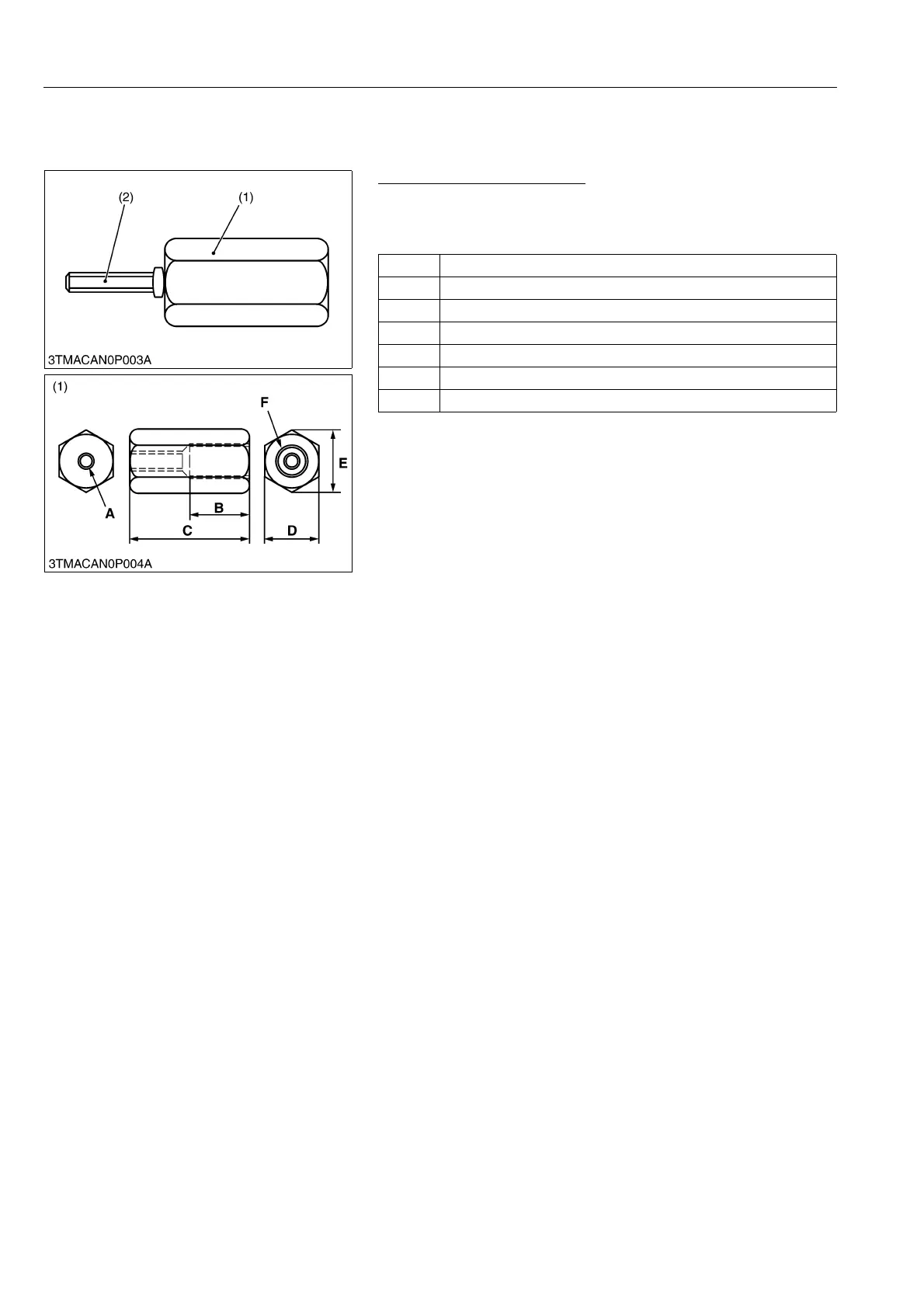

(1) Adaptor (M6) (2) Stud Bolt (M8 × P1.25)
