(4) Separating Clutch Housing Case from Transmission Case

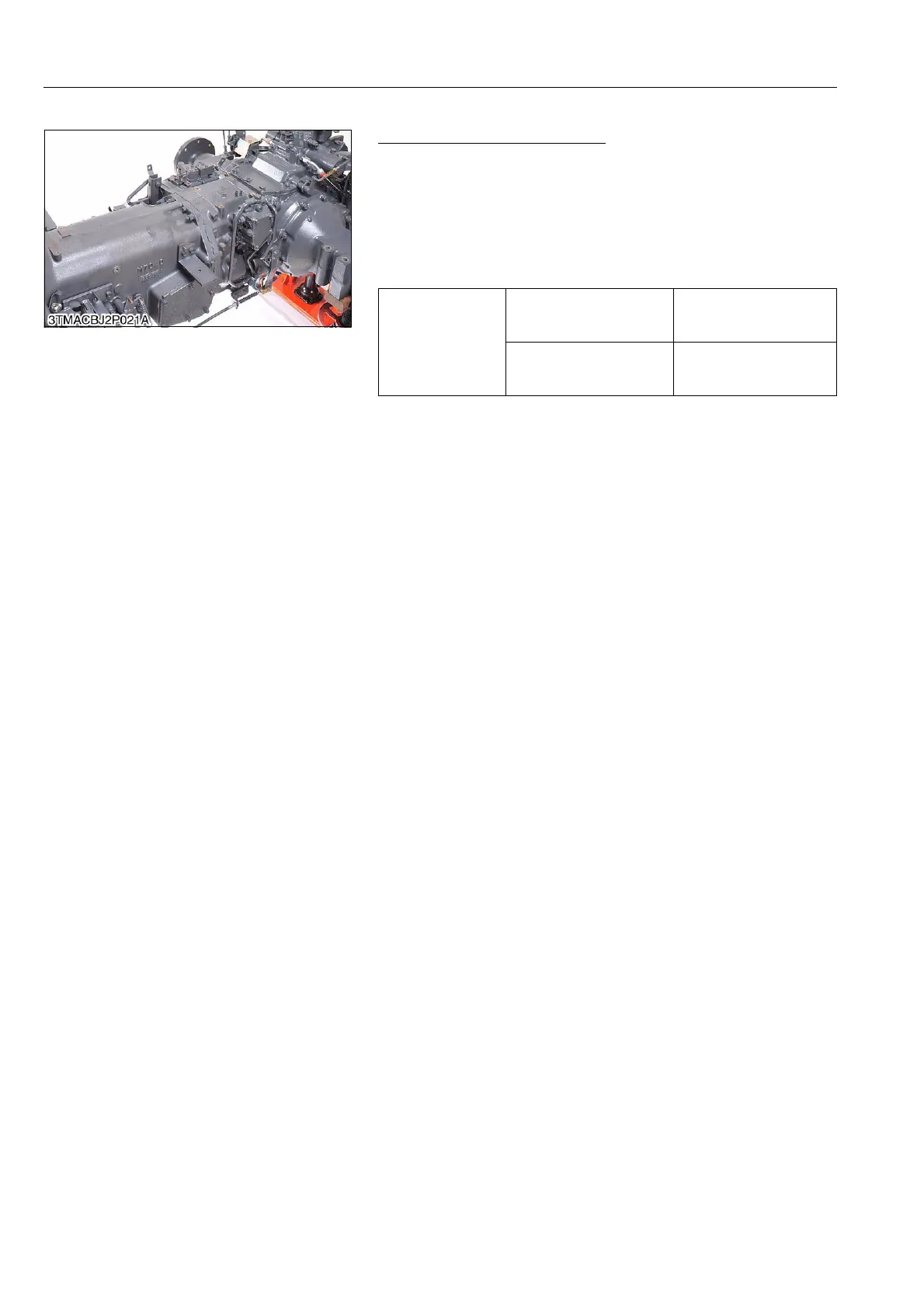

Separating Transmission Case
1. Make sure the clutch housing case and transmission case are
securely mounted on the disassembling stands.
2. Remove the transmission case mounting screws and nuts.
3. Separate the transmission case from the clutch housing.
(When reassembling)
• Apply liquid gasket (Three Bond 1206C or equivalent) to joint
face of transmission case and clutch housing case.
9Y1210236CLS0030US0
Tightening torque
Transmission case and
clutch housing mounting
screw (M10, 9T)
60.8 to 70.5 N·m
6.2 to 7.2 kgf·m
44.9 to 52.1 lbf·ft
Transmission case and
clutch housing mounting
screw, nut (M14, 9T)
166.7 to 196.1 N·m
17.0 to 20.0 kgf·m
123.0 to 144.6 lbf·ft
