wsm M8540NARROW - CABIN Model

HYDRAULIC SYSTEM
M8540Narrow, M9540Narrow, WSM
N8-S17

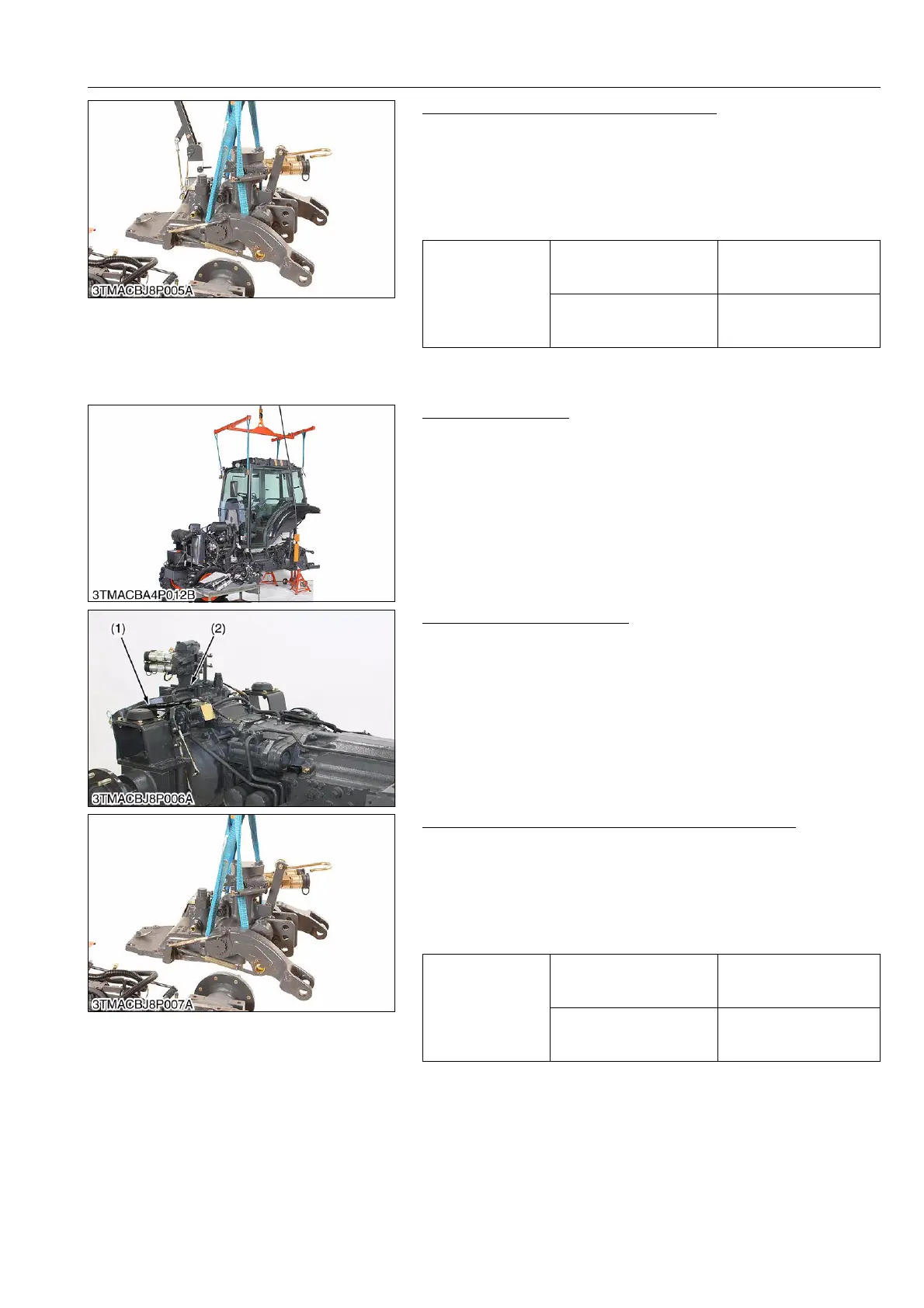

3-point Hitch Hydraulic Block Assembly
1. Remove the 3-point hitch hydraulic block mounting screws and
nuts.
2. Remove the 3-point hitch hydraulic block assembly.
(When reassembling)
• Apply liquid gasket (Three Bond 1206C or equivalent) to joint
face of transmission case and cylinder block.
9Y1210236HYS0020US0
(3) CABIN Model
Dismount the Cabin
1. Refer to the "[2] DISASSEMBLING AND ASSEMBLING" at
"N10. CABIN" section.
9Y1210236HYS0021US0
Hydraulic Cylinder and Pipe
1. Remove the cylinder hoses (1) and cylinder return hoses.
2. Remove the 3-point hitch delivery pipe (2).
9Y1210236HYS0022US0
Removing 3-point Hitch Hydraulic Block Assembly
1. Remove the 3-point hitch hydraulic block mounting screws and
nuts.
2. Remove the 3-point hitch hydraulic block assembly.
(When reassembling)
• Apply liquid gasket (Three Bond 1206C or equivalent) to joint
face of transmission case and cylinder block.
9Y1210236HYS0023US0
Tightening torque
3-point hitch hydraulic
block mounting screw
166.7 to 196.1 N·m
17.0 to 20.0 kgf·m
123.0 to 144.7 lbf·ft
3-point hitch hydraulic
block mounting nut
123.6 to 147.1 N·m
12.6 to 15.0 kgf·m
91.1 to 108.5 lbf·ft
(1) Cylinder Hose (2) 3-point Hitch Delivery PIpe
Tightening torque
3-point hitch hydraulic
block mounting screw
166.7 to 196.1 N·m
17.0 to 20.0 kgf·m
123.0 to 144.7 lbf·ft
3-point hitch hydraulic
block mounting nut
123.6 to 147.1 N·m
12.6 to 15.0 kgf·m
91.1 to 108.5 lbf·ft
KiSC issued 07, 2013 A
