TRANSMISSION
M8540Narrow, M9540Narrow, WSM
N3-S26

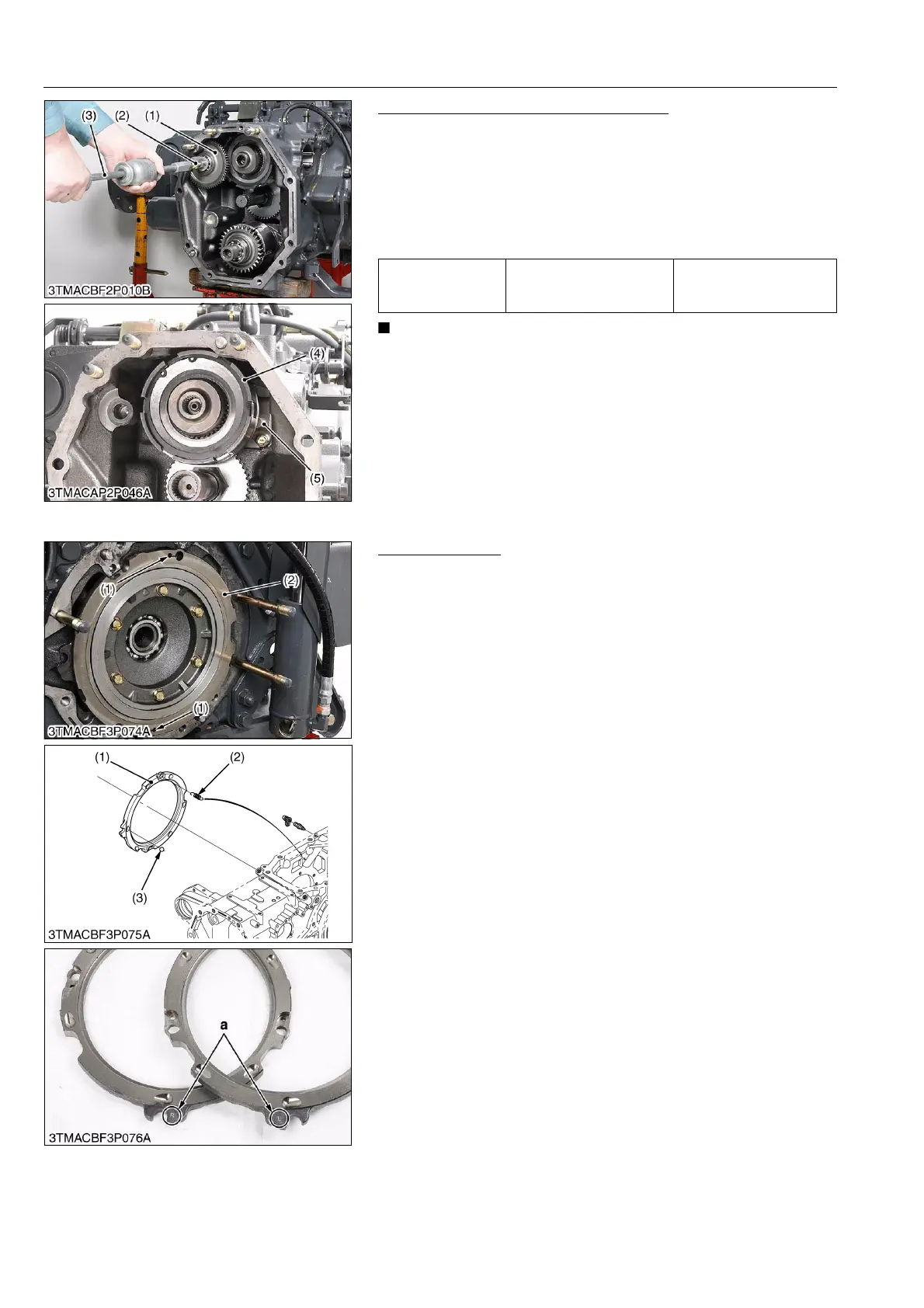

Removing PTO Clutch Pack and Holder
1. Draw out the pin (2) with sliding hammer (3). (Refer to "8.
SPECIAL TOOLS" at "G. GENERAL" section.)
2. Take out the hydraulic pump drive gear (1).
3. Remove the PTO clutch holder mounting screws.
4. Remove the PTO clutch (4) with holder (5).
(When reassembling)
• Take care not to damage the hydraulic pipes.
IMPORTANT
• After assembling the PTO clutch assembly, be sure to
check the piston operation by air-pressure.
9Y1210236TRS0037US0
(3) Removing Differential Gear and Bevel Pinion Shaft
Brake Cam Plate
1. Remove the return spring (1).
2. Remove the brake cam plate (2).
(When reassembling)
• Apply grease to the brake ball seats. (Do not apply excessively.)
• Be sure to assemble the brake cam plate (2) to the original side,
refer to the I.D. mark R and L.
9Y1210236TRS0038US0
Tightening torque
PTO clutch holder
mounting screw
23.5 to 27.4 N·m
2.4 to 2.8 kgf·m
17.4 to 20.3 lbf·ft
(1) Gear
(2) Pin
(3) Sliding Hammer
(4) PTO Clutch
(5) Holder
(1) Return Spring
(2) Brake Cam Plate
(3) Ball
a: I.D. Mark
