wsm M8540NARROW - Removing Air Conditioner Unit

CABIN
M8540Narrow, M9540Narrow, WSM
N10-S18
(4) Removing Air Conditioner Unit

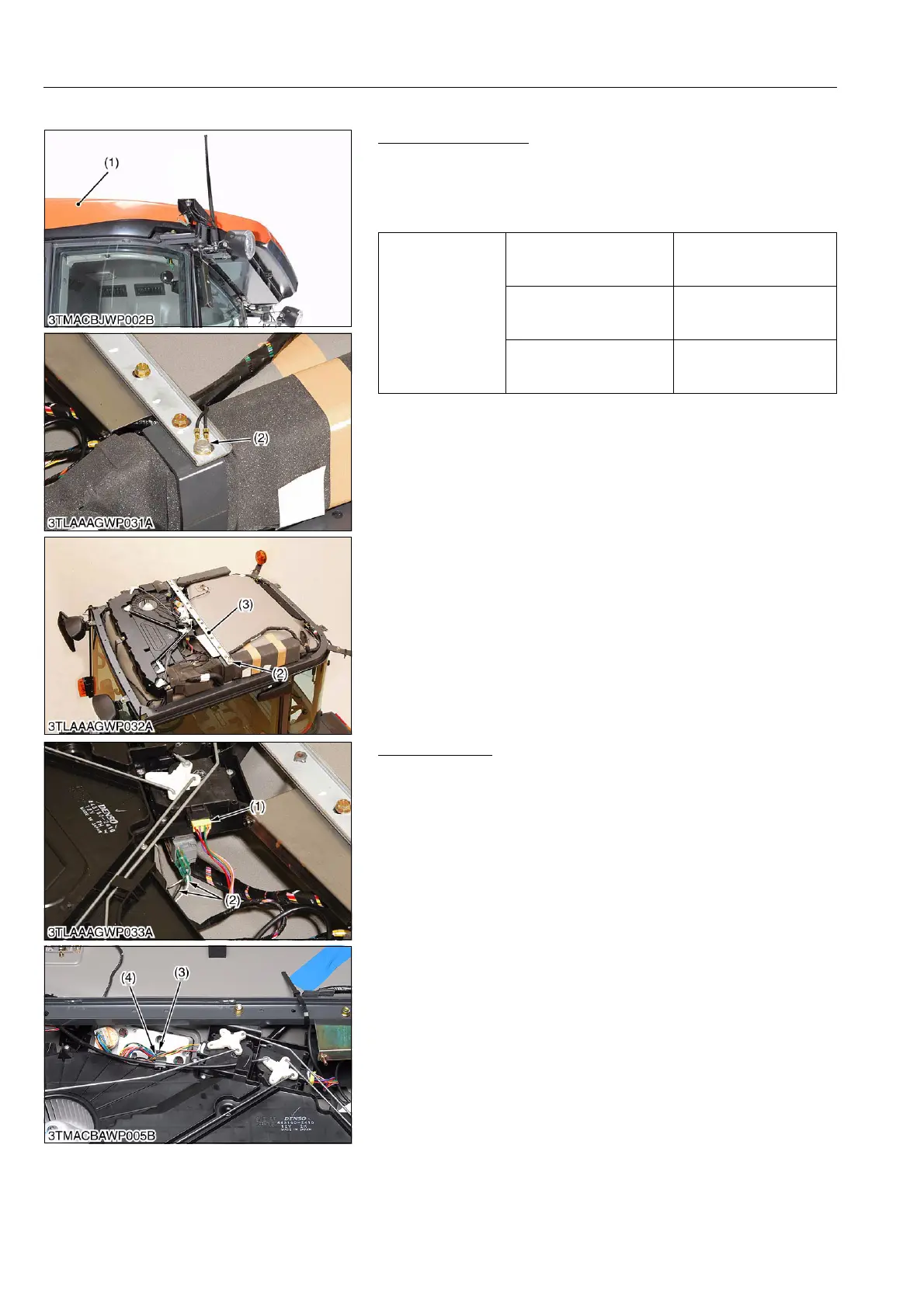

Outer Roof and Stay
1. Remove the outer roof (1).
2. Disconnect the ground cable (2).
3. Remove the stay (3).
(When reassembling)
9Y1210236CAS0033US0
Wiring Harness
1. Disconnect the temperature motor connector (1), and
thermostat connectors (2).
2. Disconnect the mode motor connector (3) and blower resister
connector (4).
9Y1210236CAS0034US0
Tightening torque
Outer roof mounting screw
3.5 to 4.0 N·m
0.36 to 0.40 kgf·m
2.6 to 2.9 lbf·ft
Cabin mounting bolt and
nut (M14, 9T)
124 to 147 N·m
12.6 to 15.0 kgf·m
91.2 to 108.4 lbf·ft
Cabin mounting bolt and
nut (M12, 7T)
77.5 to 90.2 N·m
7.9 to 9.2 kgf·m
57.2 to 66.5 lbf·ft
(1) Outer Roof
(2) Ground cable
(3) Stay
(1) Temperature Motor Connector
(2) Thermostat Connector
(3) Mode Motor Connector
(4) Blower Resister Connector
