wsm M8540NARROW - 1 Structure

HYDRAULIC SYSTEM
M8540Narrow, M9540Narrow, WSM
N8-M1
1. STRUCTURE

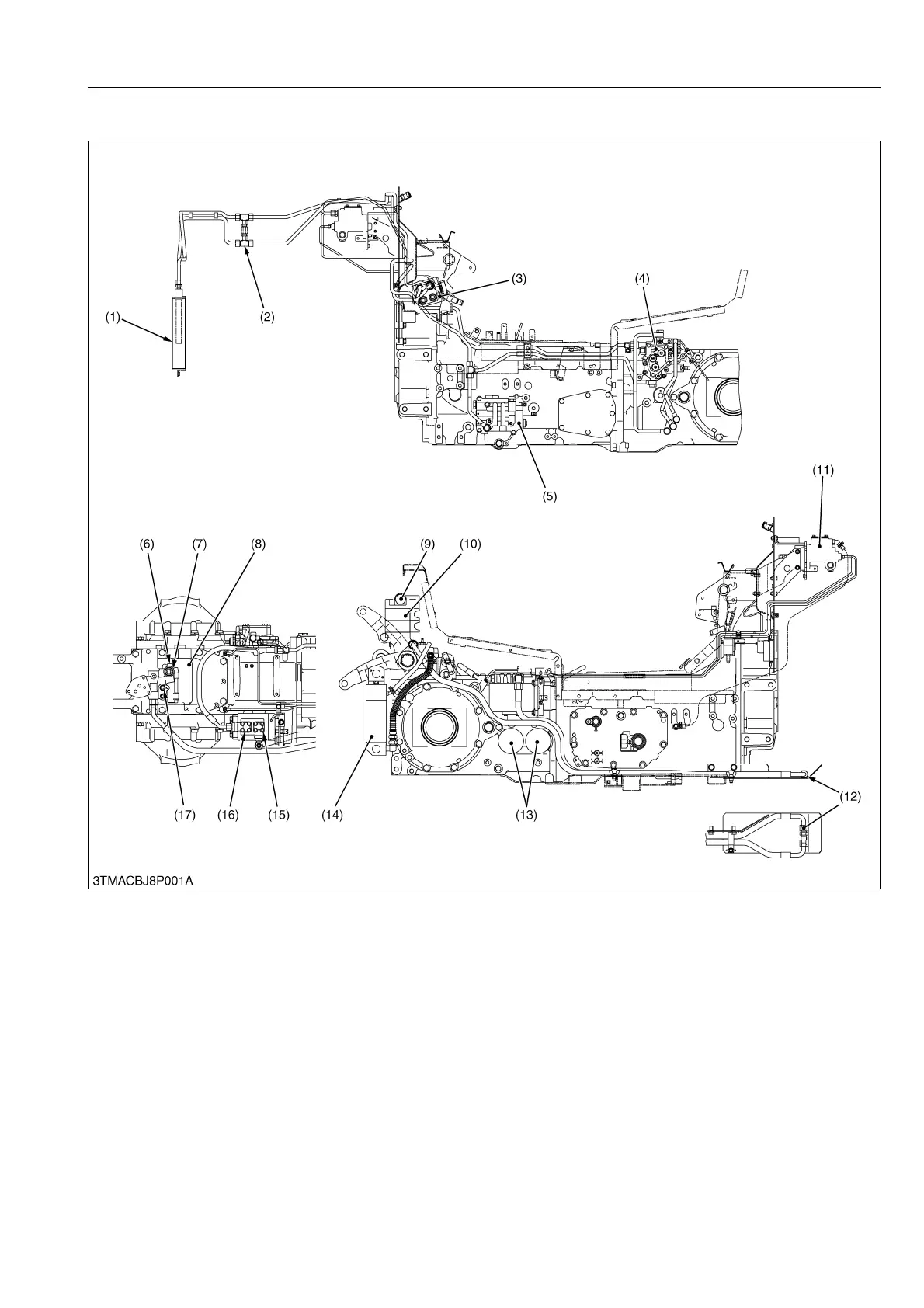

The hydraulic system is composed of a 3-point hitch, remote hydraulic control for implements, power steering,
PTO clutch, shuttle clutch, bi-speed turn clutch and hydraulic brakes shown above.
9Y1210236HYM0001US0
(1) Oil Cooler
(2) Oil Cooler Check Valve
(3) Power Steering Cylinder
(4) Solenoid Valve Assembly
(PTO, 4WD and Bi-speed
Turn)
(5) Shuttle Valve
(6) Relief Valve (for 3-point Hitch)
(7) Safety Valve
(for 3-point Hitch)
(8) Top Cover
(3-point Hitch Hydraulic Block)
(9) Flow Priority Valve
(M8540Narrow)
Valve Cover
(M9540Narrow Cabin)
(10) Auxiliary Control Valve
(11) Brake Master Cylinder
(12) Hydraulic Front Outlet
(13) Oil Filter Cartridge
(14) Hydraulic Cylinder
(for 3-point Hitch)
(15) Hydraulic Pump
(for 3-point Hitch and Auxiliary
Control Valve)
(16) Hydraulic Pump (for Power
Steering, Shuttle, 4WD /
Bi-speed Turn and PTO)
(17) Lowering Speed Adjusting
Valve
KiSC issued 07, 2013 A
