CABIN
M8540Narrow, M9540Narrow, WSM
N10-S17

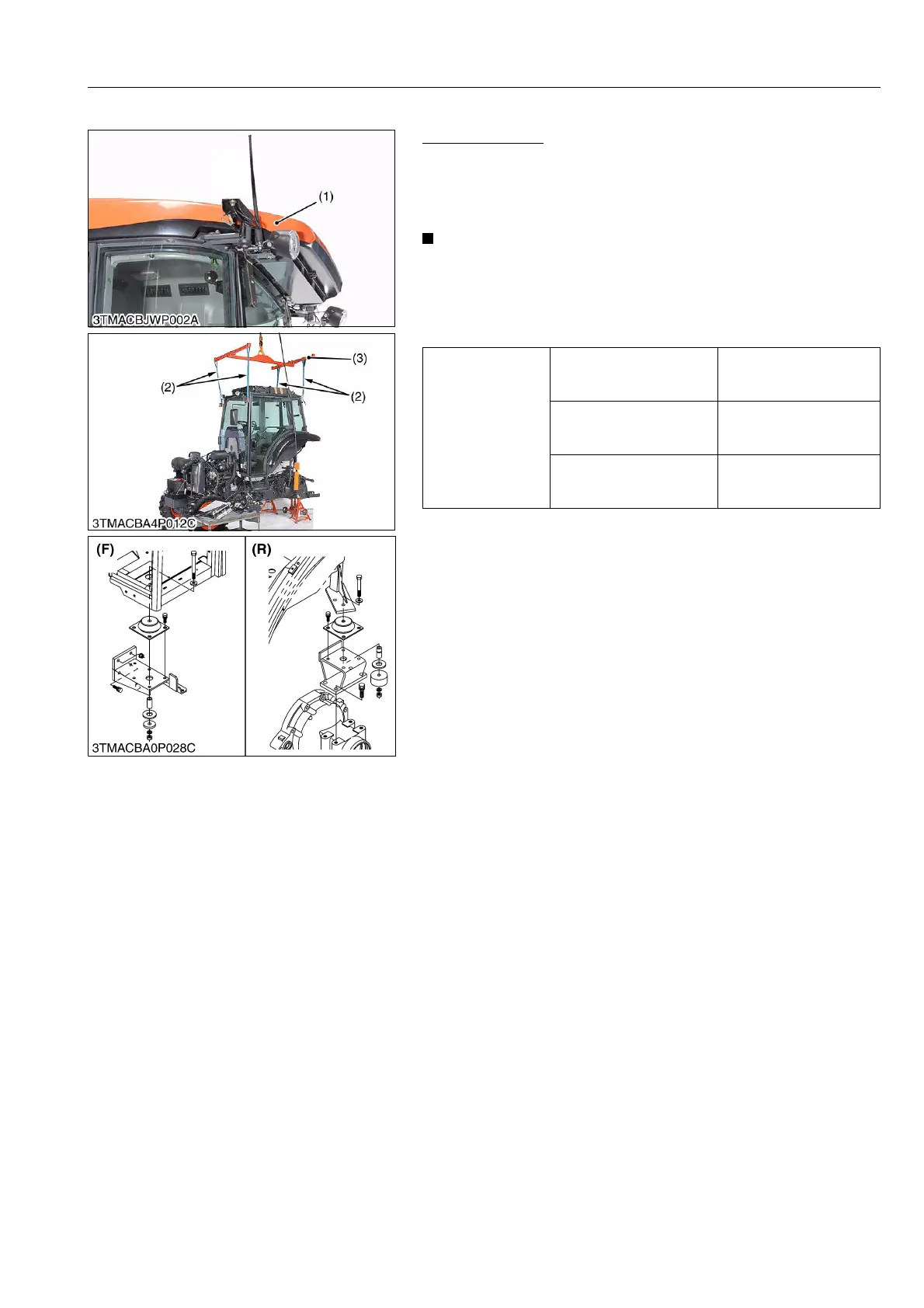

(2) Dismounting Cabin
Cabin Assembly
1. Remove the outer roof (1).
2. Suspend the cabin with nylon straps (2) and jig (3).
3. Remove the cabin mounting bolts and nuts.
4. Dismount the cabin assembly from the tractor.
• Lift the cabin while making sure it does not catch on
anything.
(When reassembling)
• Be sure to install the washers and mount rubbers, etc. in there
original positions.
9Y1210236CAS0031US0
(3) Removing and Disassembling Compressor Assembly
• Refer to the "10. CABIN" section.
9Y1210236CAS0032US0
Tightening torque
Outer roof mounting screw
3.5 to 4.0 N·m
0.36 to 0.40 kgf·m
2.6 to 2.9 lbf·ft
Cabin mounting bolt and
nut (M14, 9T)
124 to 147 N·m
12.6 to 15.0 kgf·m
91.2 to 108.4 lbf·ft
Cabin mounting bolt and
nut (M12, 7T)
77.5 to 90.2 N·m
7.9 to 9.2 kgf·m
57.2 to 66.5 lbf·ft
(1) Outer Roof
(2) Nylon Strap
(3) Jig
(F) Front Side
(R) Rear Side
