wsm M8540NARROW - Disassembling and Assembling; Preparation for Separating Cabin from Tractor

CABIN
M8540Narrow, M9540Narrow, WSM
N10-S10

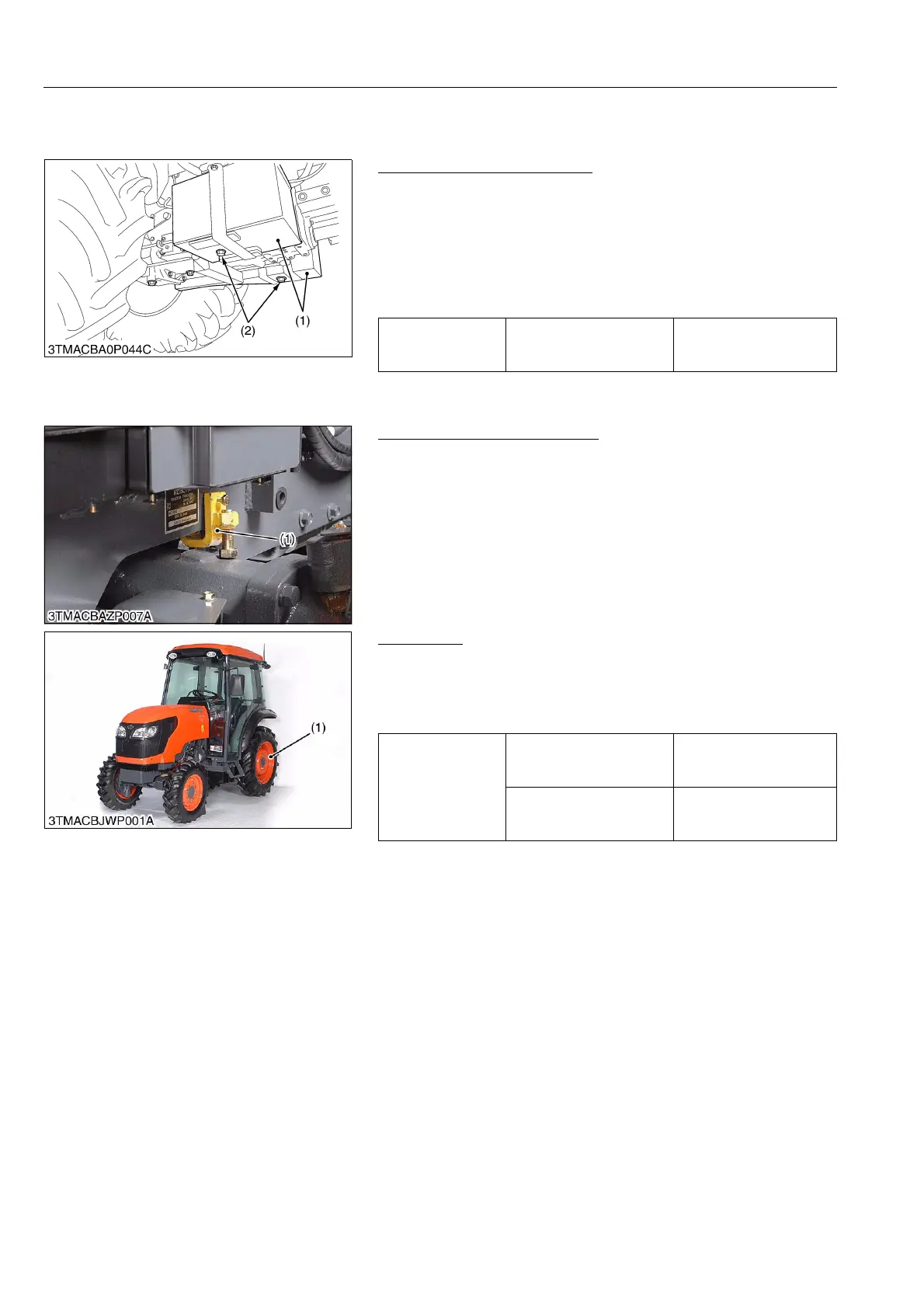

[2] DISASSEMBLING AND ASSEMBLING
(1) Preparation for Separating Cabin from Tractor
Draining the coolant and fuel
1. Refer to "7. CHECKING AND MAINTENANCE" and "4.
LUBRICATIONS, FUEL AND COOLANT" at "NG. GENERAL"
section.
2. Place the oil pans under the fuel tanks (1).
3. To drain the fuel, remove the drain plugs (2).
(When refilling)
• Be sure to tighten the plugs (2).
9Y1210236CAS0018US0
Front Axle Rocking Restrictor
1. Install the front axle rocking restrictor (1) to the front axle
bracket on both sides.
9Y1210236CAS0019US0
Rear Wheel
1. Set the disassembling stand under the transmission case
secure.
2. Remove the both rear wheels (1).
(When reassembling)
9Y1210236CAS0020US0
Tightening torque Drain plug
196.2 to 225.5 N·m
20.0 to 23.0 kgf·m
144.7 to 166.3 lbf·ft
(1) Fuel Tank (2) Drain Plug
(1) Front Axle Rocking Restrictor
Tightening torque
Rear wheel mounting nut
(Steel disk)
244 N·m
24.9 kgf·m
180 lbf·ft
Rear wheel mounting nut
(Cast iron disk)
259.9 to 304.0 N·m
26.5 to 31.0 kgf·m
191.7 to 224.2 lbf·ft
(1) Rear Wheel
KiSC issued 07, 2013 A
