CABIN
M8540Narrow, M9540Narrow, WSM
N10-S11
Bonnet

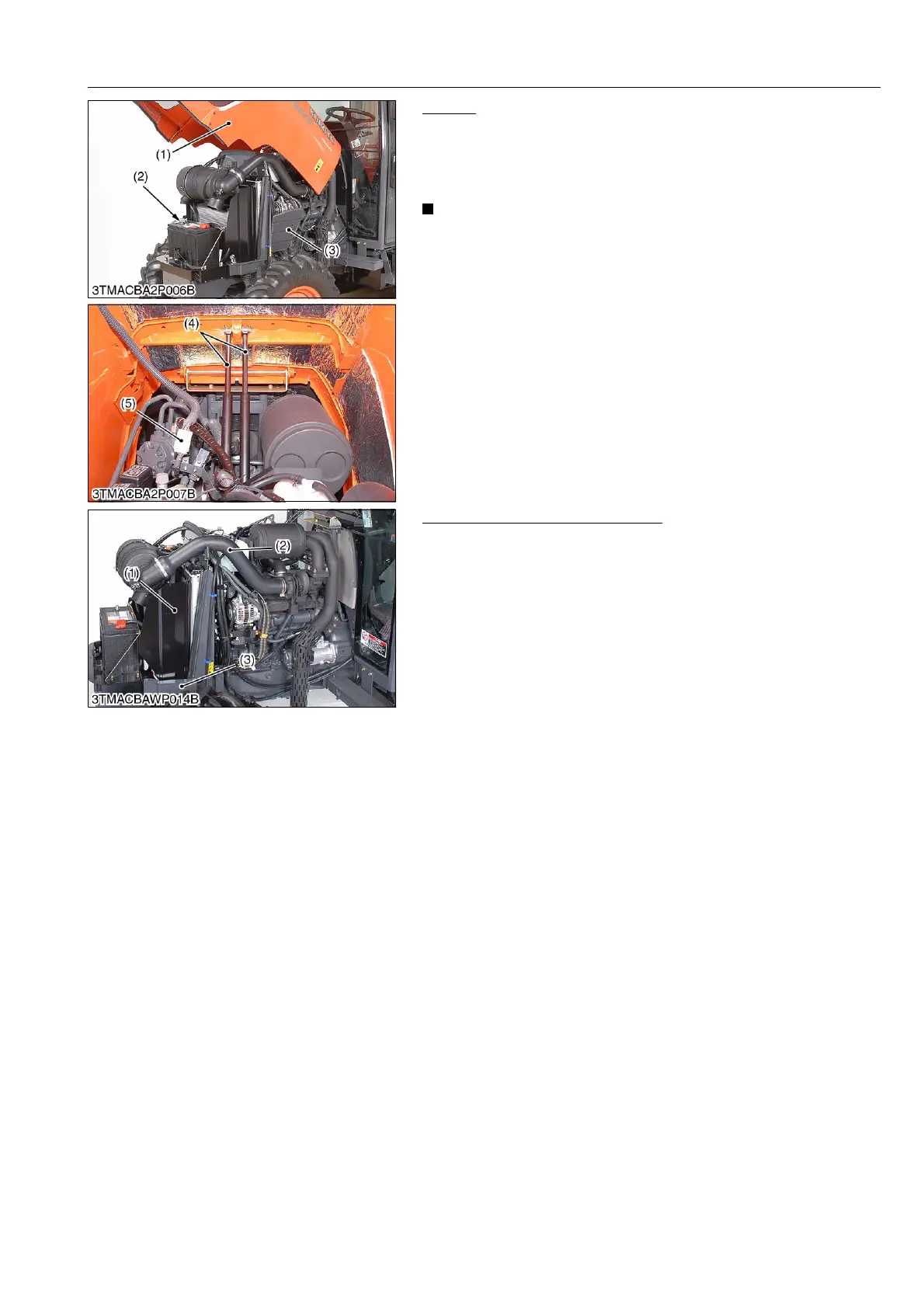

1. Open the bonnet (1) and remove the battery negative cable (2).
2. Disconnect the head light connector (5).
3. Disconnect the bonnet cylinder (4) and remove the bonnet (1)
and side skirts (3) both side.
IMPORTANT
• When disconnecting the battery cords, disconnect the
negative cord first, when connecting, positive cord first.
9Y1210236CAS0021US0
Side Panel and Air Cleaner Hose
1. Remove the both side cover guides (3).
2. Remove the both side panels (1).
3. Remove the air cleaner hose (2).
9Y1210236CAS0022US0
(1) Bonnet
(2) Battery Negative Cable
(3) Side Skirt
(4) Bonnet Cylinder
(5) Head Light Connector
(1) Side Panel
(2) Air Cleaner Hose
(3) Side Cover Guide
