CABIN
M8540Narrow, M9540Narrow, WSM
N10-S12

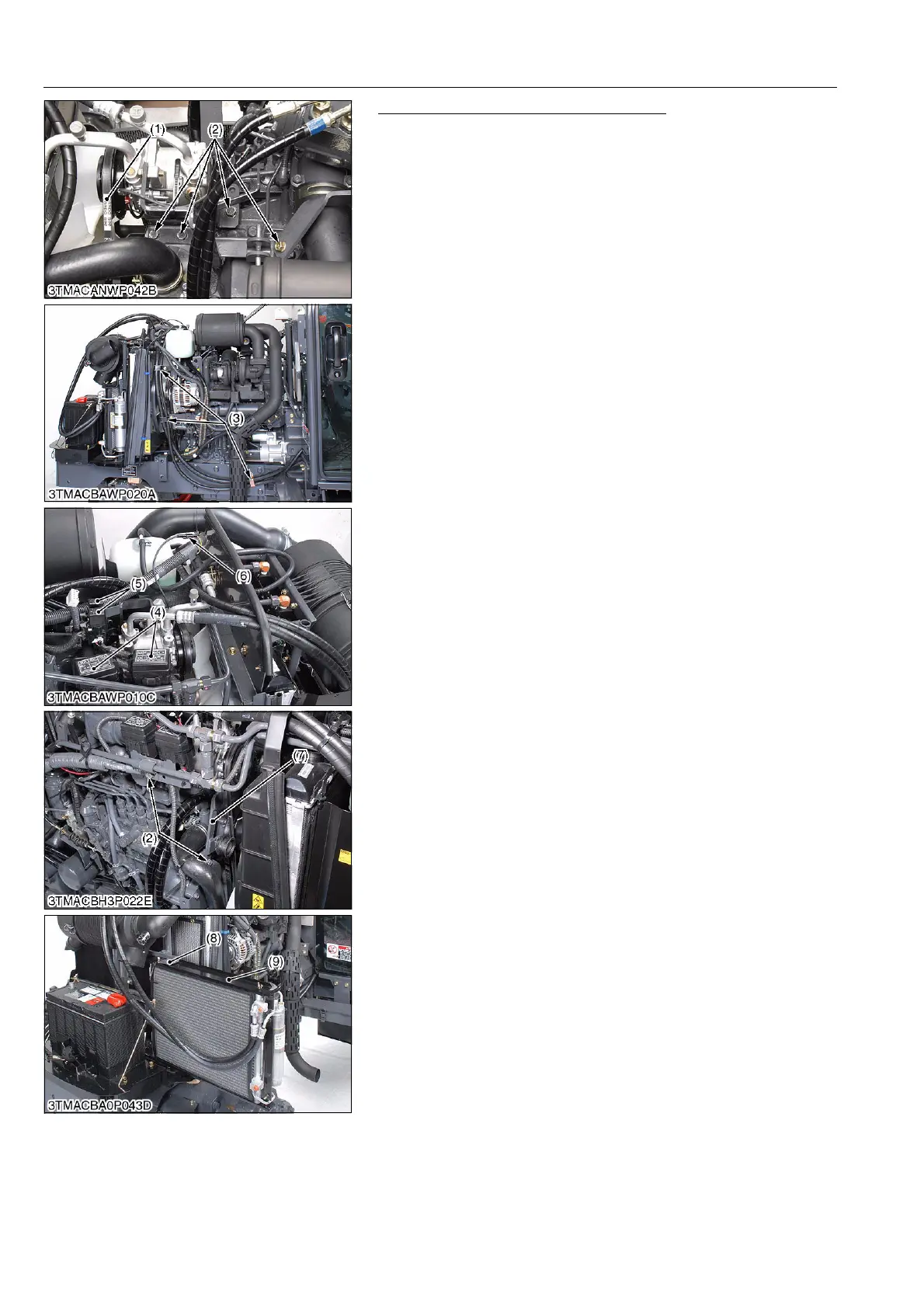

Removing Compressor and Condenser
Q Without discharging the refrigerant from system
1. Set the disassembling stand under the front axle case.
2. Remove the front wheel L.H..
3. Remove the A/C drive belt (1).
4. Remove the hose clamps (3).
5. Remove the slow blow fuse boxes (4) and relays (5).
6. Disconnect 1P connector (6) of magnetic clutch.
7. Remove the compressor bracket (7) mounting screw (2) from
engine.
8. Slide out the condenser (9) after remove the hose retainer (8).
(To be continued)
(1) A/C Drive Belt
(2) Screw
(3) Hose Clamp
(4) Slow Blow Fuse Box
(5) Relay
(6) 1P Connector (Magnetic Clutch)
(7) Compressor Bracket
(8) Hose Retainer
(9) Condenser
To Next Page
