CABIN
M8540Narrow, M9540Narrow, WSM
N10-S13
(Continued)

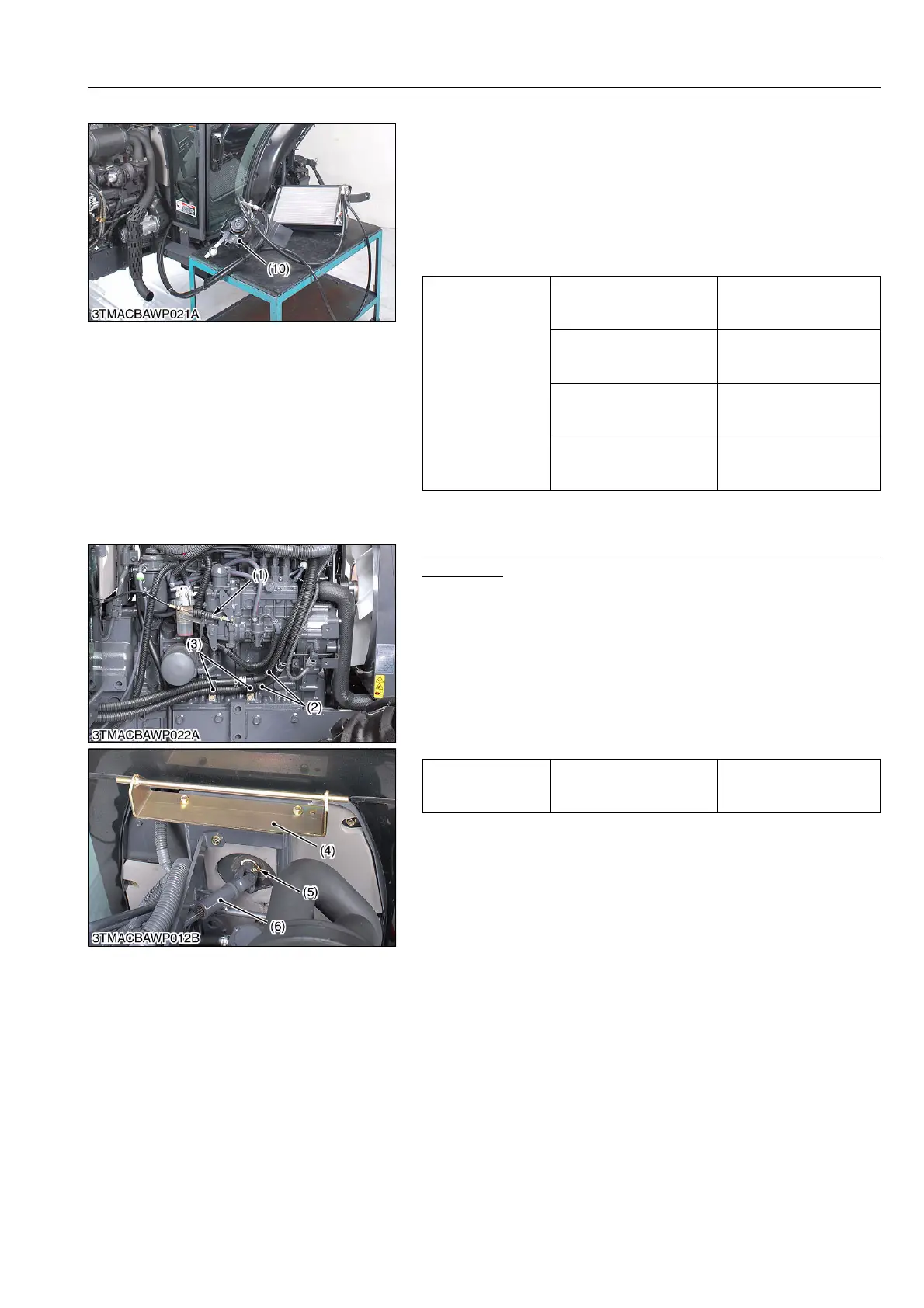

9. Remove the compressor (10) with hoses and compressor
bracket.
(When reassembling)
• Take care not damage the air condenser fin.
• After reassembling the compressor, be sure to adjust the air
conditioner belt tension.
(Refer to "7. CHECK AND MAINTENANCE" at "NG.
GENERAL" section.)
9Y1210236CAS0023US0
Heater Hose, Accelerator Wire, Bonnet Support and Steering
Joint Shaft
1. Remove the hose clamps (3).
2. Disconnect the heater hoses (2).
3. Disconnect the accelerator wire (1).
4. Remove the bonnet support (4).
5. Remove the steering joint shaft mounting screw (5) then
disconnect the steering joint shaft (6) from steering joint.
(When reassembling)
• Be sure to fix the heater hose to the original position. Note the
inlet hose and outlet hoses.
9Y1210236CAS0024US0
Tightening torque
Front wheel mounting nut
259.9 to 304.0 N·m
26.5 to 31.0 kgf·m
191.7 to 224.2 lbf·ft
Compressor bracket
mounting screw (M8) to
aluminum parts
17.7 to 20.5 N·m
1.8 to 2.1 kgf·m
13.1 to 15.1 lbf·ft
Compressor bracket
mounting screw (M8) to
ordinariness parts
23.6 to 27.4 N·m
2.4 to 2.8 kgf·m
17.4 to 20.2 lbf·ft
Compressor bracket
mounting screw (M10) to
ordinariness parts
48.1 to 55.8 N·m
4.9 to 5.7 kgf·m
35.5 to 41.2 lbf·ft
(10) Compressor
Tightening torque
Steering joint shaft
mounting screw
23.6 to 27.4 N·m
2.4 to 2.8 kgf·m
17.4 to 20.2 lbf·ft
(1) Accelerator Wire
(2) Heater Hose
(3) Hose Clamp
(4) Bonnet Support
(5) Screw
(6) Steering Joint Shaft
To Next Page
