CABIN
M8540Narrow, M9540Narrow, WSM
N10-S14

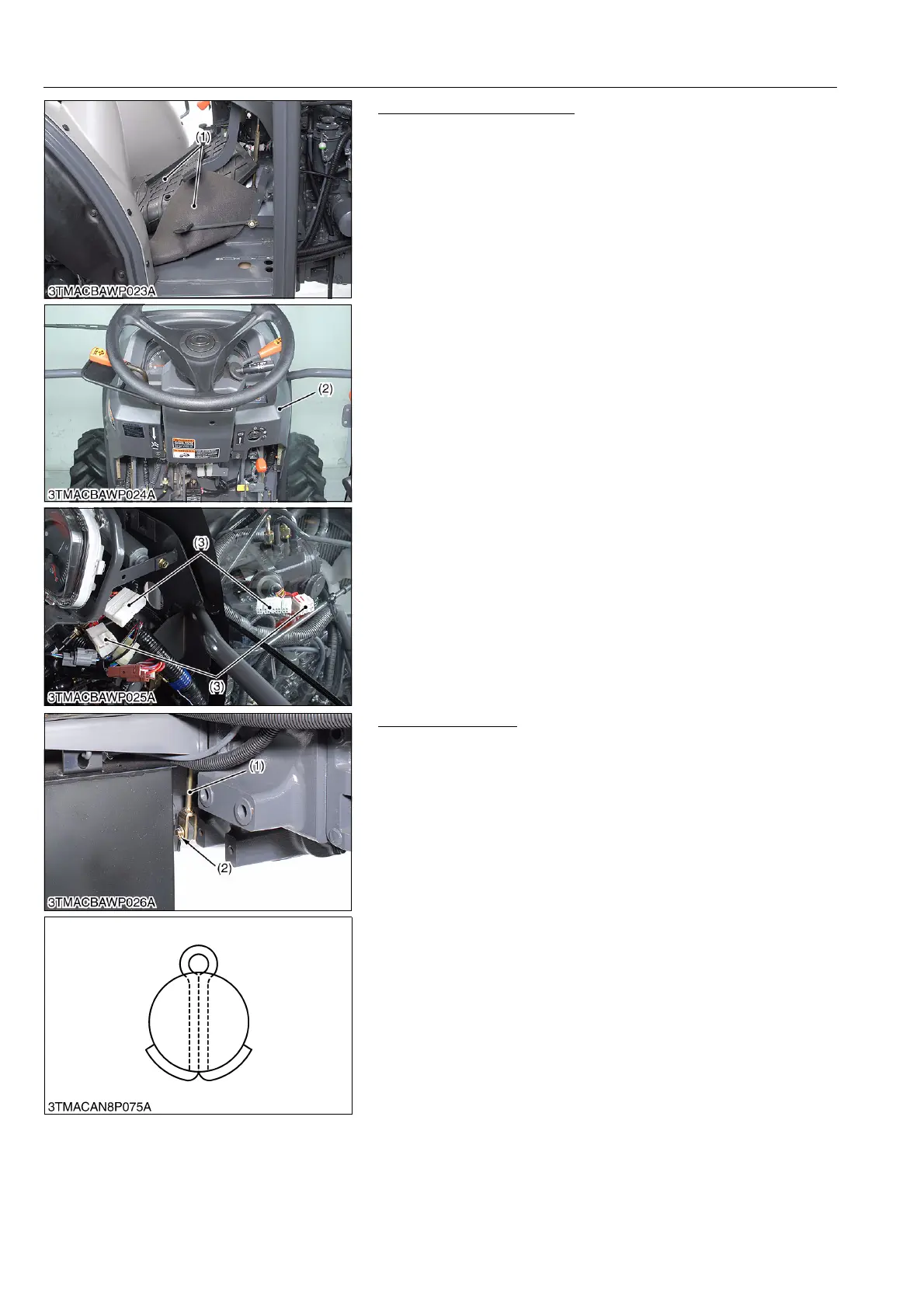

Floor Mat and Panel Cover
1. Remove the floor mat (1).
2. Remove the panel cover (2).
3. Disconnect the harness connector (3) and remove the
connector (3) from the cabin.
9Y1210236CAS0025US0
Parking Brake Rod
1. Remove the parking brake rod R.H. (1).
(When reassembling)
• Replace the cotter pins with the new one.
• Divide the cotter pin as shown in this figure.
9Y1210236CAS0026US0
(1) Floor Mat
(2) Panel Cover
(3) Connector
(1) Parking Brake Rod (R.H.) (2) Cotter Pin
