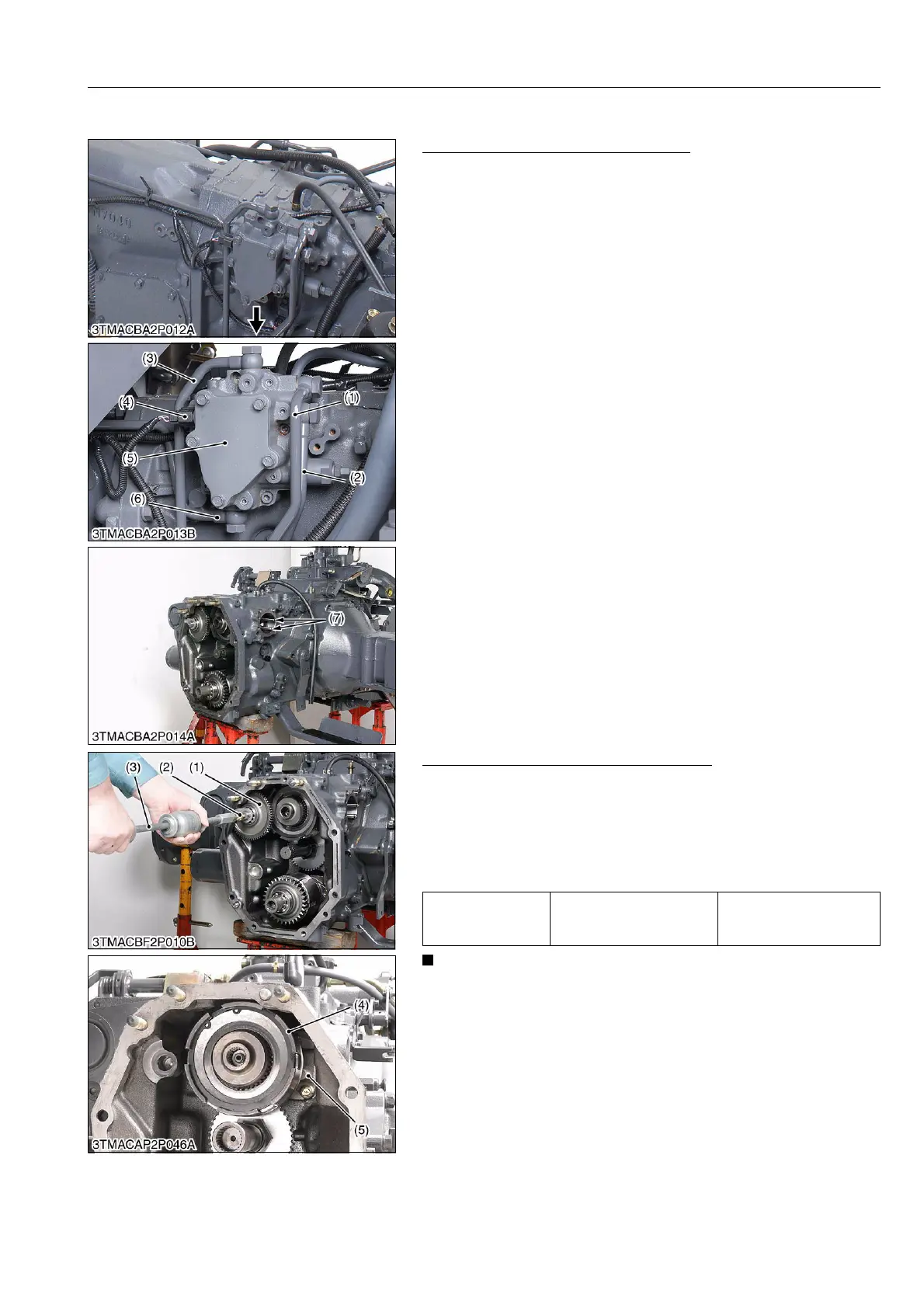

[2] REMOVING PTO CLUTCH PACK AND HOLDER
Removing Solenoid Valve Assembly
1. Prepare a can for hydraulic pipes.
2. Remove the hydraulic pipe (2WD) (1).
3. Remove the hydraulic pipe (4WD) (2).
4. Remove the hydraulic pipe (Bi-speed turn) (3).
5. Remove the hydraulic pipe (Delivery) (6).
6. Remove the solenoid valve assembly (5).
(When reassembling)
• Apply transmission fluid to hydraulic pipes (PTO) (7).
• Remove the two hydraulic pipes from the PTO clutch holder.
• Insert both the hydraulic pipes into the solenoid valve assembly
holes.
• Replace the hydraulic pipes with new one.
9Y1210236CLS0031US0
Removing PTO Clutch Pack and Holder
1. Draw out the pin (2) with sliding hammer (3).
2. Take out the hydraulic pump drive gear (1).
3. Remove the PTO clutch holder mounting screws.
4. Remove the PTO clutch (4) with holder (5).
(When reassembling)
• Take care not to damage the hydraulic pipes.
IMPORTANT
• After assembling the PTO clutch assembly, be sure to
check the piston operation by air-pressure.
9Y1210236CLS0032US0
(1) Hydraulic Pipe (2WD)
(2) Hydraulic Pipe (4WD)
(3) Hydraulic Pipe (Bi-speed Turn)
(4) Connector
(5) Solenoid Valve Assembly
(6) Hydraulic Pipe (Delivery)
(7) Hydraulic Pipe (PTO)
Tightening torque
PTO clutch holder
mounting screw
23.5 to 27.4 N·m
2.4 to 2.8 kgf·m
17.4 to 20.3 lbf·ft
(1) Gear
(2) Pin
(3) Sliding Hammer
(4) PTO Clutch
(5) Holder
