GENERAL
M8540Narrow, M9540Narrow, WSM
NG-32

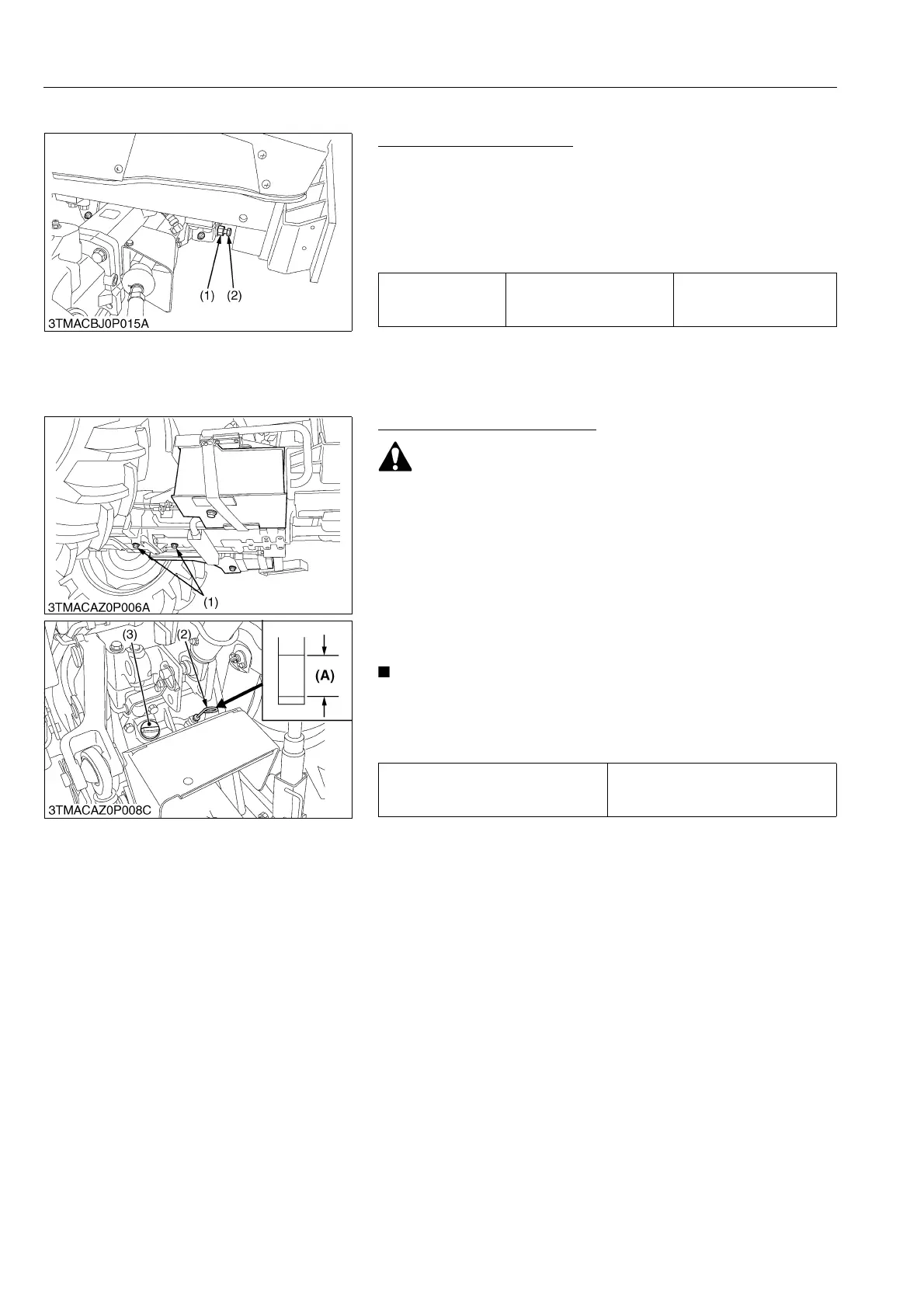

[8] CHECK POINT OF EVERY 600 HOURS
Adjusting Front Axle Pivot
1. If the front axle pivot pin adjustment is not correct, front wheel
vibration can occur causing vibration in the steering wheel.
Q Adjusting Procedure
1. Loosen the lock nut (1), screw in the adjusting screw (2) until
seated, then tighten the screw (2) with an additional 1/6 turn.
Then tighten the lock nut (1).
9Y1210236GEG0043US0
[9] CHECK POINTS OF EVERY 1000 HOURS
Changing Transmission Fluid
CAUTION
• Allow engine to cool down sufficiently, oil can be hot and
can burn.
1. To drain the used oil, remove the drain plug (1) at the bottom of
the transmission case and drain the oil completely into the oil
pan.
2. After draining reinstall the drain plug.
3. Fill with the new KUBOTA SUPER UDT fluid up to the upper
notch on the dipstick (2).
4. After running the engine for a few minutes, stop it and check the
oil level again; add oil to prescribed level.
IMPORTANT
• Do not operate the tractor immediately after changing the
transmission fluid.
Run the engine at medium speed for a few minutes to
prevent damage to the transmission.
9Y1210236GEG0013US0
Tightening torque Lock nut
98.1 to 147.1 N·m
10.0 to 15.0 kgf·m
72.3 to 108.5 lbf·ft
(1) Lock Nut (2) Adjusting Screw
Oil capacity
52 L
54.9 U.S.qts
46 Imp.qts
(1) Drain Plug
(2) Dipstick
(3) Oil Filling Plug
(A) Oil level is acceptable within the
range.
KiSC issued 07, 2013 A
