REAR AXLE
M8540Narrow, M9540Narrow, WSM
N4-S6

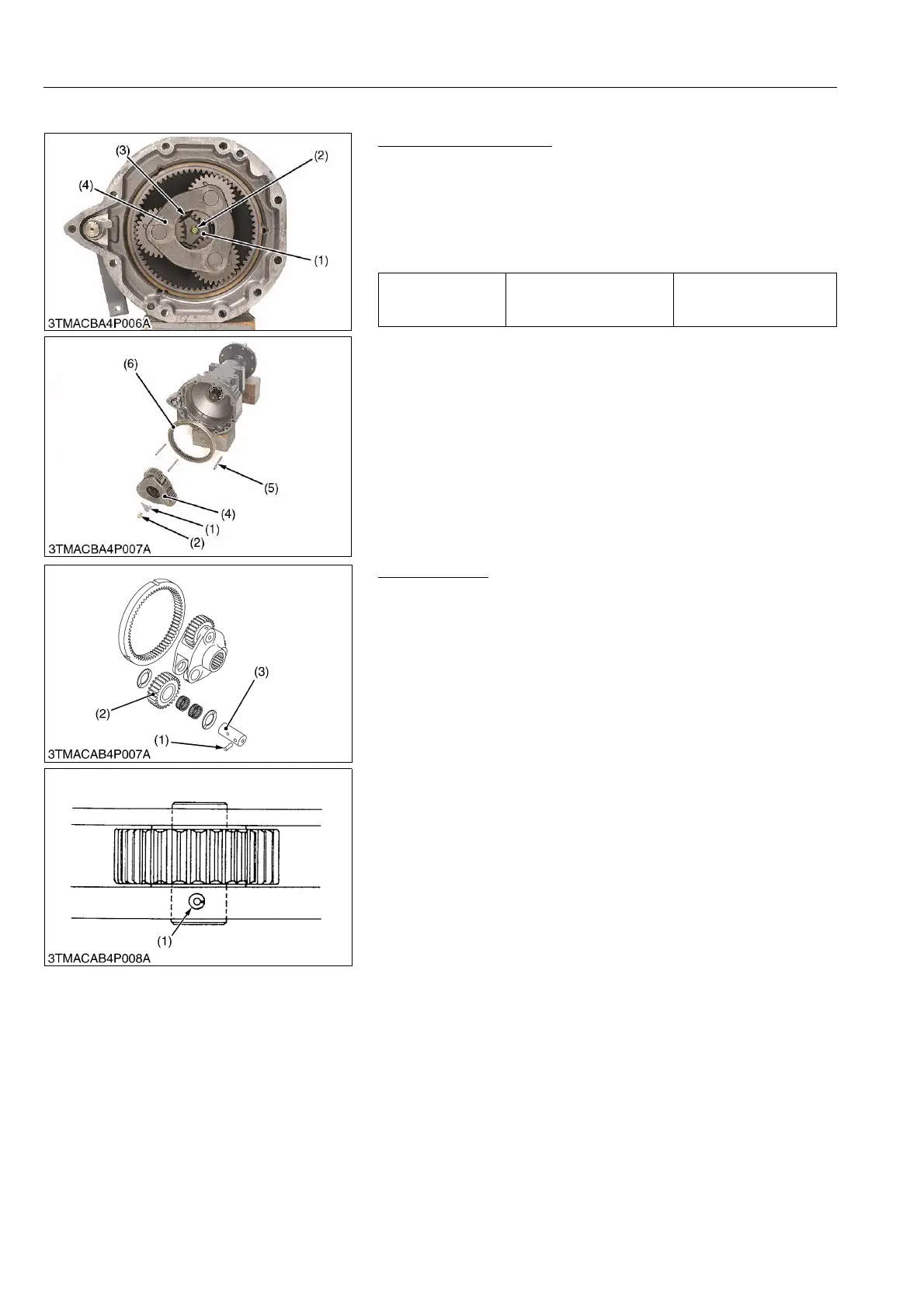

[3] DISASSEMBLING REAR AXLE CASE
Planetary Gear Support
1. Remove the retainer plate mounting screw (2) and retainer (1).
2. Remove the external circlip (3).
3. Carefully remove the planetary gear support (4).
4. Remove the internal gear (6) and pins (5).
(When reassembling)
• Be sure to insert the retainer plate (1).
9Y1210236RAS0010US0
Planetary Gear
1. Tap the roll pin (1) into the planetary gear shaft (3).
2. Draw out the planetary gear shaft (3), and remove the planetary
gear (2).
3. Tap out the roll pin from the planetary gear shaft.
(When reassembling)
• Apply transmission fluid to the inner surface of planetary gear
(2).
• Tap in the roll pin (1) as shown in the figure.
9Y1210236RAS0011US0
Tightening torque
Retainer plate mounting
screw
60.8 to 70.6 N·m
6.2 to 7.2 kgf·m
44.9 to 72.3 lbf·ft
(1) Retainer Plate
(2) Screw
(3) External Circlip
(4) Planetary Gear Support
(5) Pin
(6) Internal Gear
(1) Roll Pin
(2) Planetary Gear
(3) Planetary Gear Shaft
To Next Page
