wsm M8540NARROW - 4 WD; Bi-SPEED TURN CLUTCH; Removing 4 WD; Bi-Speed Turn Clutch

TRANSMISSION
M8540Narrow, M9540Narrow, WSM
N3-S22

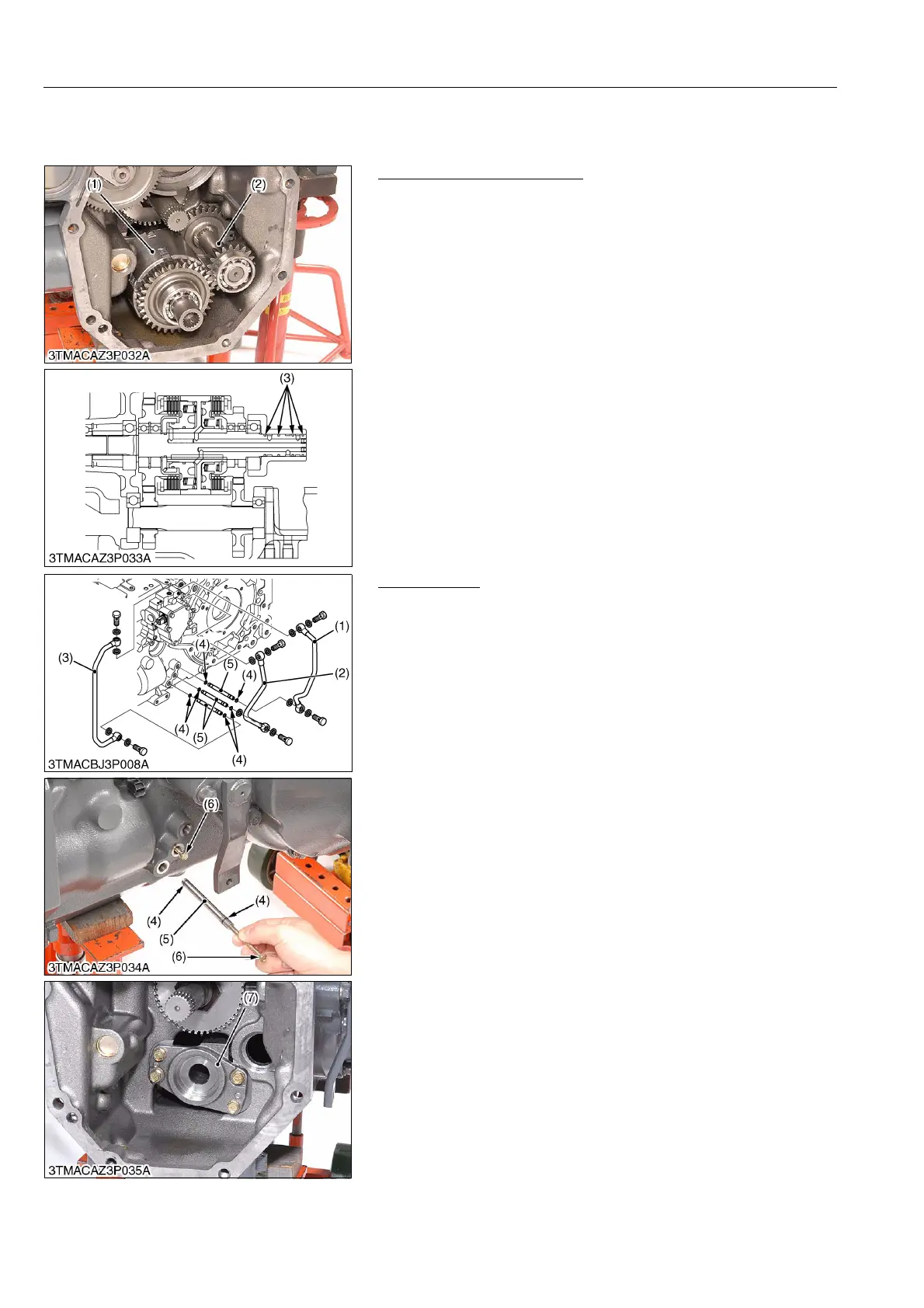

[8] 4WD / Bi-SPEED TURN CLUTCH
(1) Removing 4WD / Bi-speed Turn Clutch
4WD / Bi-speed Turn Clutch
1. Draw out the 4WD / Bi-speed turn clutch (1) and Bi-speed turn
gear and shaft assembly (2).
(When reassembling)
• Replace the seal rings (3) with new one.
• Apply grease to the seal rings (3) when assembling.
9Y1210236TRS0032US0
Clutch Holder
1. Draw out the three pipes (5) using the M6 × P1.0 screw (6) as
shown photo.
2. Remove the clutch holder (7).
(When reassembling)
• Apply oil to the O-rings (4).
9Y1210236TRS0033US0
(1) 4WD / Bi-speed Turn Clutch
(2) Bi-speed Turn Gear and Shaft
Assembly
(3) Seal Ring
(1) Hydraulic Pipe (2WD)
(2) Hydraulic Pipe (4WD)
(3) Hydraulic Pipe (Bi-speed Turn)
(4) O-ring
(5) Bi-speed Turn Pipe
(6) M6 × P1.0 Screw
(7) Clutch Holder
KiSC issued 07, 2013 A
