wsm M8540NARROW - 4 Disassembling and Assembling; Separating Clutch Housing from Transmission Case; Preparation

CLUTCH
M8540Narrow, M9540Narrow, WSM
N2-S4
4. DISASSEMBLING AND ASSEMBLING
[1] SEPARATING CLUTCH HOUSING FROM TRANSMISSION CASE
(1) Preparation

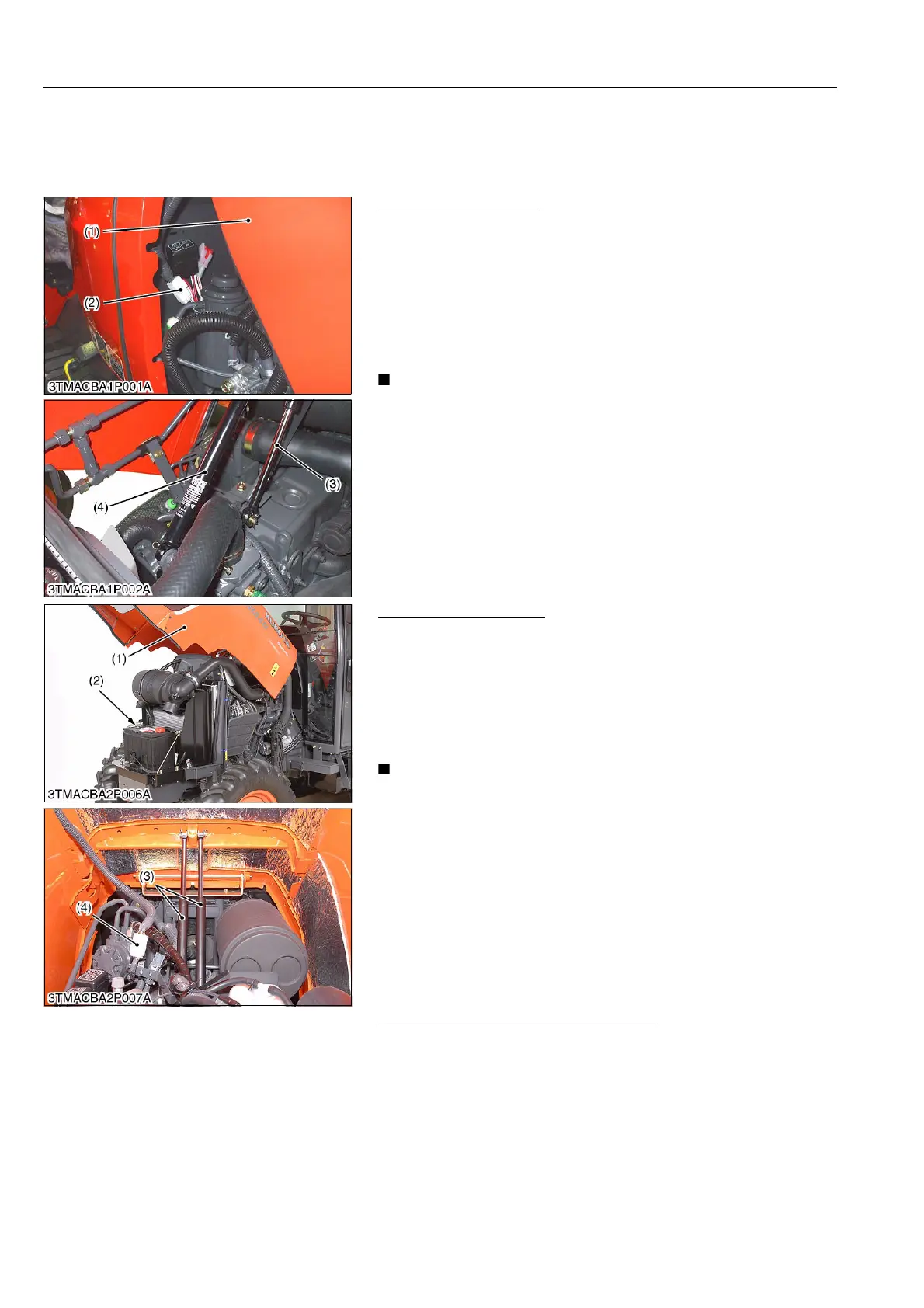

Bonnet (ROPS Model)
1. Open the bonnet (1) and disconnect the battery negative
terminal.
2. Disconnect the connector (2) for head lights.
3. Disconnect the damper (3) and (4).
4. Remove the bonnet (1).
(When reassembling)
• Be sure to assemble the damper (3) and (4) to the original
position and direction.
IMPORTANT
• When disconnecting the battery cables, disconnect the
grounding cable first. When connecting, positive cable
first.
9Y1210236CLS0004US0
Bonnet (CABIN Model)
1. Open the bonnet (1) and disconnect the battery negative
terminal (2).
2. Disconnect the connector (4) for head lights.
3. Disconnect the dampers (3).
4. Remove the bonnet (1).
(When reassembling)
• Be sure to assemble the dampers (3) to the original direction.
IMPORTANT
• When disconnecting the battery cables, disconnect the
grounding cable first. When connecting, positive cable
first.
9Y1210236CLS0005US0
Draining Fuel and Transmission Fluid
1. Refer to "3. CHECK AND MAINTENANCE" and "2.
LUBRICANTS, FUEL AND COOLANT" at "NG. GENERAL"
section.
9Y1210236CLS0006US0
(1) Bonnet
(2) Connector
(3) Damper (Shorter)
(4) Damper (Longer)
(1) Bonnet
(2) Battery Negative Terminal
(3) Damper
(4) Connector
KiSC issued 07, 2013 A
