wsm M8540NARROW - Transmission Case

TRANSMISSION
M8540Narrow, M9540Narrow, WSM
N3-S21
[7] TRANSMISSION CASE

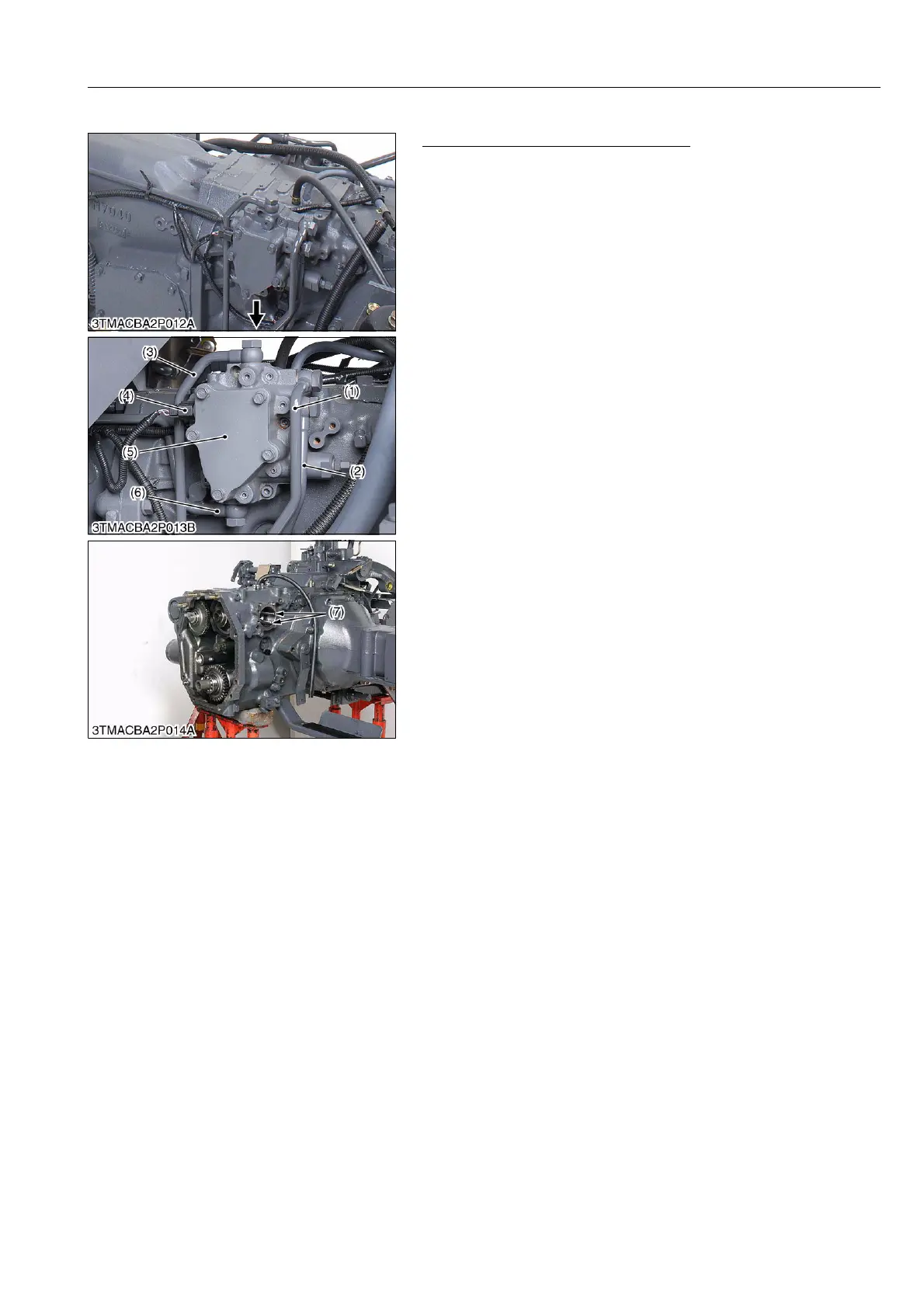

Removing Solenoid Valve Assembly
1. Prepare a can for hydraulic pipes.
2. Remove the hydraulic pipe (2WD) (1).
3. Remove the hydraulic pipe (4WD) (2).
4. Remove the hydraulic pipe (Bi-speed turn) (3).
5. Remove the hydraulic pipe (Delivery) (6).
6. Remove the solenoid valve assembly (5).
(When reassembling)
• Apply transmission fluid to hydraulic pipes (PTO) (7).
• Remove the two hydraulic pipes from the PTO clutch holder.
• Insert both the hydraulic pipes into the solenoid valve assembly
holes.
• Replace the hydraulic pipes with new one.
9Y1210236TRS0031US0
(1) Hydraulic Pipe (2WD)
(2) Hydraulic Pipe (4WD)
(3) Hydraulic Pipe (Bi-speed Turn)
(4) Connector
(5) Solenoid Valve Assembly
(6) Hydraulic Pipe (Delivery)
(7) Hydraulic Pipe (PTO)
KiSC issued 07, 2013 A
