TRANSMISSION
M8540Narrow, M9540Narrow, WSM
N3-S11

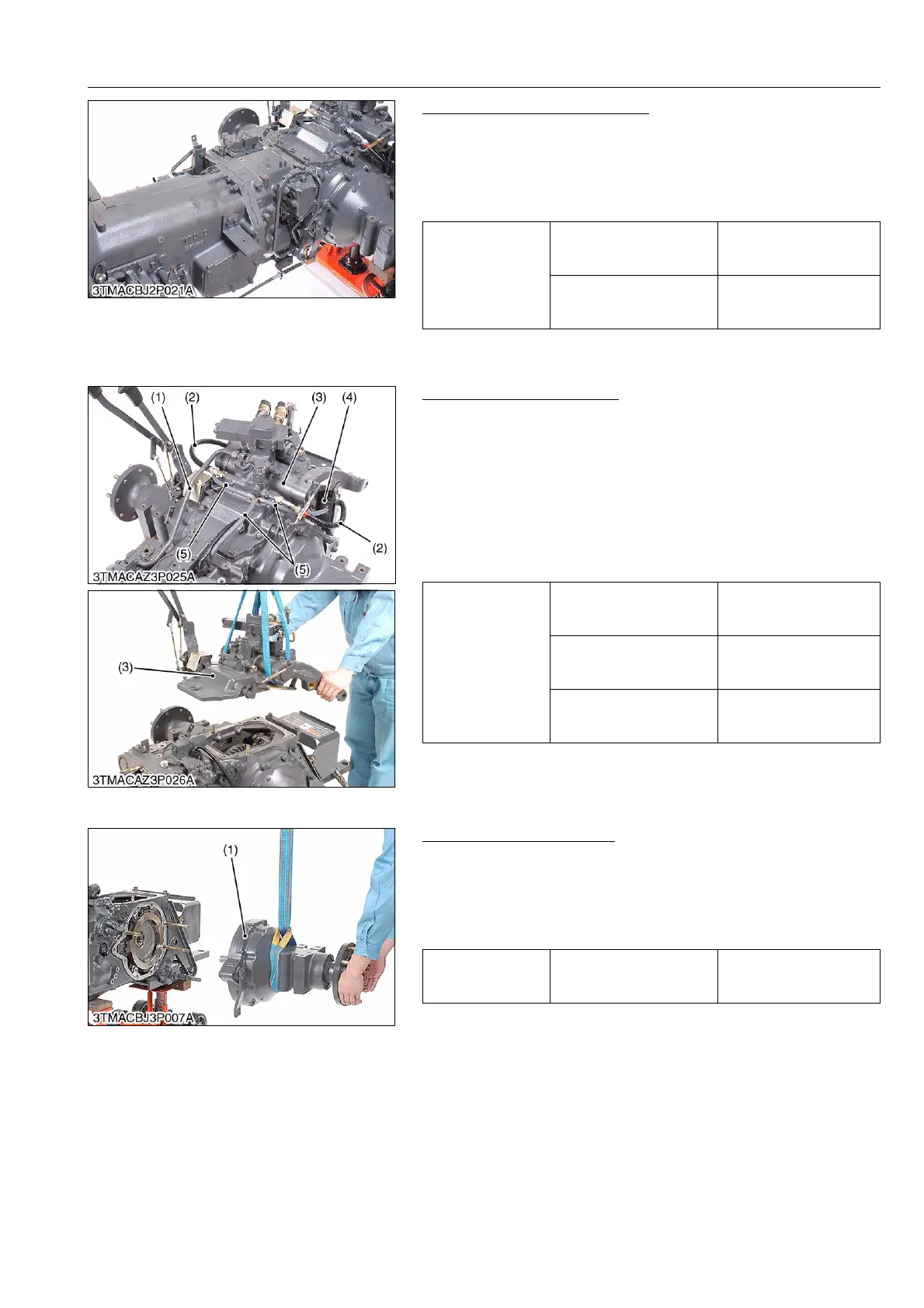

Separating Transmission Case
1. Remove the transmission case mounting screws and nuts.
2. Separate the transmission case from the clutch housing.
(When reassembling)
• Apply liquid gasket (Three Bond 1206C or equivalent) to joint
face of transmission case and clutch housing case.
9Y1210236TRS0014US0
(2) Transmission Case
Removing Hydraulic Block
1. Remove the 3-point hitch delivery pipe (1).
2. Disconnect the cylinder hoses (2) and return hoses (5).
3. Remove the hydraulic cylinders (4).
4. Remove the 3-point hitch hydraulic block mounting screws and
nut.
5. Remove the 3-point hitch hydraulic block (3).
(When reassembling)
• Apply liquid gaskets (Three Bond 1206C or equivalent) to joint
face.
9Y1210236TRS0015US0
Removing Rear Axle Case
1. Remove the rear axle case mounting screws and nuts.
2. Remove the rear axle case assembly (1).
(When reassembling)
• Apply liquid gaskets (Three Bond 1206C or equivalent) to joint
face.
9Y1210236TRS0016US0
Tightening torque
Transmission case and
clutch housing mounting
screw (M10, 9T)
60.8 to 70.5 N·m
6.2 to 7.2 kgf·m
44.9 to 52.1 lbf·ft
Transmission case and
clutch housing mounting
screw, nut (M14, 9T)
166.7 to 196.1 N·m
17.0 to 20.0 kgf·m
123.0 to 144.6 lbf·ft
Tightening torque
3-point hitch delivery pipe
retaining nut
107.9 to 117.7 N·m
11.0 to 12.0 kgf·m
79.6 to 86.8 lbf·ft
Cylinder hose retaining nut
34.3 to 48.1 N·m
3.5 to 4.9 kgf·m
25.3 to 35.4 lbf·ft
3-point hitch hydraulic
block mounting screw
166.7 to 196.1 N·m
17.0 to 20.0 kgf·m
123.0 to 144.6 lbf·ft
(1) 3-point Hitch Delivery Pipe
(2) Cylinder Hose
(3) 3-point Hitch Cylinder Block
(4) Hydraulic Cylinder
(5) Return Hose
Tightening torque
Rear axle case mounting
screw and nut
166.7 to 196.1 N·m
17.0 to 20.0 kgf·m
123.0 to 144.6 lbf·ft
(1) Rear Axle Case Assembly
To Next Page
