wsm M8540NARROW - Page 293

CABIN
M8540Narrow, M9540Narrow, WSM
N10-S15

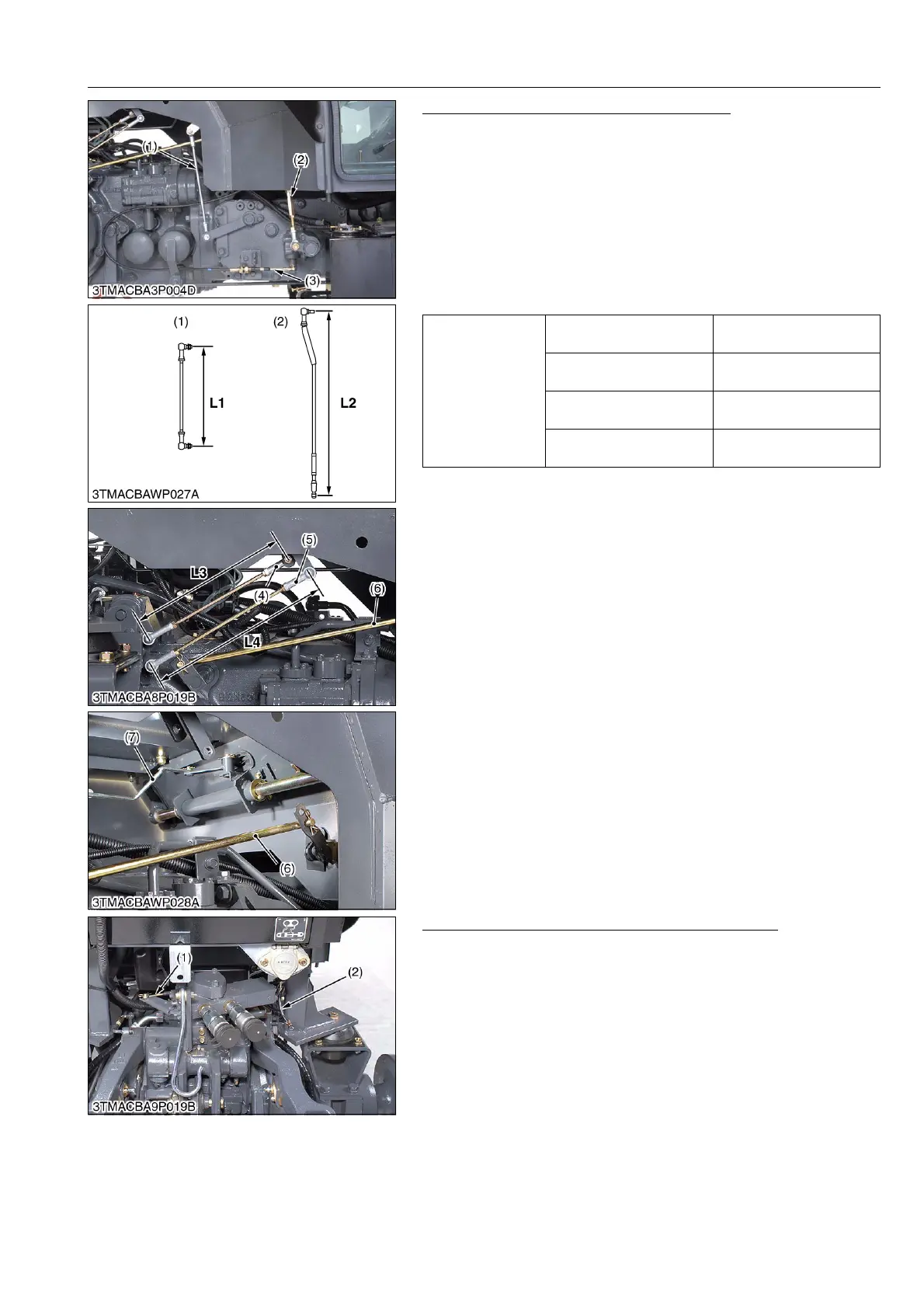

Removing Control Rods and Brake Hoses
1. Remove the main shift rod (2) and select wire (3).
2. Remove the Hi-Lo rod (1).
3. Remove the position control rod (4) and draft control rod (5).
4. Remove the lowering speed adjusting rod (7).
5. Remove the differential rod (6).
6. Remove the brake hoses for both side.
(When reassembling)
• Check the shift condition for main speed change and Hi-Lo shift.
• Be sure to bleed the air from hydraulic brake system. (Refer to
the "N5. BRAKE" section.)
9Y1210236CAS0027US0
Auxiliary Control Valve Cable and Ground Cable
1. Remove the auxiliary control valve cable (1).
2. Disconnect the ground harness (2).
9Y1210236CAS0028US0
Reference
Hi-Lo rod length "L1"
300 mm
11.8 in.
Main shift rod length "L2"
655 mm
25.8 in.
Position control rod length
"L3"
262 mm
10.3 in.
Draft control rod length
"L4"
235 mm
9.25 in.
(1) Hi-Lo Rod
(2) Main Shift Rod
(3) Select Wire
(4) Position Control Rod
(5) Draft Control Rod
(6) Differential Rod
(7) Lowering Speed Adjusting Rod
(1) Auxiliary Control Valve Cable (2) Ground Harness
KiSC issued 07, 2013 A
