CABIN
M8540Narrow, M9540Narrow, WSM
N10-S16

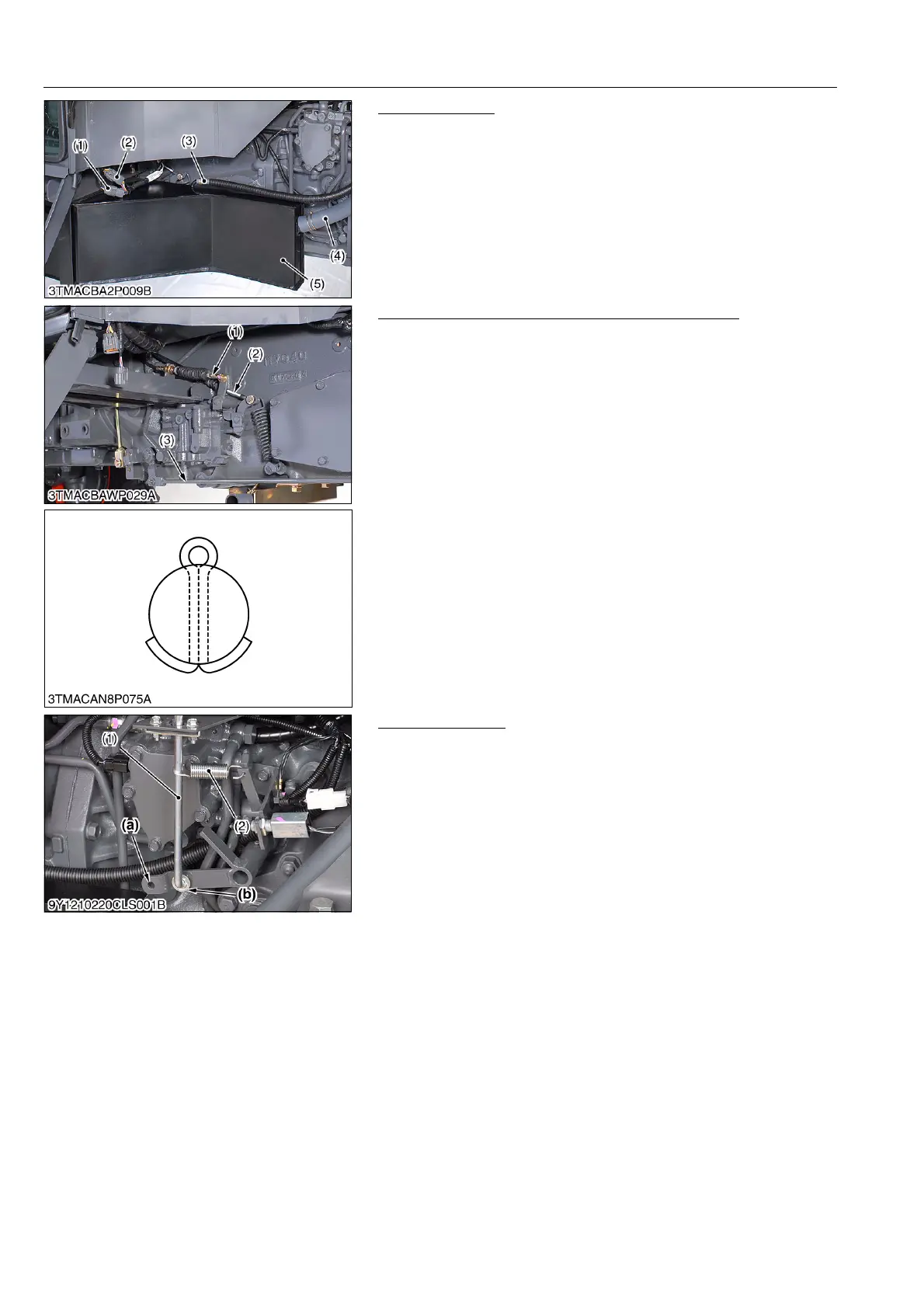

Fuel Tank (L.H.)
1. Remove the fuel hose (3) and (4) from the fuel tank (5).
2. Remove the fuel tank connecting hose at bottom of the fuel tank
(5).
3. Remove the fuel tank (5).
4. Disconnect the harness connector (1) and (2).
9Y1210236CAS0029US0
Brake Rod (L.H.), Shuttle Cable and Clutch Cable
1. Remove the shuttle cable (1) and clutch cable (2) from the
shuttle valve.
2. Remove the brake rod L.H. (3).
(When reassembling)
• Replace the cotter pins with the new one. Divide the cotter pins
as shown in this figure.
9Y1210236CAS0030US0
Ground PTO Rod
1. Remove the ground PTO rod (1) and spring (2).
(When reassembling)
• Be sure to assemble the ground PTO rod (1) to the hole (a).
9Y1210236CAS0045US0
(1) Connector
(2) Connector
(3) Fuel Hose
(4) Fuel Hose
(5) Fuel Tank
(1) Shuttle Cable
(2) Clutch Cable
(3) Brake Rod (L.H.)
(1) Ground PTO Rod
(2) Spring
(a) Hole to CABIN Model
(b) Hole to ROPS Model
KiSC issued 07, 2013 A
