CLUTCH
M8540Narrow, M9540Narrow, WSM
N2-S11

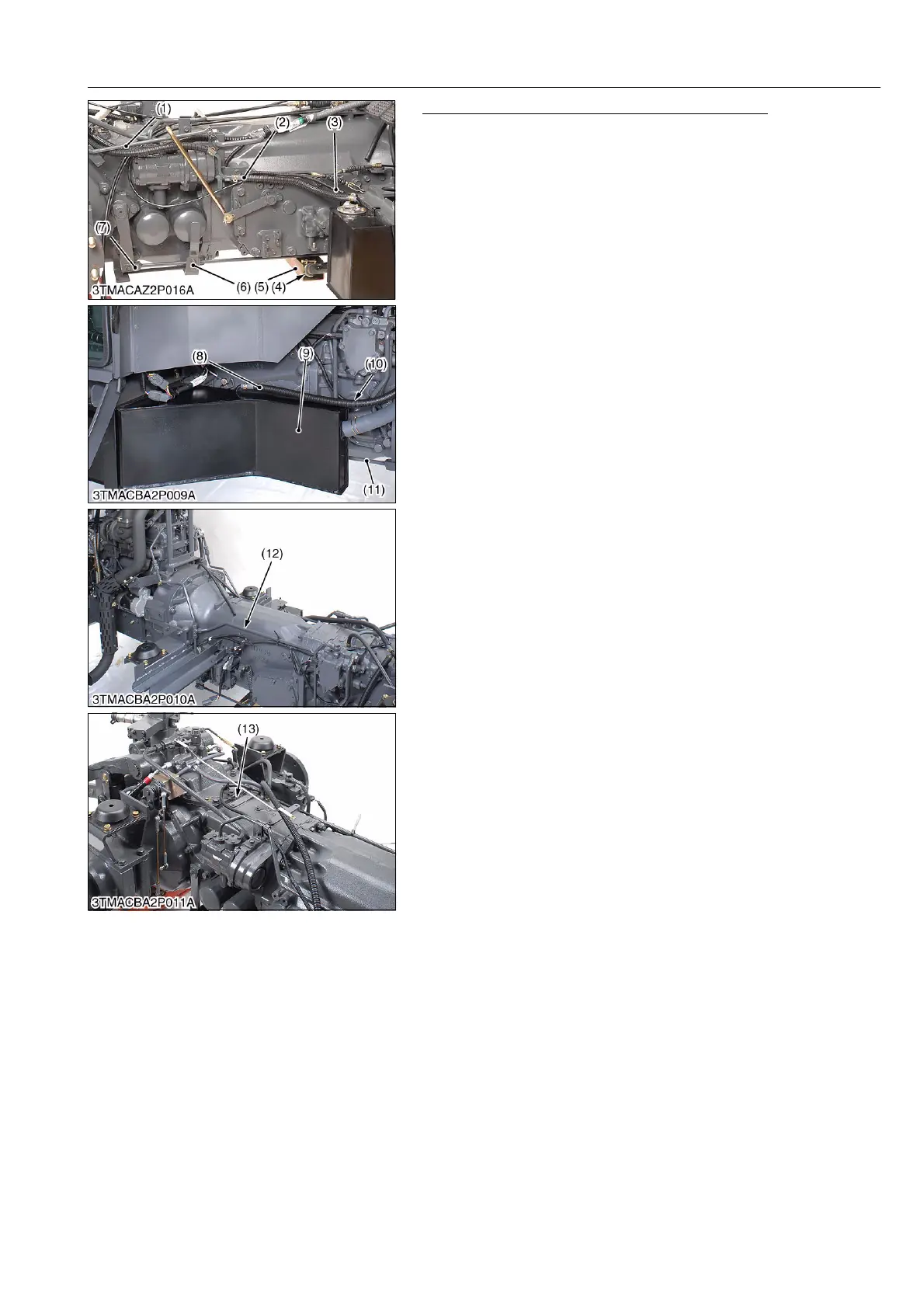

Fuel Tank L.H., Brake Rod and Hydraulic Pipes
1. Remove the fuel hose cover (5) and disconnect the fuel hose (4)
from the lower fuel tank R.H..
2. Remove the protector (6), parking brake rod R.H. (7) and rear
differential lock rod (1).
3. Disconnect the fuel breather hose (2) and fuel sensor connector
(3).
4. Disconnect the fuel breather hose (8) and remove the fuel tank
L.H. (9).
5. Remove the PTO wire and disconnect the traveling speed
sensor connector (10).
6. Remove the parking brake rod L.H. (11).
7. Remove the hydraulic pipe (solenoid valve assembly) (12).
(When reassembling)
• Be sure to assemble the ground harness (13).
9Y1210236CLS0029US0
(1) Rear Differential Lock Rod
(2) Fuel Breather Hose
(3) Connector (Fuel Sensor)
(4) Fuel Hose
(5) Fuel Hose Cover
(6) Protector
(7) Parking Brake Rod R.H.
(8) Fuel Breather Hose
(9) Lower Fuel Tank L.H.
(10) Connector
(Traveling Speed Sensor)
(11) Parking Brake Rod L.H.
(12) Hydraulic Pipe
(Solenoid Valve Assembly)
(13) Ground Harness
KiSC issued 07, 2013 A
