Replacing Light Bulb
CAUTION
• Be careful not to drop the bulb, hit anything against the
lamp, apply excess force, and get the lamp scratched. If
broken, glass may cause injury. Pay more attention to
halogen lamps in particular, which have high pressure
inside.
• Before replacing the lamp, be sure to turn off the light and
wait until the bulb cools down, otherwise, you may get
burned.
Q Head lights
1. While pushing the right and left lock buttons (2), pull and remove
the electrical connector (1).
2. Remove the rubber boot (3).
3. Remove the clamping fixture (4) and take out the bulb (5).
4. Replace with a new bulb and reinstall the head lamp assembly
in the reverse order.
Q Other lights
1. Detach the lens and replace the bulb.
IMPORTANT
• Be sure to use a new bulb of the specified wattage.
• Never touch the bulb surface (glass) with bare hands.
Fingerprints, for example, may break the bulb.
9Y1210236GEG0064US0
Replacing Fuse
1. Refer to "3. CHECKING AND ADJUSTING" at "N9.
ELECTRICAL SYSTEM" section in this manual.
9Y1210236GEG0065US0
ROPS Model CABIN Model
Light Capacity Capacity
Head light 12 V, 55 / 60 W (H4)
Turn signal / hazard light (Front) 12 V, 21 W
Turn signal / hazard light (Rear) 12 V, 21 W
Brake stop light / Tail light 12 V, 21 / 5 W
Front work light 12 V, 21 W
Work light (for outer roof) – 12 V, 55 W
Dome light (room lamp) – 12 V, 5 W
Front position light 12 V, 10 W
Number plate light 12 V, 10 W

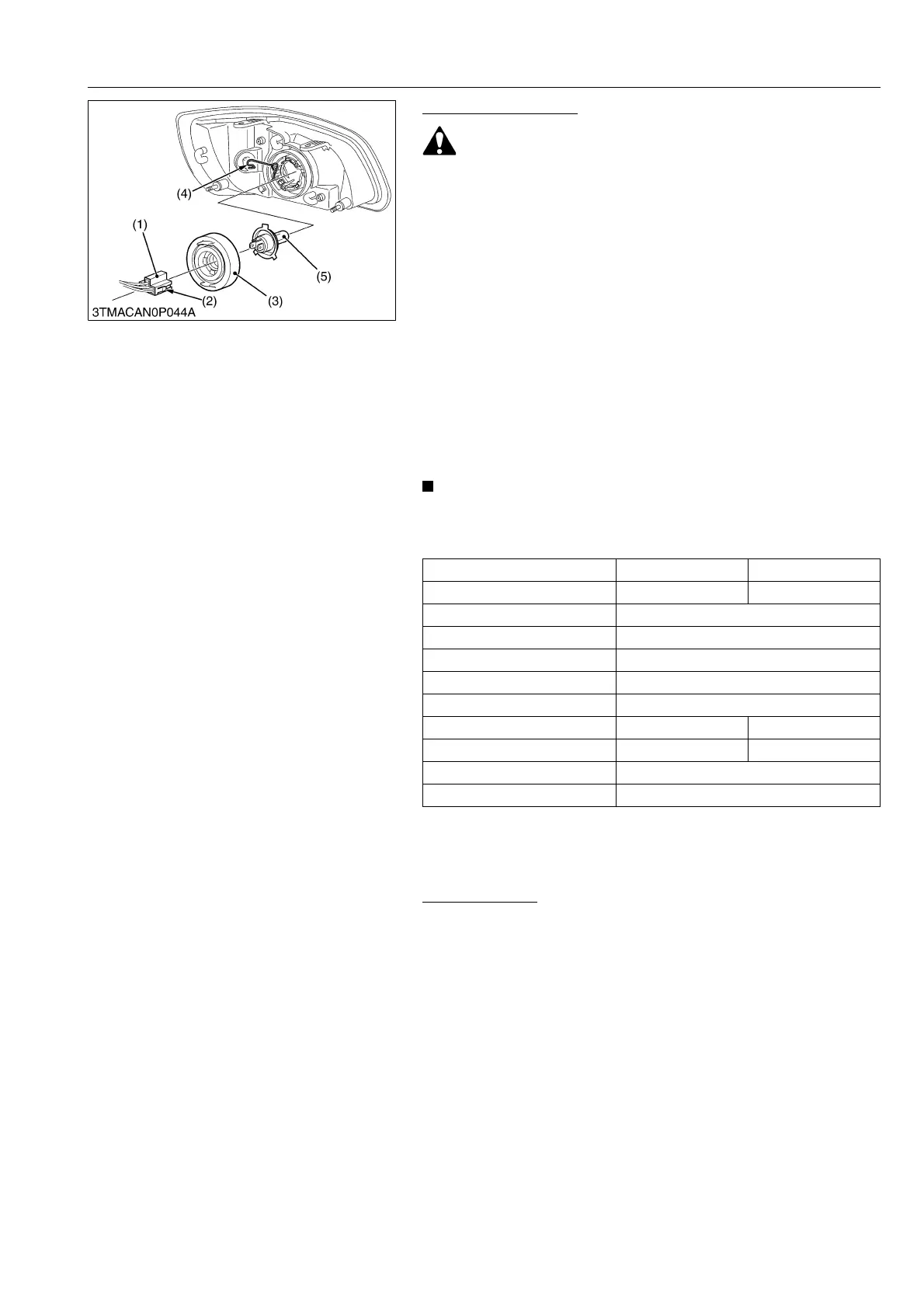

(1) Electrical Connector
(2) Lock Button
(3) Rubber Boot
(4) Clamping Fixture
(5) Bulb
