TRANSMISSION
M8540Narrow, M9540Narrow, WSM
N3-S28
Differential Gear Assembly
1. Remove the differential bearing support (1), noting the number
of shims (2).
2. Take out the differential gear assembly (4) from transmission
case.
(When reassembling)
• Be sure to fix the O-rings (3).
• Align the oil passage "a" as shown photo.
• Be sure to adjust the turning torque of spiral bevel pinion shaft
(refer to "6. SERVICING" in this section).
• Be sure to adjust the backlash and tooth contact between the
spiral bevel gear and spiral bevel pinion shaft (refer to "6.
SERVICING" in this section).
9Y1210236TRS0040US0
Tightening torque
Differential bearing support
mounting screw
48.1 to 55.8 N·m
4.9 to 5.7 kgf·m
35.4 to 41.2 lbf·ft

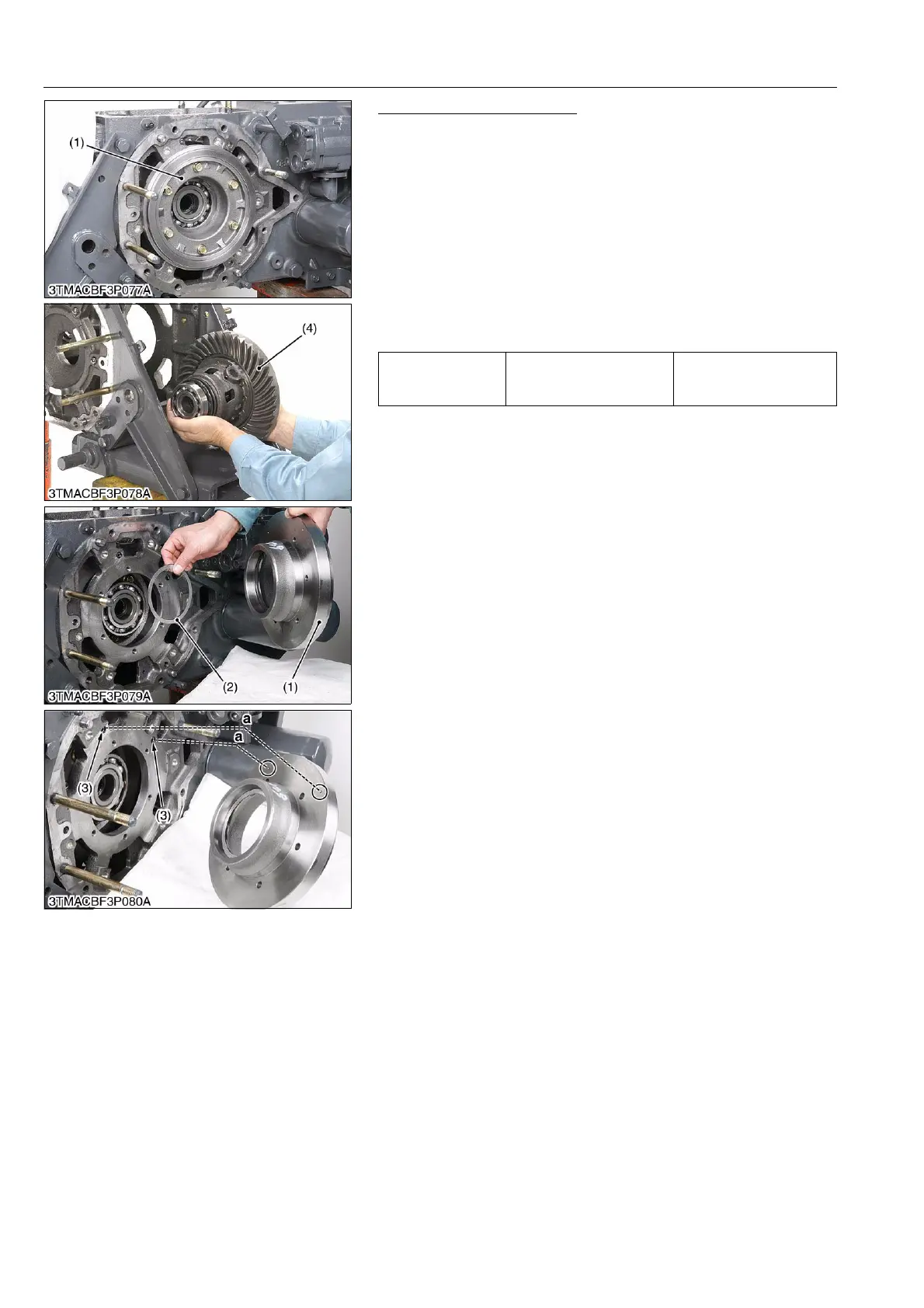

(1) Differential Support
(2) Shim
(3) O-ring
(4) Differential Gear Assembly
a: Oil Passage
