REAR AXLE
M8540Narrow, M9540Narrow, WSM
N4-S4
Rear ROPS and Rear Fuel Tank

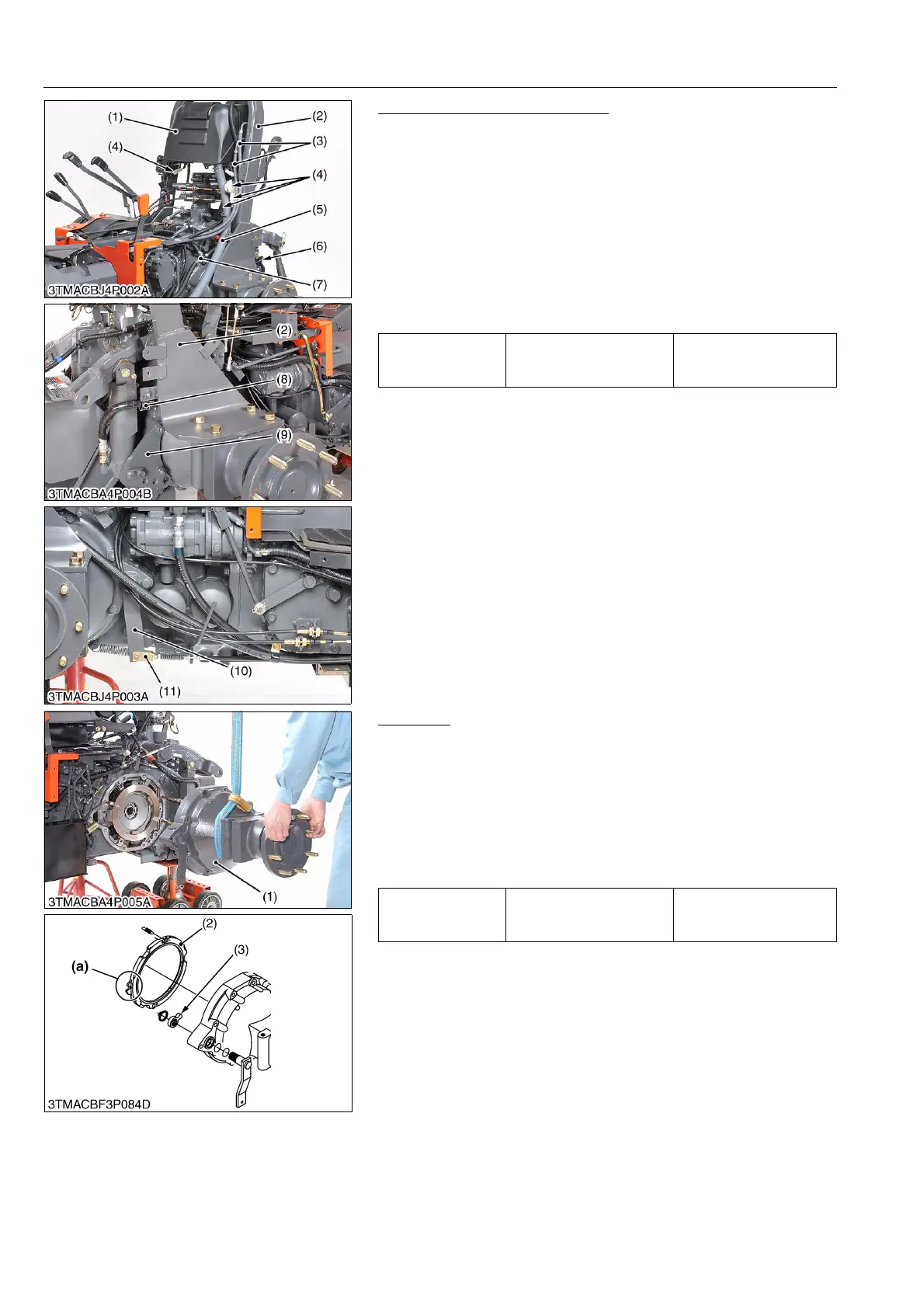

1. Disconnect the connectors (4).
2. Disconnect the fuel hose (5) from the lower / left fuel tank.
3. Disconnect the fuel breather hose (7) from the T-joint.
4. Disconnect the breather hoses (3).
5. Remove the cylinder hose clamp (6) and (8).
6. Remove the cylinder support (9).
7. Disconnect the parking brake cable (11) both side from the
parking lever (10).
8. Unscrew the rear ROPS mounting screws and remove the rear
ROPS (2) with upper fuel tank (1).
(When reassembling)
9Y1210236RAS0007US0
Rear Axle
1. Disconnect the brake pipe.
2. Remove the rear axle case mounting screws and nuts.
3. Remove the rear axle assembly (1).
(When reassembling)
• Apply liquid gaskets (Three Bond 1206C or equivalent) to joint
face.
• Bleed the air from hydraulic brake system.
• Align the brake cam (3) and groove (a) of brake cam plate (2).
9Y1210236RAS0008US0
Tightening torque
Rear ROPS mounting
screw (M16, 9T)
260 to 304 N·m
26.5 to 31.0 kgf·m
192 to 224 lbf·ft
(1) Upper Fuel Tank
(2) Rear ROPS
(3) Breather Hose
(4) Connector
(5) Fuel Hose
(6) Clamp
(7) Fuel Breather Hose
(8) Clamp
(8) Trailer Coupler
(9) Cylinder Support
(10) Brake Lever
(11) Parking Brake Cable
Tightening torque
Rear axle case mounting
screw and nut
166 to 196 N·m
17.0 to 20.0 kgf·m
123 to 144 lbf·ft
(1) Rear Axle Case Assembly
(2) Brake Cam Plate
(3) Brake Cam
(a) Groove
To Next Page
