FRONT AXLE
M8540Narrow, M9540Narrow, WSM
N6-S6
Bevel Gear Case and Front Wheel Case Bushing

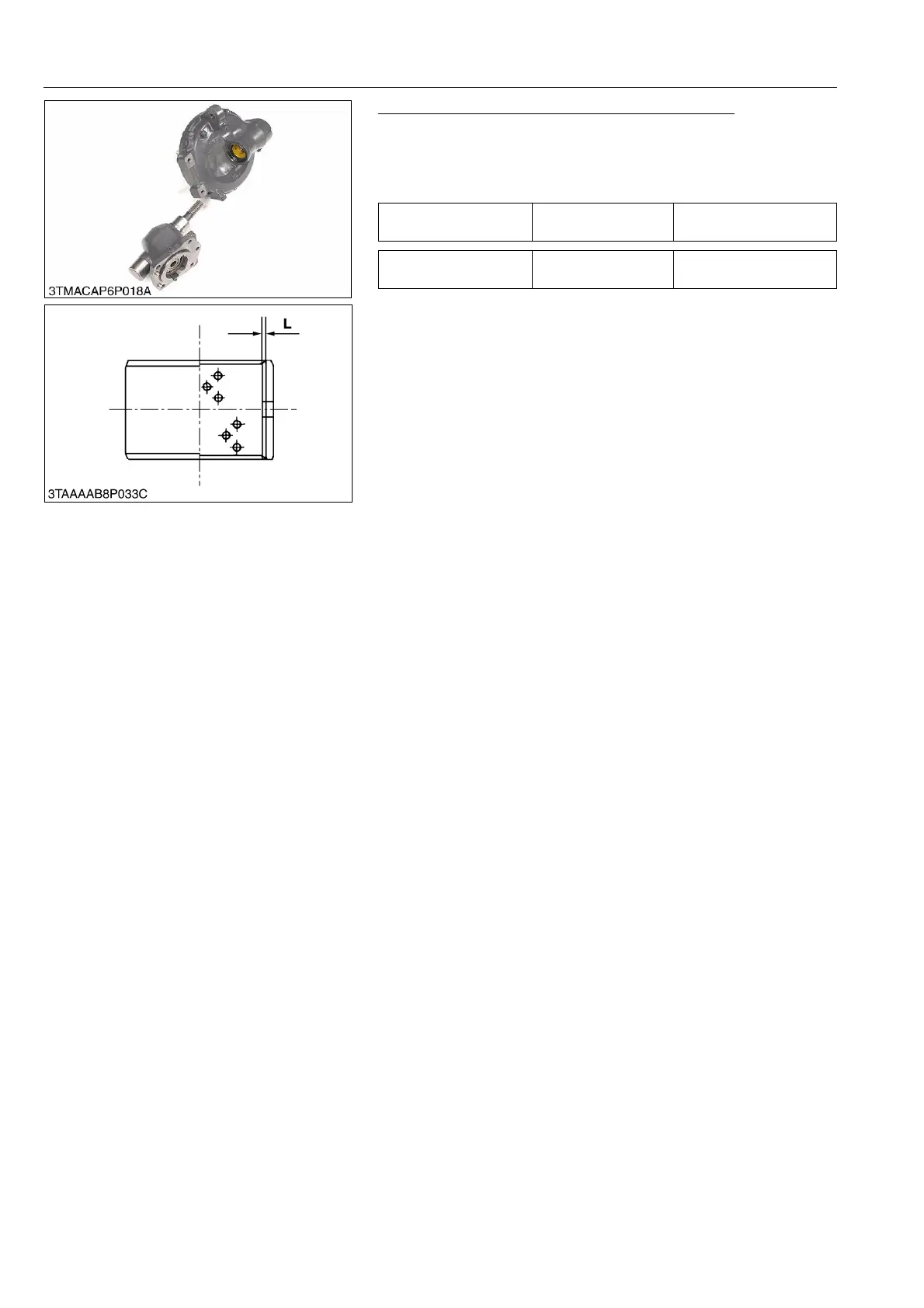

1. Visually inspect the DX bushings for signs of wear or damage.
(The DX bushing tends to show concentrated wear.)
2. If the DX bushing is worn beyond the alloy portion "L", replace
it.
9Y1210236FAS0009US0
Front wheel case
bushing
Alloy thickness "L"
0.57 mm
0.0224 in.
Bevel gear case O.D. Factory specification
54.97 to 55.00 mm
2.1642 to 2.1653 in.
