CABIN
M8540Narrow, M9540Narrow, WSM
N10-S22

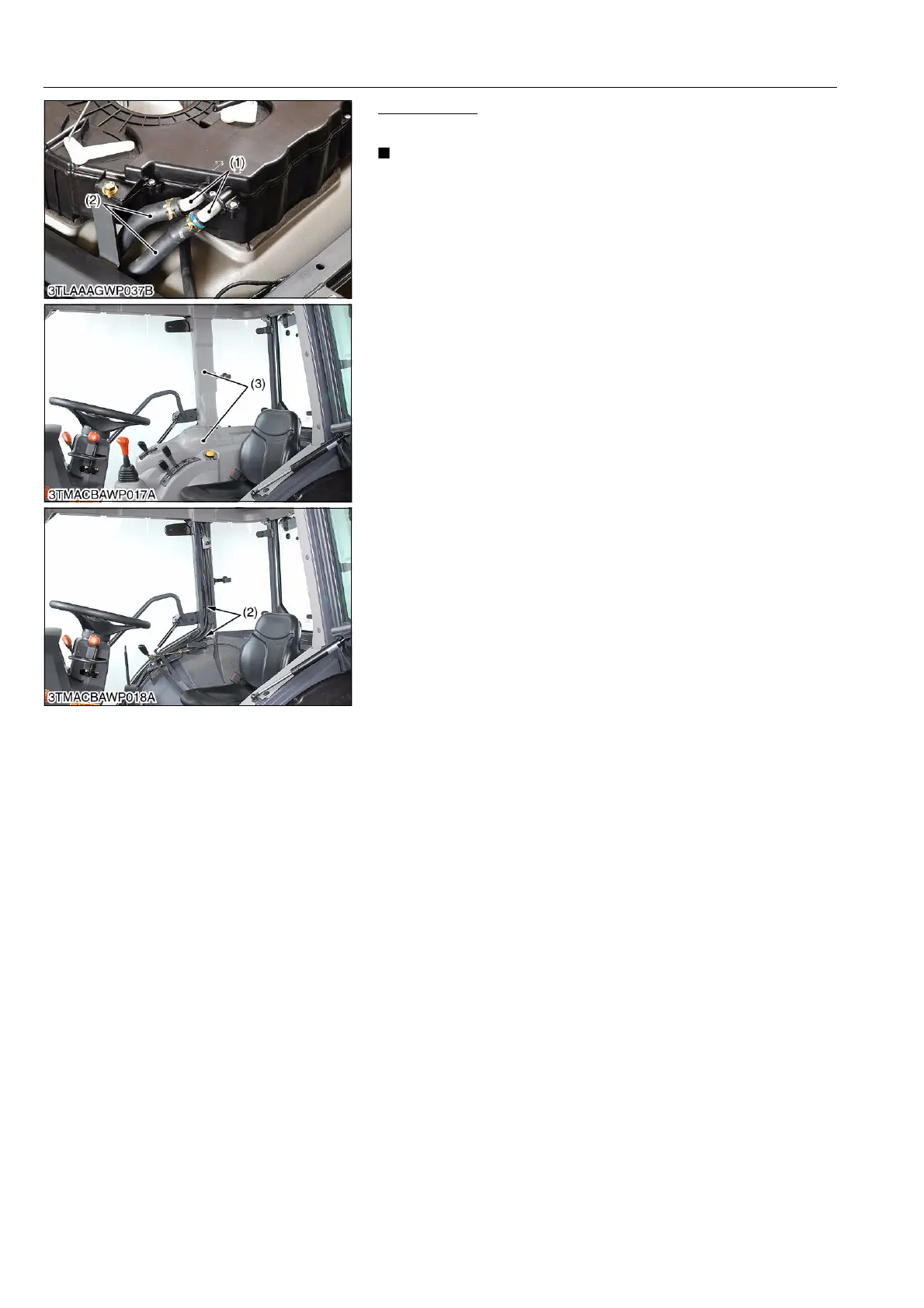

Heater Hoses
1. Remove the outer roof.
• Before disconnecting the heater hoses (2), put the parting
marks on the hoses for marking proper reconnecting.
2. Disconnect the heater hoses (2) from the hose pipes (1).
3. Remove the inner covers (3).
4. Pull out the heater hoses (2) from the bottom of the cabin.
5. Take out the heater hoses (2).
(When reassembling)
• Connect the heater hoses at their original positions.
• In assembling the heater hose (2) to the pipe (1), connect the
heater hose with identification mark (white paint) to upper side
of the hose pipe.
• When connecting the heater hose with A/C unit, hose should be
put into the A/C unit pipe more than 30 mm (1.2 in.).
9Y1210236CAS0042US0
(1) Heater Pipe
(2) Heater Hose
(3) Inner Cover
