03/2003
4-27
8850/ 510DP
REP 8.1
Repairs and Adjustments
2. (Figure 5): Reinstall the Lower Sheet Feed Assembly on the Printer.

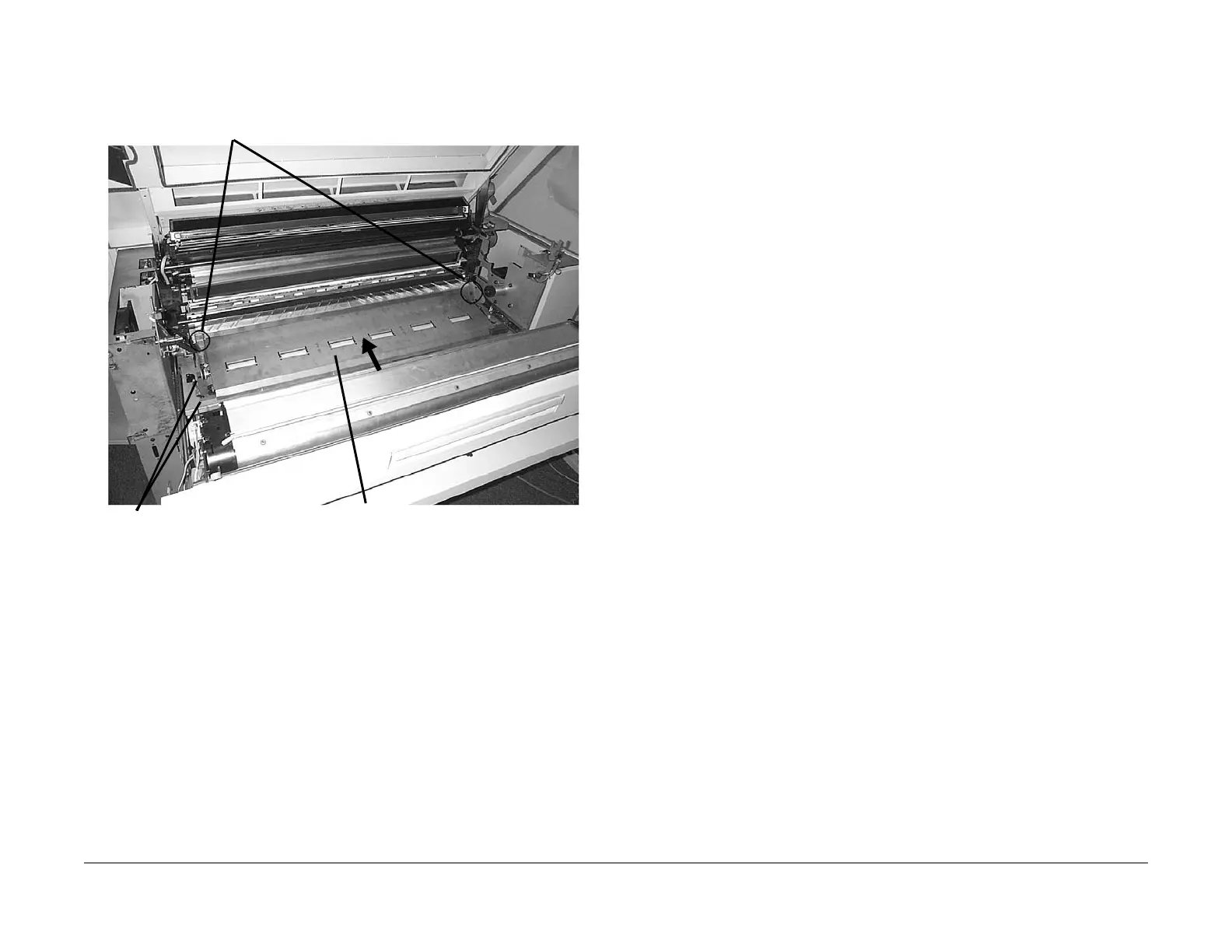

Figure 5 Reinstalling the Lower Sheet Feed Assembly
1
Place Lower Sheet Feed Assembly
on printer floor plate and slide it
inward
2
Grasp the plastic baffles and nudge them back and
forth slightly until they seat in their mount holes
3
Reinstall the four screws that fasten the
Lower Sheet Feed Assembly to the
Printer (two screws per side)
To Next Page
