Xerox 8850 Service Manual

03/2003
4-49
8850/ 510DP
REP 8.16
Repairs and Adjustments

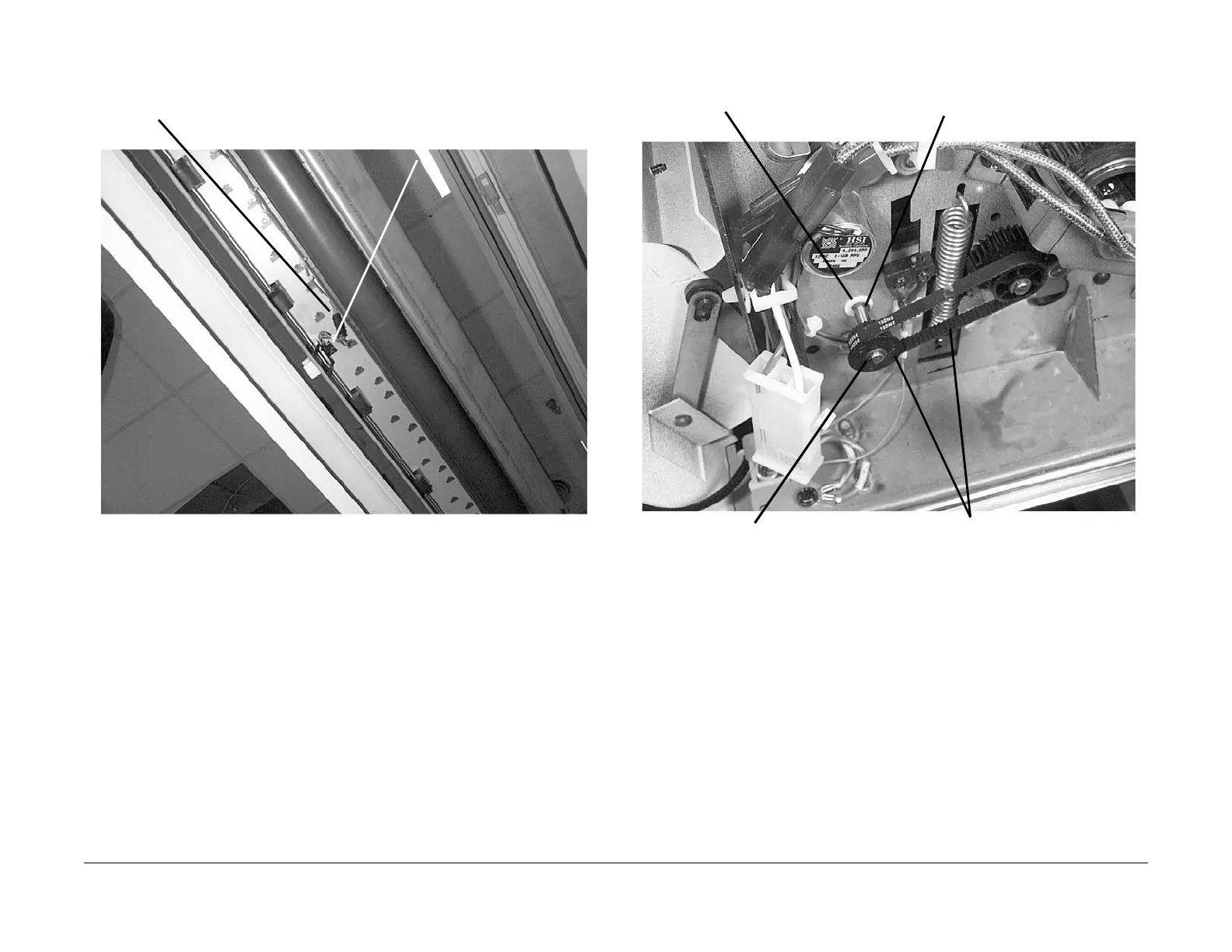

4. (Figure 3): Remove the Fuser Exit Sensor from beneath the Fuser Module.
Figure 3 Removing the Fuser Exit Sensor
5. (Figure 4): Remove the following Printer right side hardware.
Figure 4 Removing the Printer Right Side Hardware
1
Disconnect P/J Q1P1
2
Remove the Fuser Exit Sen-
sor by removing the mount
screw
1
Remove the E-ring
2
Remove the Exit Roll Drive
Gear and Drive Belt
4
Remove the plastic bearing
3
Remove the inner E-ring
